Installation
IN-LINE/REMOTE BLOWER
1 Insert the electrical supply (Romex
®
) from the in-line or
remote blower through the opening on the downdraft
and secure using an approved cord strain relief.
2 Connect hot to brown, neutral to blue, and ground to
green. Refer to the illustrations below.

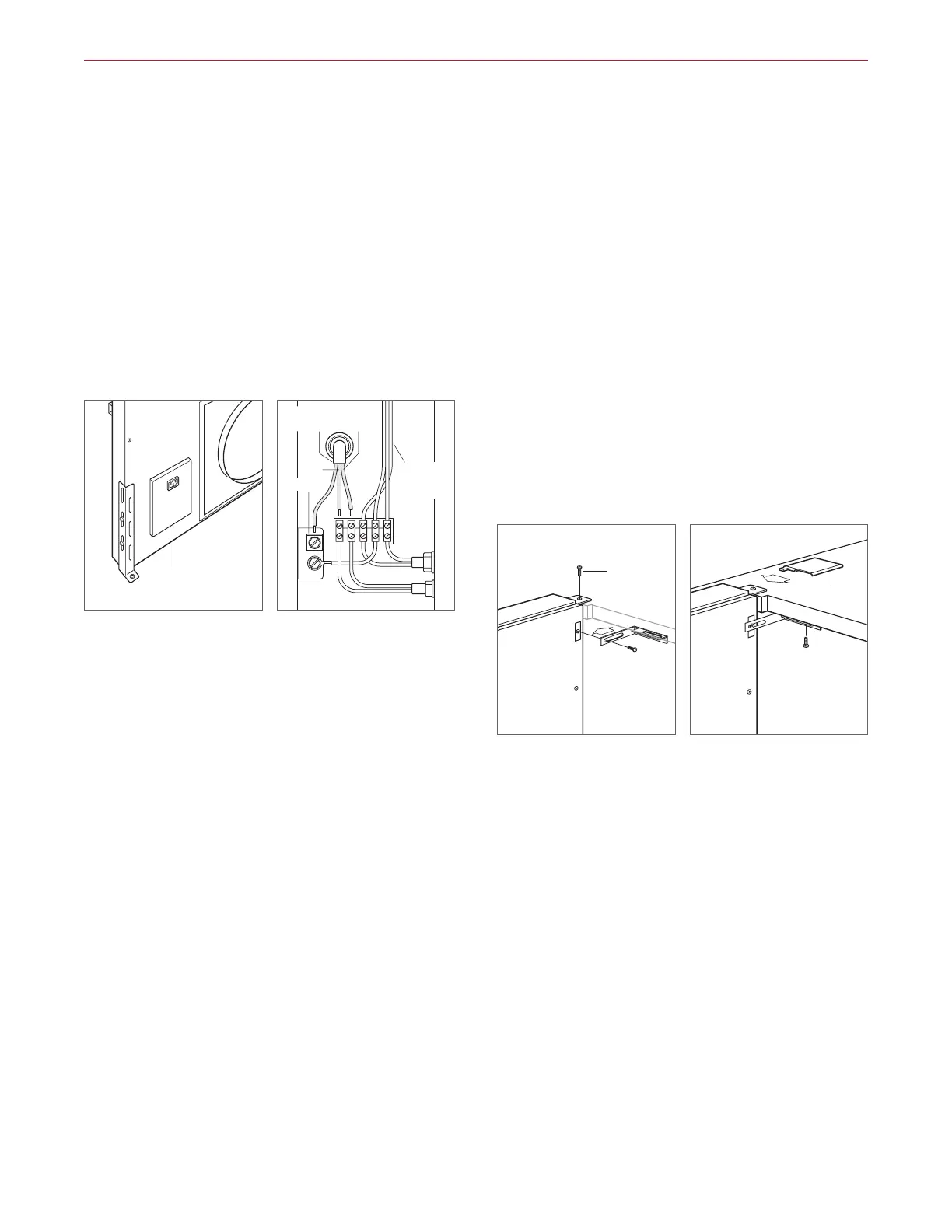

WIRING
COVER
BLUE
BROWN
NEUTRAL
GROUND
FROM
BLOWER
HOT
TO POWER
CORD
RECEPTACLE
Wiring location
In-line/remote blower wiring
COUNTERTOP MOUNTING
Place the downdraft in the opening, then secure the
bottom brackets to the cabinet base using the wood
screws provided. Once the brackets are secure, tighten
the existing lower bracket screws. Refer to the illustration
below.
Secure the top mounting brackets to the countertop using
the wood screws provided. For solid surface countertops,
silicone may be used but is not provided.
Once the top is secure, install the undercounter brackets
using the screws provided, then install the side covers.
Refer to the illustration below.
MOUNTING
SCREW
COVER
Countertop mounting
Cover installation
