WOLF PRO VENTILATION
Installation

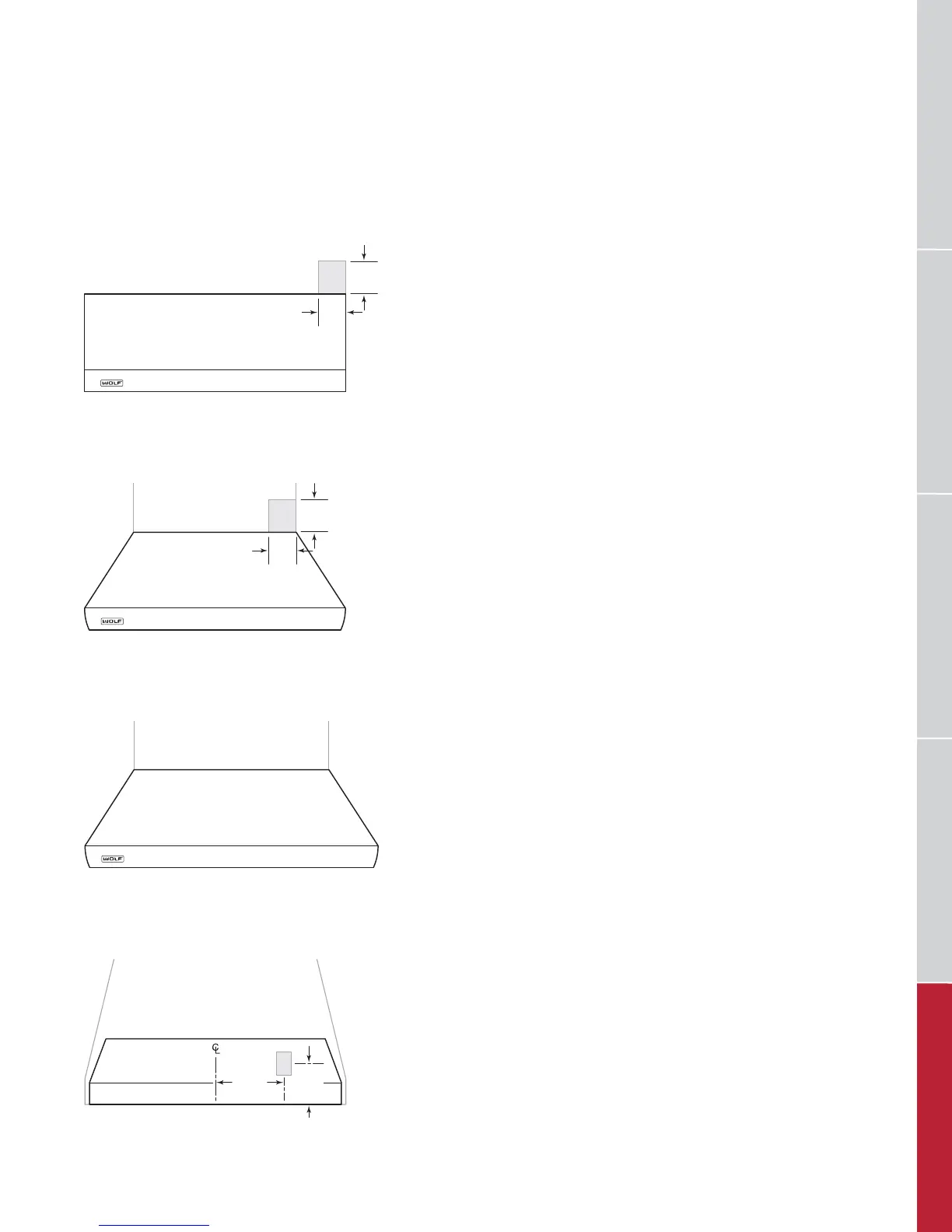

LOW-PROFILE, 24" AND 27" DEEP WALL HOODS
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS / COFFEE SYSTEMS
E
6"
(152)
5"
(127)
30" (762) TO 36" (914) BOTTOM EDGE TO COUNTERTOP
WALL CHIMNEY HOOD
E
6"
(152)
5"
(127)
30" (762) TO 36" (914) BOTTOM EDGE TO COUNTERTOP
ISLAND HOOD
ELECTRICAL LOCATION
THROUGH TOP OF HOOD
30" (762) TO 36" (914) BOTTOM EDGE TO COUNTERTOP
HOOD LINER
DECORATIVE HOOD
E
7
5
/8"
(
194
)
12
1
/2"
(318)
30" (762) TO 36" (914) BOTTOM EDGE TO COUNTERTOP
