Gas and Multi-Function Cooktops

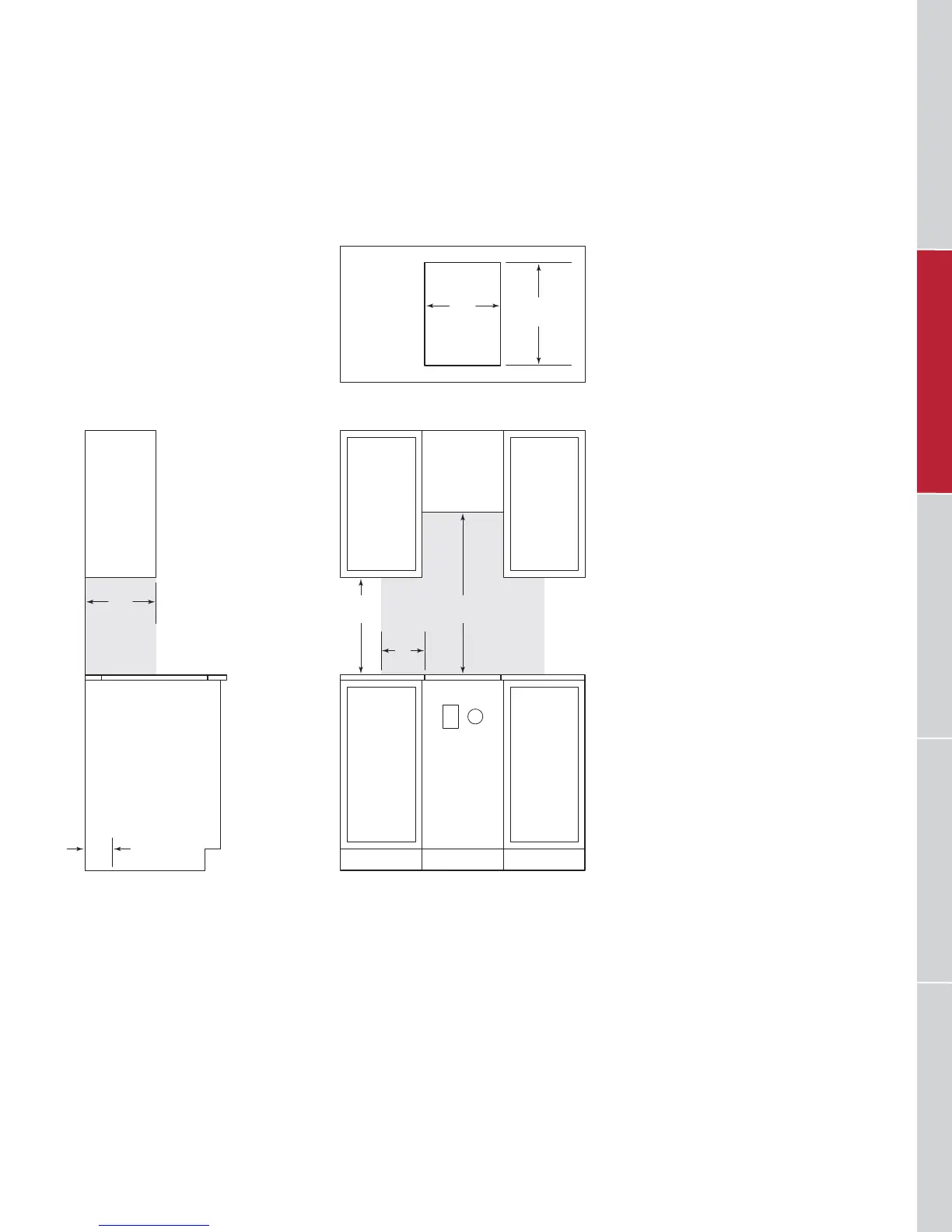

STANDARD INSTALLATION
WOLF INTEGRATED MODULES
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS / COFFEE SYSTEMS
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
13"
(330)
18"
(457)
7"
(178)
E G
5"
(127)
ELECTRICAL
AND GAS FLOOR
LOCATION
30"
(762)
19
1
/2"
(495)
2
1
/2" (64) min
2
1
/2" (64) min
14"
(356)
