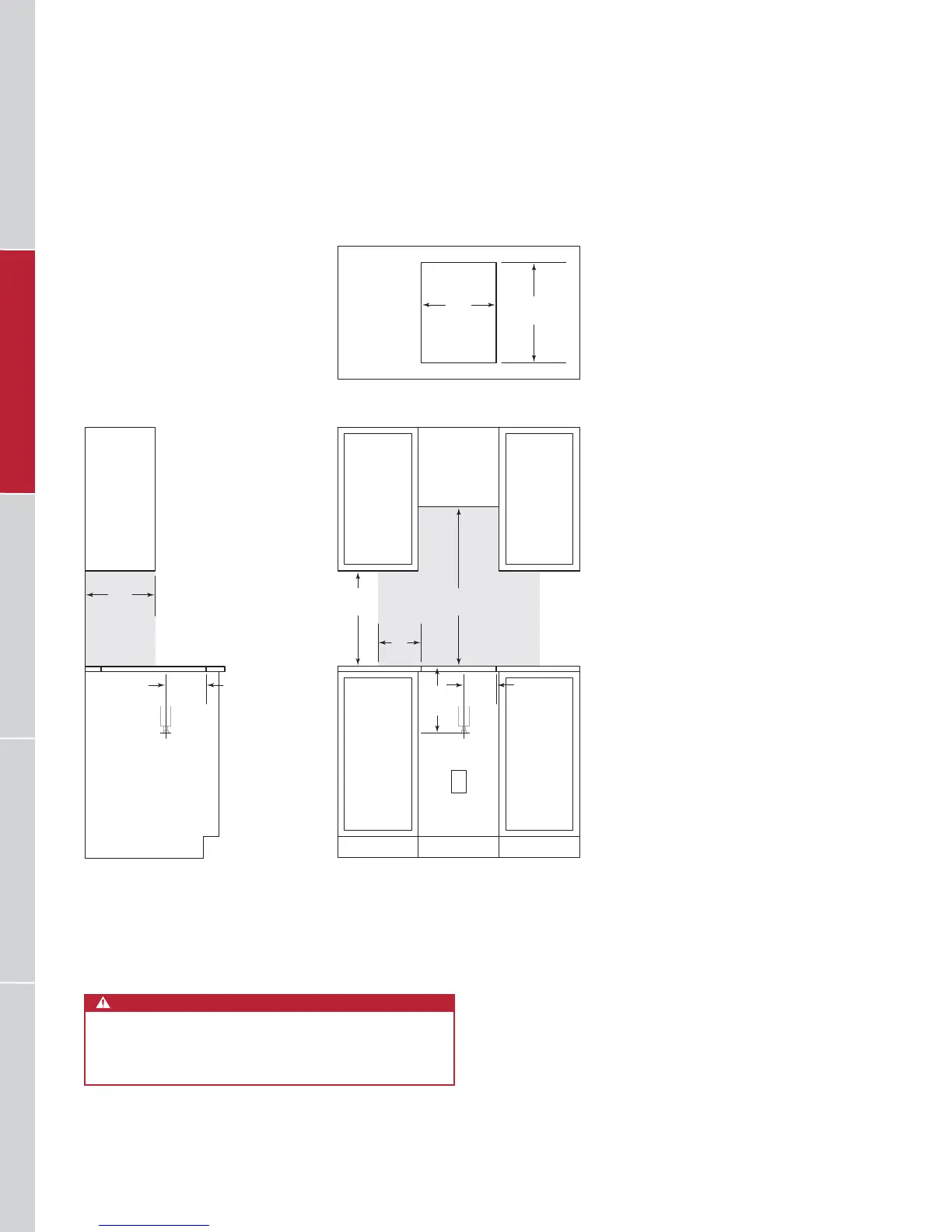

FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
13"
(330)
18"
(457)
7"
(178)
E
30"
(762)
7
5
/8"
(194)
6"
(152)
12
3
/8"
(314)
DRAIN
OUTLET
19
1
/2"
(495)
2
1
/2" (64) min
2
1
/2" (64) min
14"
(356)
Fryer Module
STANDARD INSTALLATION
WOLF INTEGRATED MODULES
WARNING
The fryer module must be installed at least 15" (381)
from any open-ame cooking device or a steamer
module.
