Anti-Tip Bracket
To prevent the range from tipping forward, the anti-tip
bracket must be installed. To ensure the anti-tip bolt
engages the bracket, refer to the illustration below to
determine proper placement.
INSTALL BRACKET
Drywall application: After properly positioning the anti-tip
bracket, mark the holes, then use a Phillips screwdriver
or a low rpm power drill to drive the wall anchor into the
surface of the wallboard until flush. Pre-drill the holes if
needed. For hard wallboard or double-board construc-
tion, use a ⁄" drill bit. For solid plaster, use a ⁄" drill bit.
Use the provided #8 screws and flat washers to fasten the
bracket to the wall.
Wood floor application: After properly positioning the anti-
tip bracket, drill ⁄"
(5) pilot holes through the floor. Use
the provided #12 screws and flat washers to secure the
bracket to the floor.
Concrete floor application: After properly positioning
the anti-tip bracket, drill ⁄"
(10) holes into the concrete
a minimum of 1⁄"
(38) deep. Use the provided ⁄" wedge
anchors to secure the bracket to the floor.
ANTI-TIP BOLT ADJUSTMENT
Once the bracket is secure, adjust the anti-tip bolt so the
top of the washer is 1⁄" (38) to 1⁄" (48) from the floor.
Slide the range into the opening and verify the anti-tip bolt
is engaged. Refer to the illustration below.
ANTI-TIP
BRACKET
6
1
/4"
(159)

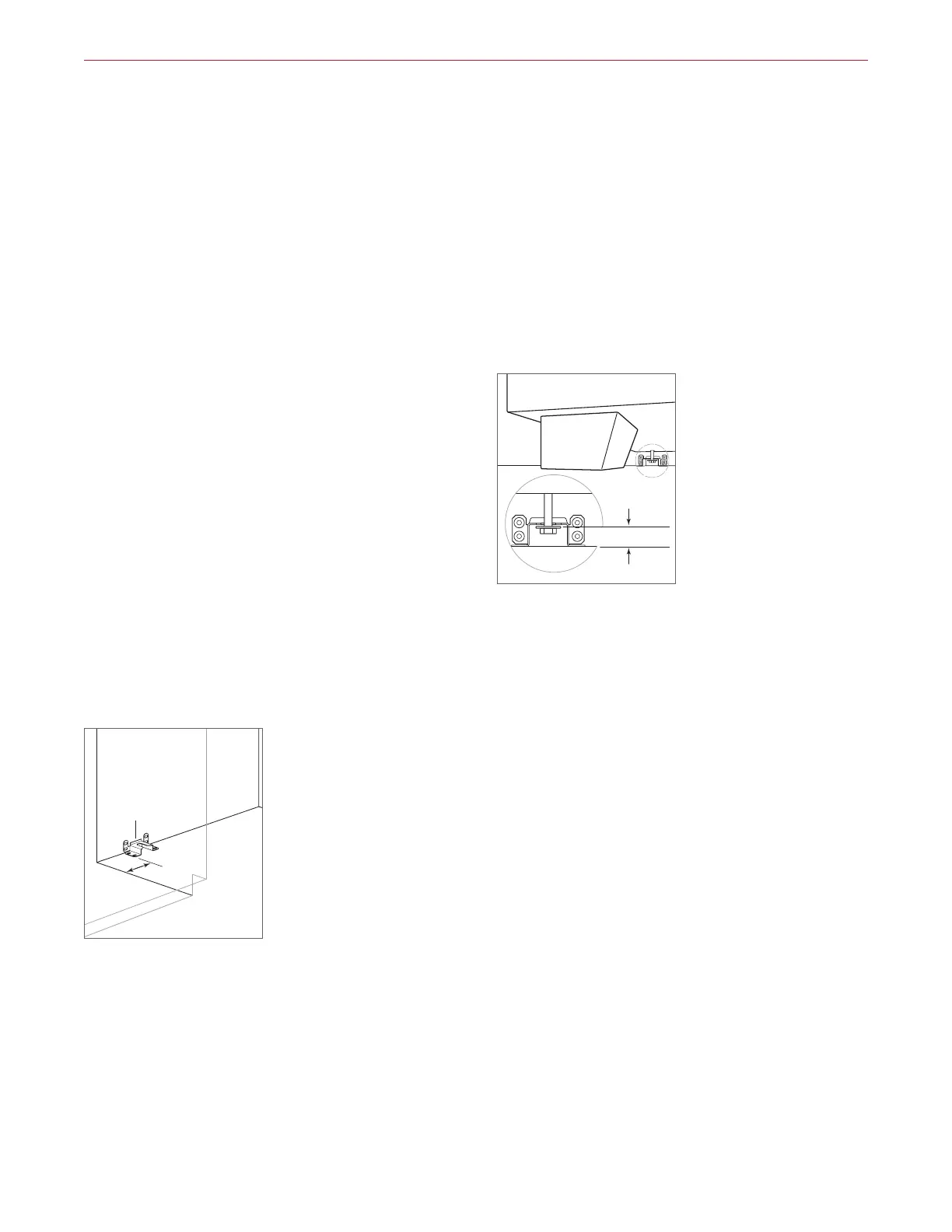

Anti-tip bracket location
1
1
/
2
"
(38)
–1
7
/
8
"
(48)
Anti-tip bolt engaged
Installation
