W O L F GA S C OOK TOP S
IN STA LL AT ION S P E C I F I C AT I O N S

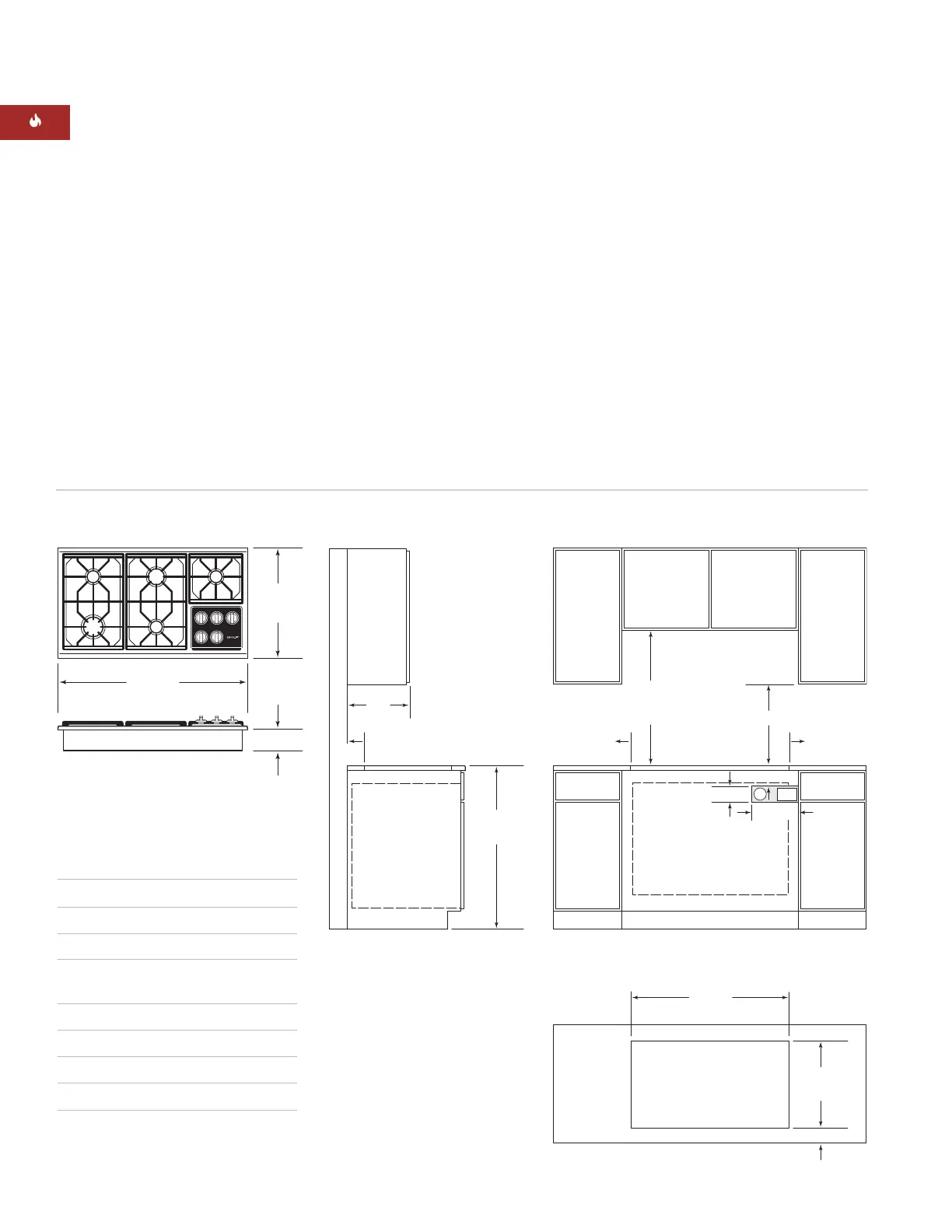

The illustrations below provide the overall
dimensions, countertop cut-out and installation
specifications for Model ICBCT36G.
IMPORTANT NOTE:
991 mm wide cabinets are
recommended for installation of Model
ICBCT36G.
A Wolf 914 mm built-in oven may be installed
below Model ICBCT36G. For this installation,
unless you are using cabinets deeper than 610
mm, it is recommended that the electrical and
gas supply be placed in the base cabinet to the
right of the oven. Refer to installation instruc-
tions provided with the built-in oven for addi-
tional specifications.
If the Model ICBCT36G is installed above
cabinets, the gas and electrical placement is not
critical. A grounded outlet needs to be placed
within 1.2 m of the right rear of the cooktop.
When a 914 mm built-in oven is installed below
Model ICBCT36G, it is recommended that the
rough opening for the oven be 197 mm from
the floor to ease the use of the oven door.
IMPORTANT NOTE:
When multiple cooktop
units are installed side by side, refer to the
countertop cut-out dimensions on page 11.
102 mm
E
G
457 mm min
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
914 mm OVEN OPENING
254 mm
89 mm
SEE COUNTERTOP
CUT-OUT BELOW
889 mm
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
489 mm
CUT-OUT
DEPTH
64 mm min
229 mm TO
COMBUSTIBLE
*
229 mm TO
COMBUSTIBLE
*
SIDE
CABINET
330 mm
m
ax
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Gas and electrical location applies only to installation with built-in oven.
64
mm*
Overall Dimensions
533 mm
OVERALL
DEPTH
914 mm
OVERALL WIDTH
102 mm
M O D E L I C B C T 3 6 G
D I M E N S I O N S
Overall Width 914 mm
Overall Height 102 mm
Overall Depth 533 mm
Recommended
Cabinet Width 991 mm
Minimum Cabinet Depth 578 mm
Minimum Height Clearance 102 mm
Cut-Out Width 889 mm
Cut-Out Depth 489 mm
Unit dimensions may vary to
±
3 mm.
I N S TA L L AT I O N S P E C I F I C AT I O N S – M O D E L I C B C T 3 6 G
