WOLF GAS RANGES
SPECIFICATIONS
1219 mm Gas Range
Overall Width 1219 mm
Overall Height
(to cooking surface) 940 mm
Overall Depth 721 mm
Large Oven —
Overall Interior Cap 125 L
Overall Interior Dim 610 mm x 473 mm
(W x H x D) x 432 mm
Usable Interior Dim 610 mm x 419 mm
(W x H x D) x 432 mm
Small Oven —
Overall Interior Cap 71 L
Overall Interior Dim 343 mm x 473 mm
(W x H x D) x 432 mm
Usable Interior Dim 343 mm x 419 mm
(W x H x D) x 432 mm
Opening Width 1226 mm
Electrical Supply 220-240 V AC, 50/60 Hz
15 amp dedicated
circuit
Power Cord 1.8 m 3-prong
Shipping Weight 295–340 kg
MODEL OPTIONS
1219 mm Gas Range
Six Surface Burners
Charbroiler IR486C
Griddle IR486G
Four Surface Burners
Charbroiler and
Griddle IR484CG
Natural gas models listed;
for LP gas add (-LP) to the
model number.
IMPORTANT NOTE: A
minimum 254 mm riser is
required when installing a gas
range with a charbroiler or
griddle against a combustible
surface.
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
914 mm min
FOR CHARBROILER
762 mm TO 914 mm
COUNTERTOP TO
BOTTOM OF
VENTILATION HOOD
VENTILATION HOOD
LOCATION OF GAS SUPPLY EXTENDS
76 mm ON FLOOR FROM BACK WALL
1226 mm
FINISHED ROUGH OPENING WIDTH
76
mm
ISLAND INSTALLATIONS: 305 mm MINIMUM CLEARANCE FROM BACK
OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP –
0 mm TO NON-COMBUSTIBLE MATERIALS
660 mm
G
127 mm
51
mm
305
mm
E
305
mm
140 mm
203
mm
914 mm
457 mm min
TO COUNTERTOP
940 mm
TO
COOKING
SURFACE
330 mm
max
152 mm min
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
1219 mm
OVERALL WIDTH
914 mm
940 mm
OVERALL
HEIGHT TO
COOKING
SURFACE
64 mm
622 mm
641 mm
LEGS AND CASTERS ALLOW
25 mm HEIGHT ADJUSTMENT
1102 mm
1187
mm
WITH
254 mm
RISER
1441
mm
WITH
508 mm
RISER
692 mm
235
mm
721 mm
OVERALL DEPTH
1060
mm
WITH
127 mm
RISER

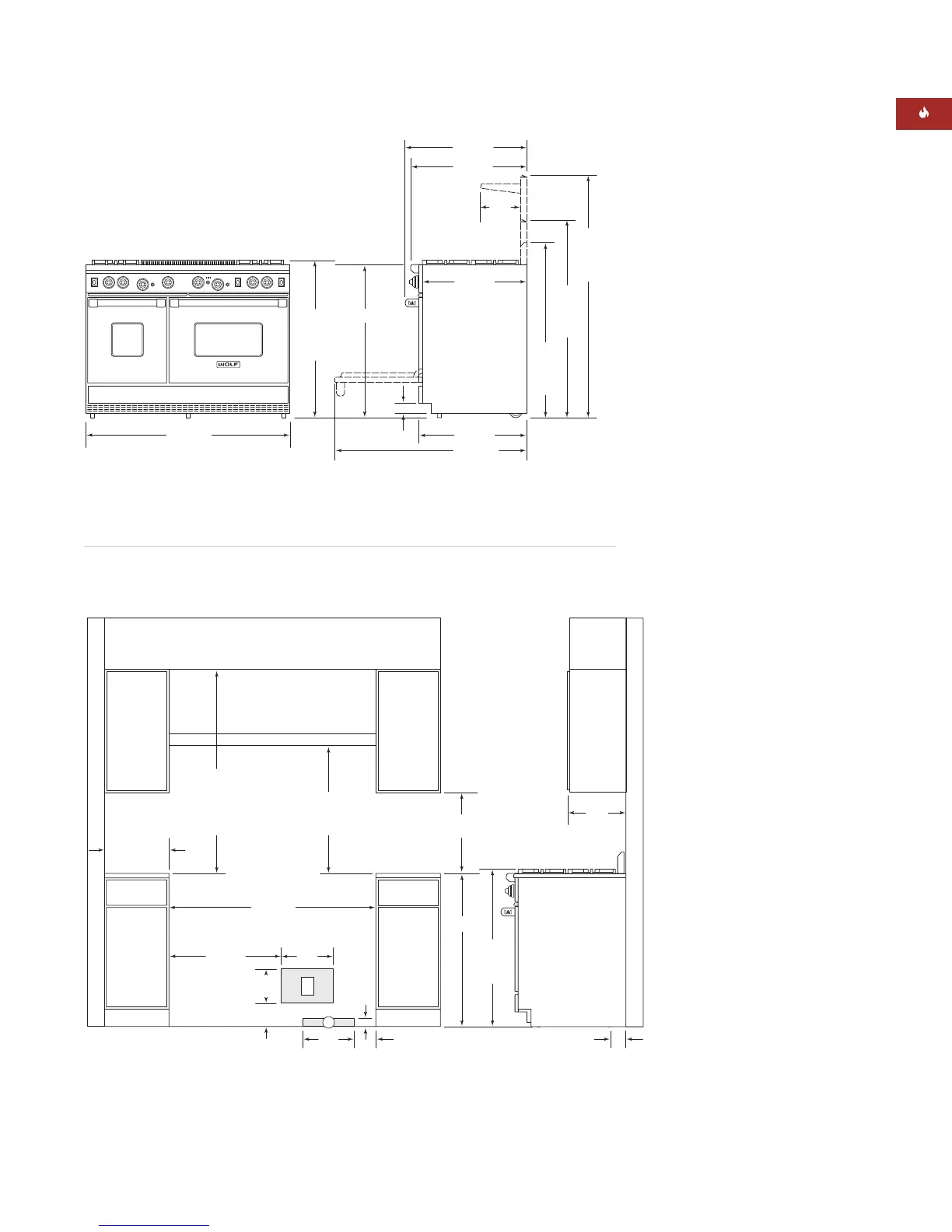

INSTALLATION SPECIFICATIONS
1219 mm Gas Range
OVERALL DIMENSIONS
1219 mm Gas Range
Unit dimensions may vary to ± 3 mm.
