8
BUILT-IN OVENS
127
mm
E
724 mm
OPENING WIDTH
102
mm
E
E
E
838 mm
RECOMMENDED CABINET WIDTH
762 mm min
1260 mm
OPENING
HEIGHT
610 mm min
OPENING DEPTH
1702 mm
typical
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
CABINETS DEEPER
THAN 610 mm
1270 mm
759 mm 610 mm
BEHIND FRAME
610 mm
OPEN OVEN DOOR
CONDUIT
CHANNEL
TOP VIEW
716 mm
711 mm
76 mm
527 mm
32 mm
48 mm
48 mm
RIGHT SIDE VIEW
1232 mm
INSIDE
SIDE TRIM

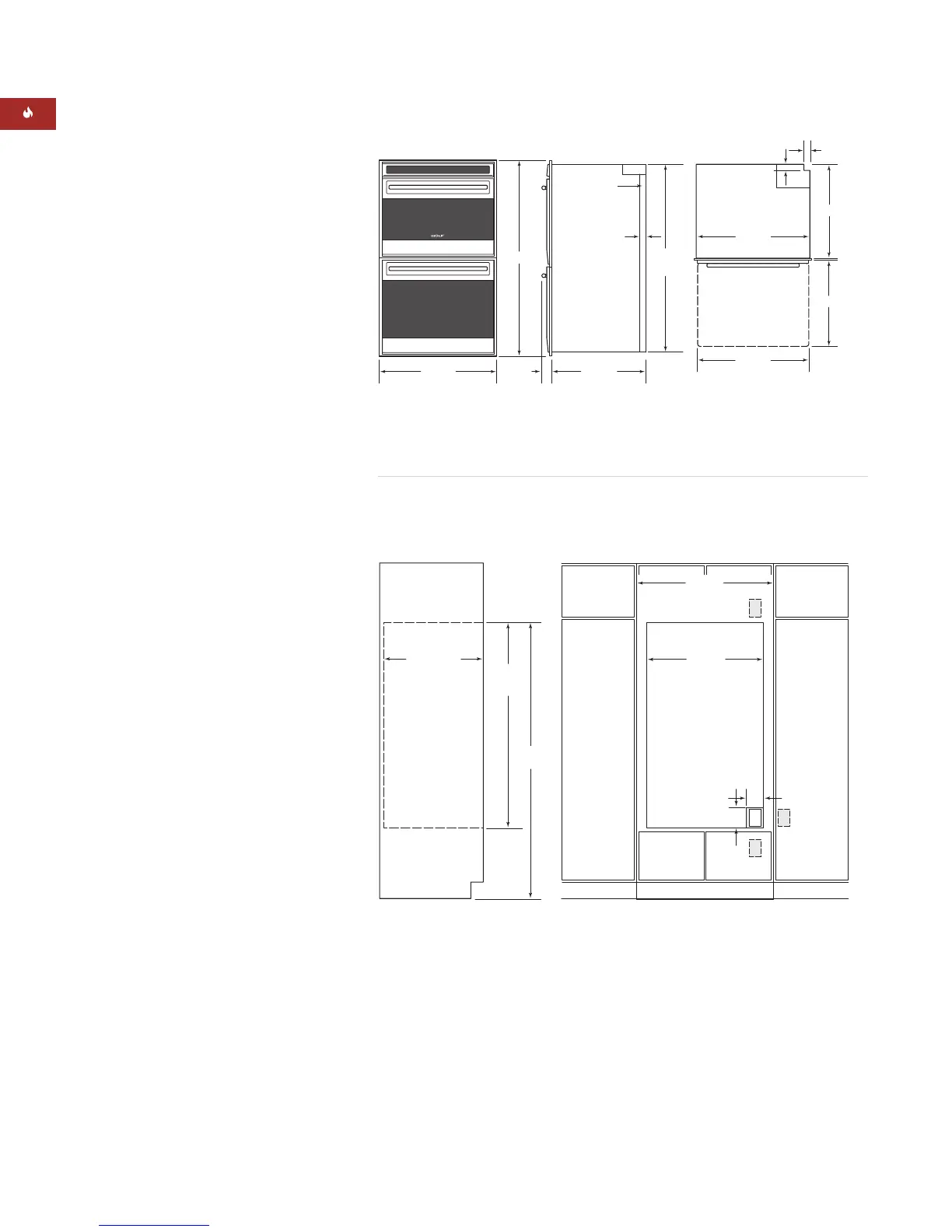

OVERALL DIMENSIONS
762 mm Built-In Double Oven
INSTALLATION SPECIFICATIONS
762 mm Built-In Double Oven
Wall Application
SPECIFICATIONS
762 mm Built-In Double Oven
Overall Width 759 mm
Overall Height 1270 mm
Overall Depth 610 mm
Door Clearance 527 mm
Overall Oven Interior
Capacity (per oven) 127 L
Overall Interior Dim 635 mm x 419 mm
(W x H x D) x 483 mm each
Usable Interior Dim 546 mm x 419 mm
(W x H x D) x 416 mm each
Cabinet Width 838 mm rec
762 mm min
Cabinet Depth 610 mm min
Min Base Support 181 kg
Opening Width 724 mm
Opening Height 1260 mm
Trim Overlaps 5 mm top
3 mm bottom
19 mm each side
Electrical Supply 220-240 V AC, 50/60 Hz
50 amp dedicated circuit
Conduit 1.5 m flexible 4-wire
Electrical Rating 8.9 kW at 240 V
Total Amps 37
Shipping Weight 211 kg
Unit dimensions may vary to ± 3 mm.
IMPORTANT NOTE: Unless you are using cabinets
deeper than 610 mm, it is recommended that the
electrical supply be placed in an adjacent cabinet within
reach of the conduit. Choose the location shown in the
illustrations that best suits your installation.
MODEL OPTIONS
762 mm Built-In Double Oven
Unframed / Classic IDO30U/S
INSTALLATION
Refer to installation
instructions shipped with
each Wolf product for
detailed specifications.
