Wolf VW30S - Internal Blower Installation

8 | Wolf Customer Care 800.222.7820
Installation
INTERNAL BLOWER
IMPORTANT NOTE: The blower must be installed and
plugged in prior to making the electrical connection to the
hood.
For models with a bottom panel, the panel must be removed
prior to installing the blower. Refer to the illustration below.
1 Remove the lters.
2 For model VW30S, remove the screw cover and screw to
remove the spacer. Refer to the illustration below.
3 Insert the three-prong plug from the blower wire into the
hood receptacle. Refer to the illustration.
4 Insert the blower by aligning the round discharge on the
blower with the discharge on the hood.
5 Insert the plug from the blower wire into the receptacle
on the blower. Refer to the illustration.
6 Secure the blower to the hood using the two mounting
screws provided.
7 For model VW30S, install the spacer, screw, and cover.
INSTALLATION
RECEPTACLE
RECEPTACLE
MOUNTING
SCREW

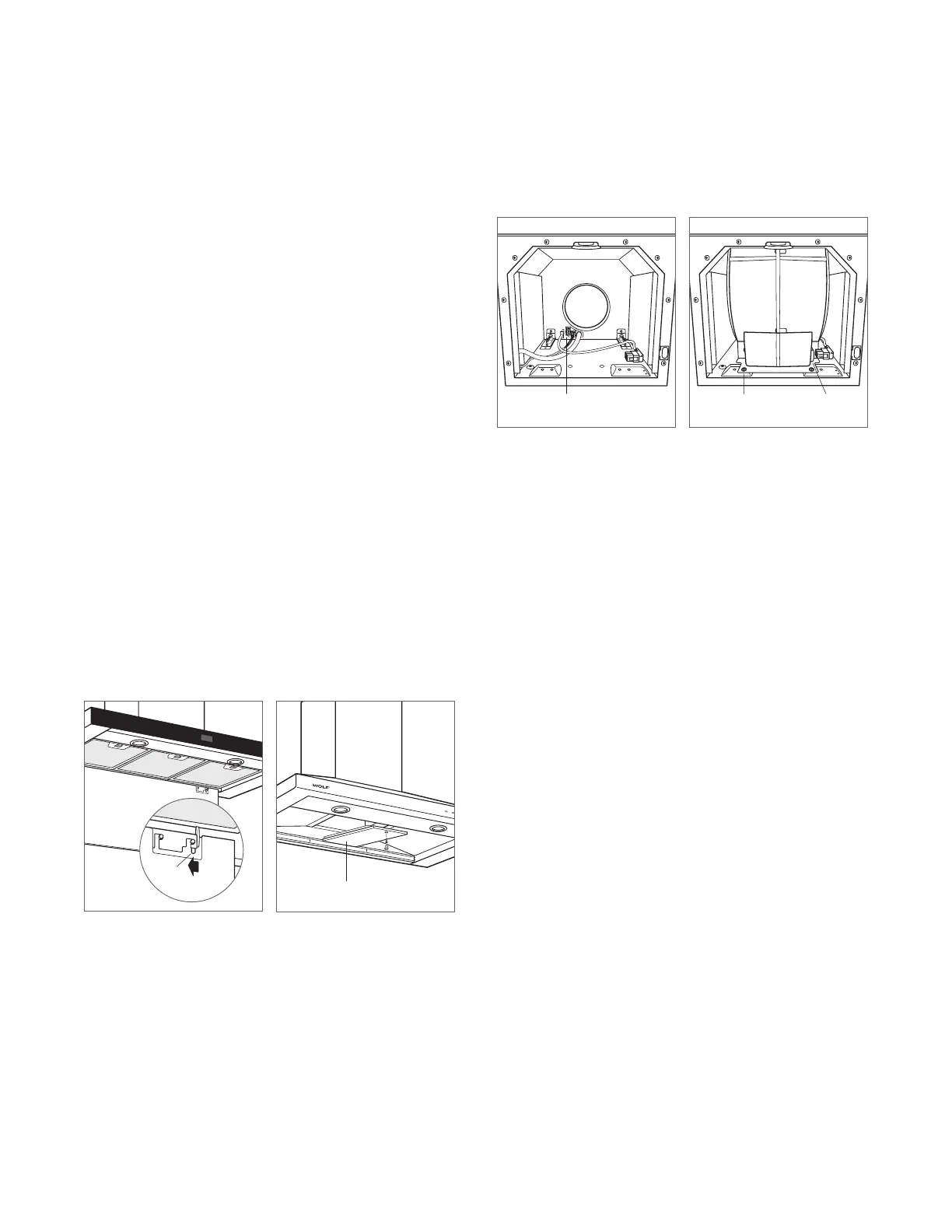

Hood receptacle Mount blower
TA B
SPACER
Bottom panel removal Spacer removal (model VW30S)
