Wolf W602718 - Installation and Mounting Details; Installation Specifications; Dimensional Overview

Planning Information
Model W602718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
DIMENSIONS
Overall Width of Hood 60" (1524)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

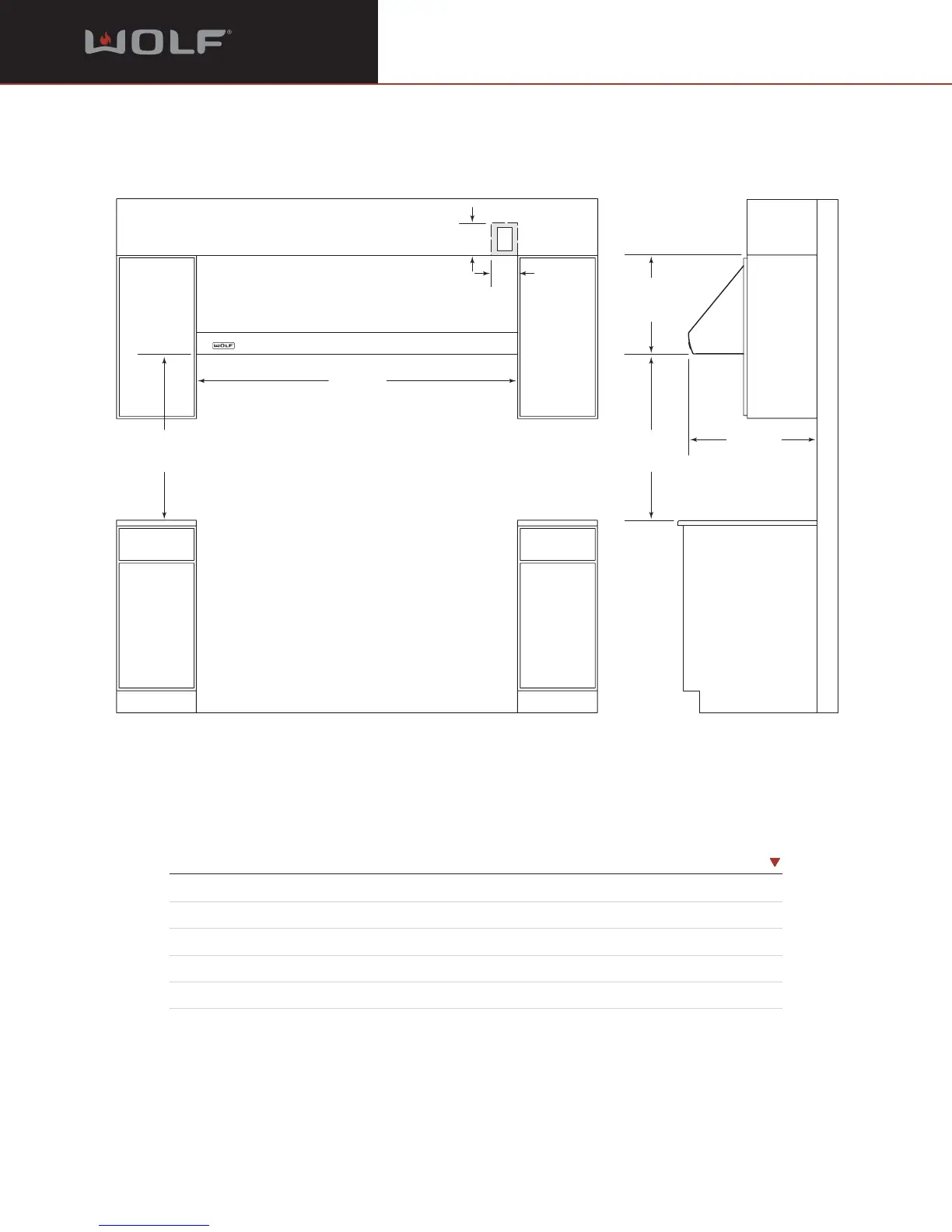

INSTALLATION SPECIFICATIONS
18" (457)
HEIGHT
OF HOOD
60" (1524)
WIDTH OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
27"
(
686
)
DEPTH OF HOOD
NOTE: Horizontal discharge is applicable on 24" (610) deep wall hoods used with WBLOWER-120INT or any remote blower. 27" (686) deep wall hoods are vertical
discharge only.
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
