Wolf W602718 - Ducting Considerations

Planning Information
Model W602718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
DUCTING CONSIDERATIONS
Wolf Pro 27" (686) deep wall hoods are shipped
without the blower assembly. Internal, in-line or
remote blower assemblies are available.
Pro 27" (686) deep wall hoods have a vertical
discharge location as shown in the illustration
below.
IMPORTANT NOTE: Install these ventilation
hoods only with a Wolf blower.
Refer to the Pro ventilation charts at the end of
this section for recommendations and blower
options.
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
18" (457)
HEIGHT OF HOOD
WALL HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
27" (686)
DEPTH OF HOOD
10" ROUND DUCT
SOFFIT OR CABINET
OR DUCT COVER
VERTICAL DISCHARGE ONLY FOR 27" (686) DEEP WALL HOODS.
TRANSITION
22
1
/4"W x 9"D TO 10" ROUND
10"H (INCLUDING FLANGES)
ROOF CAP OR REMOTE BLOWER
VERTICAL DISCHARGE

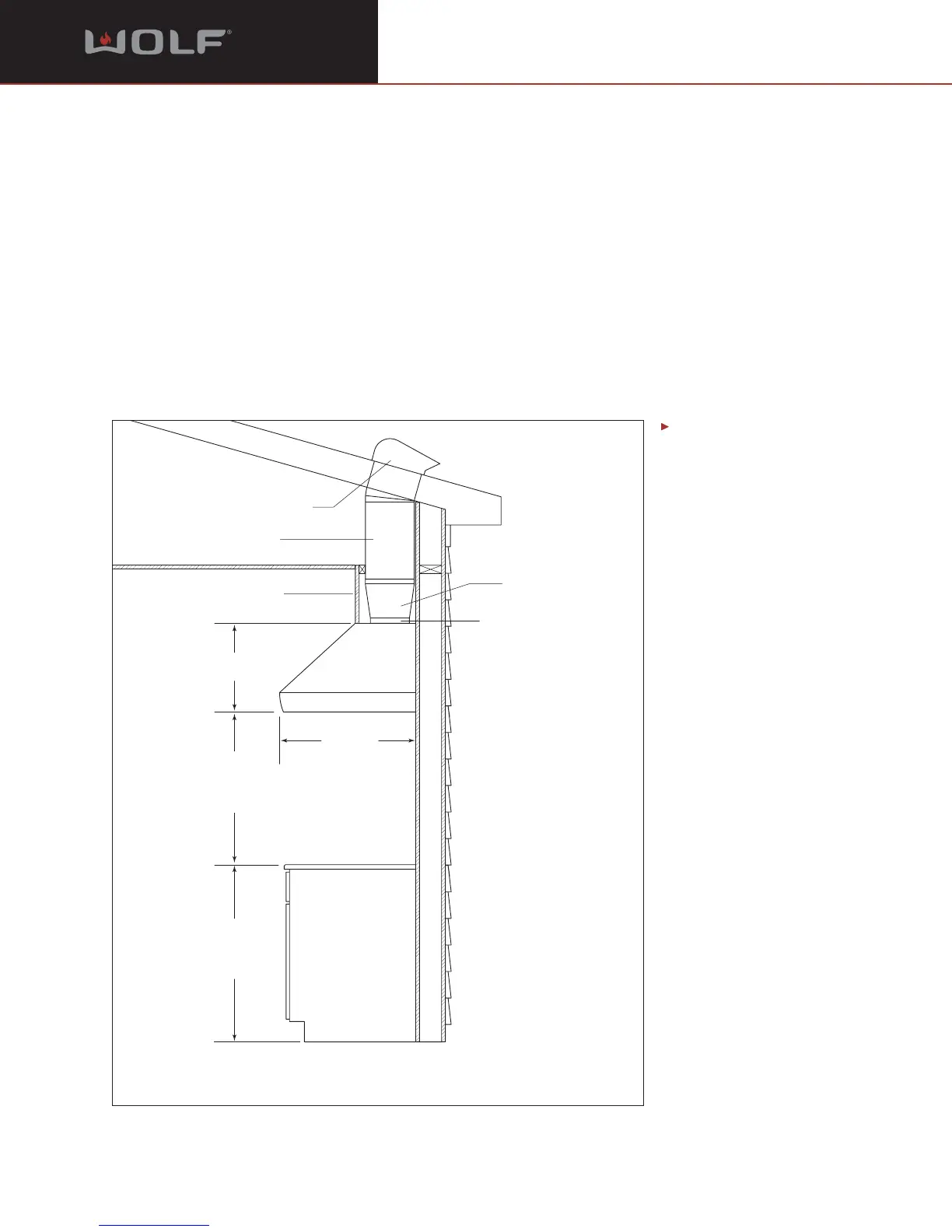

Ducting considerations
for Pro 27" (686) deep
wall hoods.
