Wolf WWD30 - Before You Start; Drawer Front Options; Tools and Materials Required

Planning Information
30" (762) Warming Drawer

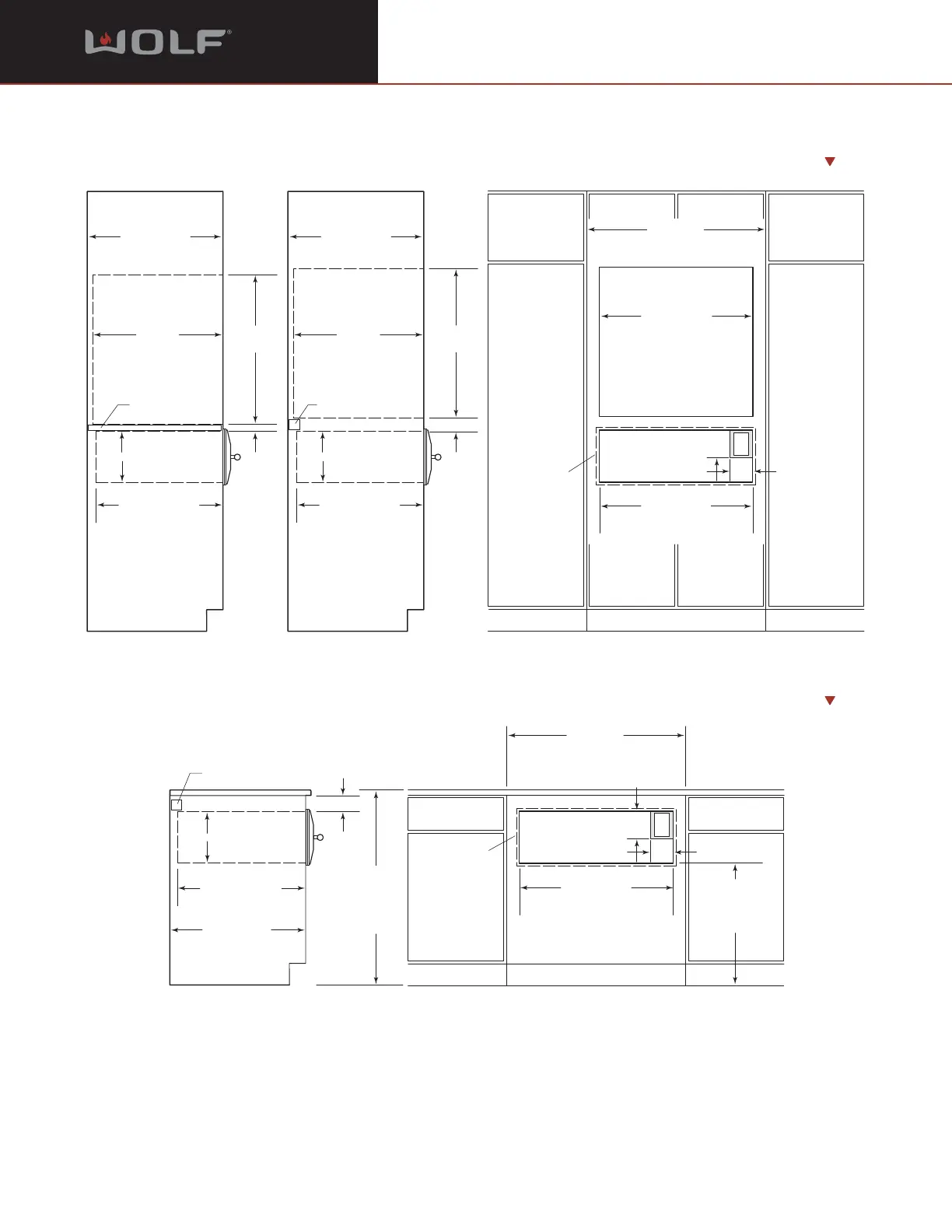

MODEL WWD30 – STAINLESS STEEL DRAWER FRONT
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION WITH 30" (762) BUILT-IN OVEN
28
5
/8" (727)
OPENING WIDTH
E
5"
(127)
4"
(102)
33" (838)
RECOMMENDED CABINET WIDTH
30" min (762)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5" min (127)
BOTTOM
OF OPENING
TO FLOOR
24" min (610)
CABINET DEPTH
9
1
/8" (232)
OPENING
HEIGHT
23
7
/8" min (606)
OPENING DEPTH
2"(51) x 2" (51)
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
ALLOW FOR
5
/8" (16)
OVERLAP OF
DRAWER FACE
ON ALL SIDES
*Allow enough room for placement of anti-tip block and drawer face overlap.
28
1
/2" (724)
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
28
5
/8" (727)
WARMING DRAWER
OPENING WIDTH
E
5"
(127)
4"
(102)
ALLOW FOR
5
/8" (16)
OVERLAP OF
DRAWER FACE
ON ALL SIDES
NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.
30-INCH OVEN
ROUGH OPENING
UNDERCOUNTER INSTALLATION
Dimensions shown in the illustrations are for the stainless steel drawer front application.
PLATFORM APPLICATION
24"min (610)
CABINET DEPTH
7
/8"
(22)
9
1
/8" (232)
OPENING
HEIGHT
23
7
/8"min (606)
OPENING DEPTH
27
3
/16"
(691)
24"min
(610)
7
/8" (22)
PLATFORM
24"min (610)
CABINET DEPTH
2
3
/8"
(60)
ANTI-TIP BLOCK APPLICATION
9
1
/8" (232)
OPENING
HEIGHT
23
7
/8"min (606)
OPENING DEPTH
27
3
/16"
(691)
24"min
(610)
2"(51) x 2" (51)
ANTI-TIP BLOCK
