Wolf WWD30 - Integrated Drawer Front Installation with Built-In Oven; Installation with Built-In Oven

10
WOLF WARMING DRAWER
IMPORTANT NOTE: Additional clearance
between warming drawer and oven openings
m
ay be required. Check that oven supports do
not obstruct the interior dimensions required
for the warming drawer.
When the warming drawer is installed below
a
built-in oven, a minimum of 1
1
/2"
(38)
between warming drawer and oven openings
is required for placement of the anti-tip block
and oven platform. When installed above a
built-in oven, a minimum of
7
/8" (22) is
required.
IMPORTANT NOTE: In an overlay application,
the amount of space between warming drawer
and built-in oven openings may need to be
increased depending on the size of the overlay
panel and the amount of overlap.

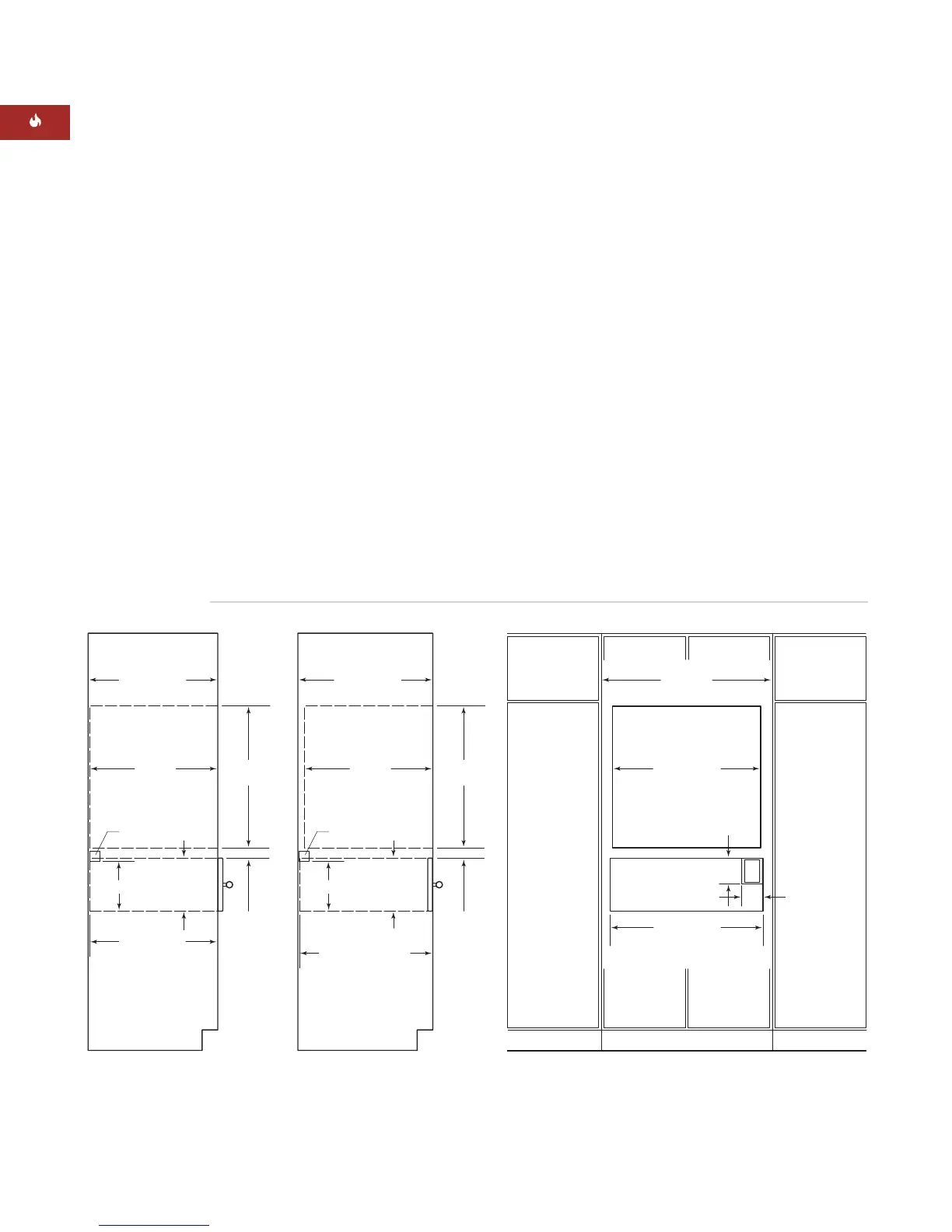

INTEGRATED DRAWER FRONT
INSTALLATION WITH BUILT-IN OVEN
T
he Wolf warming drawer with integrated
drawer front may be installed below or above
a Wolf 30" (762) or 36" (914) built-in single
o
ven, provided the warming drawer is fully
enclosed, top and bottom. Refer to the
illustration below. Also refer to installation
instructions provided with the built-in oven for
additional specifications. Dimensions will vary
according to the specific installation.
The Wolf warming drawer is designed and
agency approved for installation with Wolf
built-in ovens.
The warming drawer platform must be able to
support 200 lbs (91 kg). It must be a minimum
of 1" (25) above the toe kick to allow for the
overlap of the warming drawer trim.
NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.
INSET APPLICAT I ONOVERLAY APPLICAT ION
27
3
/16"
(691)
24"min
(610)
24" min (610)
OPENING DEPTH
24" min (610)
CABINET DEPTH
27
3
/16"
(691)
24"min
(610)
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
25" min (635)
CABINET DEPTH
29
1
/2" (749)
WARMING DRAWER
OPENING WIDTH
28
1
/2" (724)
30-INCH OVEN
OPENING WIDTH
33" (838)
CABINET WIDTH
E
5"
(127)
4"
(102)
1
1
/2"min*
(38)
1
1
/2"min*
(38)
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2"(51)
ANTI-TIP BLOCK
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2"(51)
ANTI-TIP BLOCK
*Dimension may increase depending on the size of the drawer front panel.
Installation with Built-In Oven – Integrated Drawer Front
