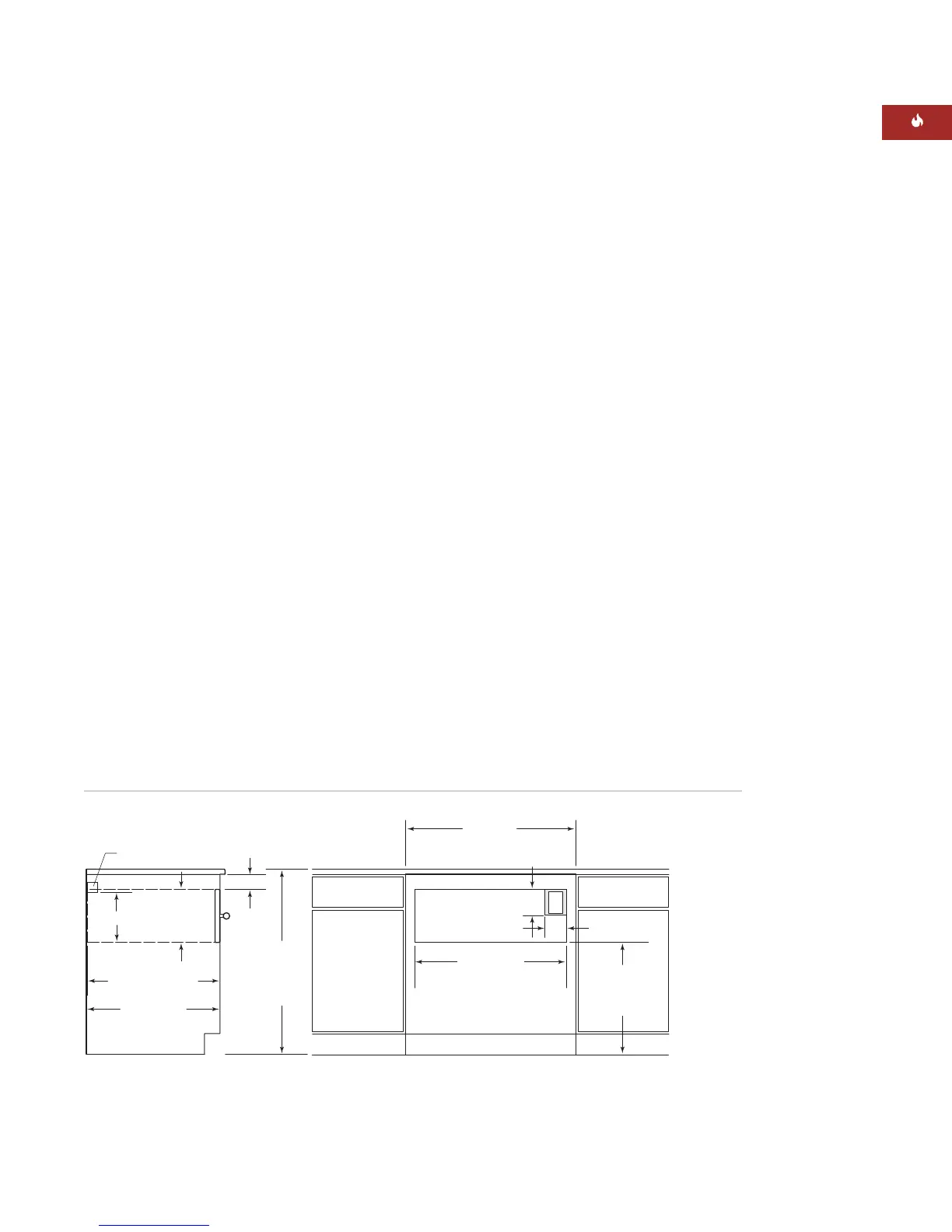

25" min (635)
CABINET DEPTH
29
1
/2" (749)
OPENING WIDTH
E
5"
(127)
4"
(102)
33" (838)
MINIMUM CABINET WIDTH
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5" min (127)
BOTTOM
OF OPENING
TO FLOOR
*Allow enough room for placement of anti-tip block.
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
DIMENSION
WILL VARY*
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2"(51)
ANTI-TIP BLOCK
9
Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
Integrated Drawer Front – Inset Application
INTEGRATED DRAWER FRONT
OVERLAY APPLICATION
A minimum 33" (838) wide by 24" (610) deep
cabinet is required for the warming drawer
w
ith integrated drawer front using the overlay
application. A minimum base support of 200
lbs (91 kg) is required. Refer to the illustration
o
n page 8.
INSET APPLICATION
IMPORTANT NOTE:
The inset application
requires the warming drawer to be recessed
into the cabinet. A minimum 25" (635) deep
cabinet is needed if you want the front panel
to be flush with surrounding cabinetry.
If you are installing the warming drawer with
integrated drawer front in an inset application,
a minimum 33" (838) wide and 25" (635) deep
cabinet is required for this installation. A
minimum base support of 200 lbs (91 kg) is
required. Refer to the illustration below.
UNDERCOUNTER INSTALLATION
For undercounter installations, 23
1
/2" (597)
from the bottom of the warming drawer
o
pening to the floor is recommended. It must
be installed a minimum of 5" (127) above the
floor or 1" (25) above the toe kick.
The Wolf warming drawer with integrated
drawer front may be installed below a 30"
(762) or 36" (914) wide electric or gas cooktop,
provided the warming drawer is fully enclosed,
top and bottom. Refer to installation instruc-
tions for the cooktop for additional specifica-
tions. Dimensions will vary according to the
specific installation.
