Wiring Introduction

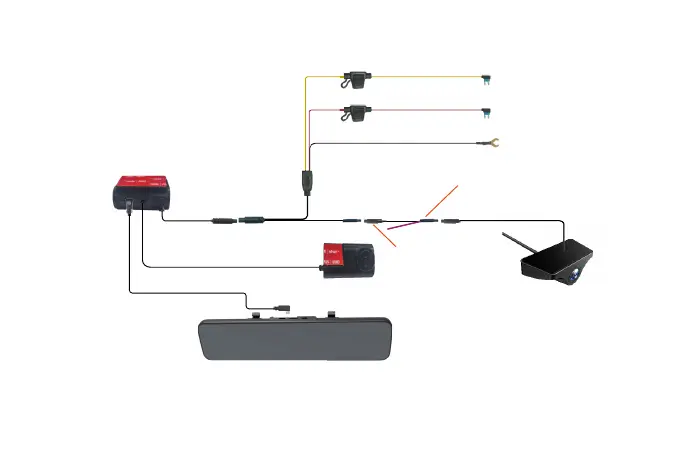

NOTICE: The purple line in the picture refers to the reversing light line.
Connect the red trigger wire to
the positive of the reversing lamp
Yellow: Constant Power
Red: ACC Power
Black: Attach to the Grounding
Docking Station
Type-c Power Cable
4 pin Interface
8 pin Interface
Internal Camera Rear Camera
Rear camera cable
