F2D Saturn
User Manual V1.0
Film to Digital Converter
Table of Contents
Introduction ... 2
Before Using F2D Saturn ... 2
Package Contents ... 4
Functions of Keys ... 4
Connect Saturn to TV to View Images on TV Screen ... 5
Getting Started... 5
1. Attach Power ... 5
2. Use Built-in Memory ... 5
3. Use SD Memory Card (Optional) ... 5
4. Delete All Files on Internal Memory or SD Card ... 6
5. Mode Selection ... 6
6. Set Film Type ... 6
7. Clean Film Dust off the LED Light Table ... 7
8. Convert Slides ... 7
9. Convert Negatives ... 8
10. Convert Film 120 ... 9
11. Adjust EV, RGB, and SHP ... 9
12. Playback Converted Image Files ... 11
13. Connect to Computer to Download Image Files ... 12
14. Download Image Files to PC and Delete the Files ... 12
Specifications ... 13
One-Year Limited Warranty (United States Only) ... 13
Choosing Wolverine & Contact info ... Back Cover
Introduction
Thank you for purchasing Wolverine F2D Saturn Film-to-
Digital Converter. You can take stacks of film and convert
them into digital images to preserve them forever. This simple-
to-use Wolverine device converts your film into high quality
digital images in seconds, no computer or software is needed.
Plug the F2D Saturn into an outlet or an USB port; all images are
saved to internal memory or optional SD memory card.
Wolverine F2D Saturn can be connected to your Windows PCs
or Mac computer system to download converted and saved
digital images through USB ports.
Before Using Wolverine F2D Saturn
This section provides important information that you should read
before using your F2D Saturn.
Do not allow Saturn to come into contact with water or other
liquids, using Saturn when wet may result in fire or electric
shock.
.
Do not expose or store Saturn to extreme temperatures,
humidity or vibrations, which may cause damages to Saturn.
Under no circumstances should user try to repair or open the
outer casing of Saturn.
Warranty will be voided if Saturn is mishandled. Wolverine
Data is not responsible for consequential damages, including
loss of data.
Wolverine Data has no obligation to repair, replace or issue
refunds without a Return Merchandise Authorization (RMA)
number and the original purchase receipt of the defective
product.
.
.
.
.
Repairs or replacement service will not be offered to products
that were misused, scratched, repaired without authorization,
or any other reasons beyond the range of intended use.
Replacement product may be either new or refurbished,
provided that its functions are at least equal to that of the
product being replaced.
Wolverine Data is not responsible for any data stored on the
returned product, please backup any data prior to ship back
the unit.
All out-of-warranty repairs are subjected to repair fee. Please
contact your dealer or Wolverine Data for current charges.
Wolverine Data is the product manufacturer. Any return or
refund, please contact the product seller first.
.
.
.
.
.

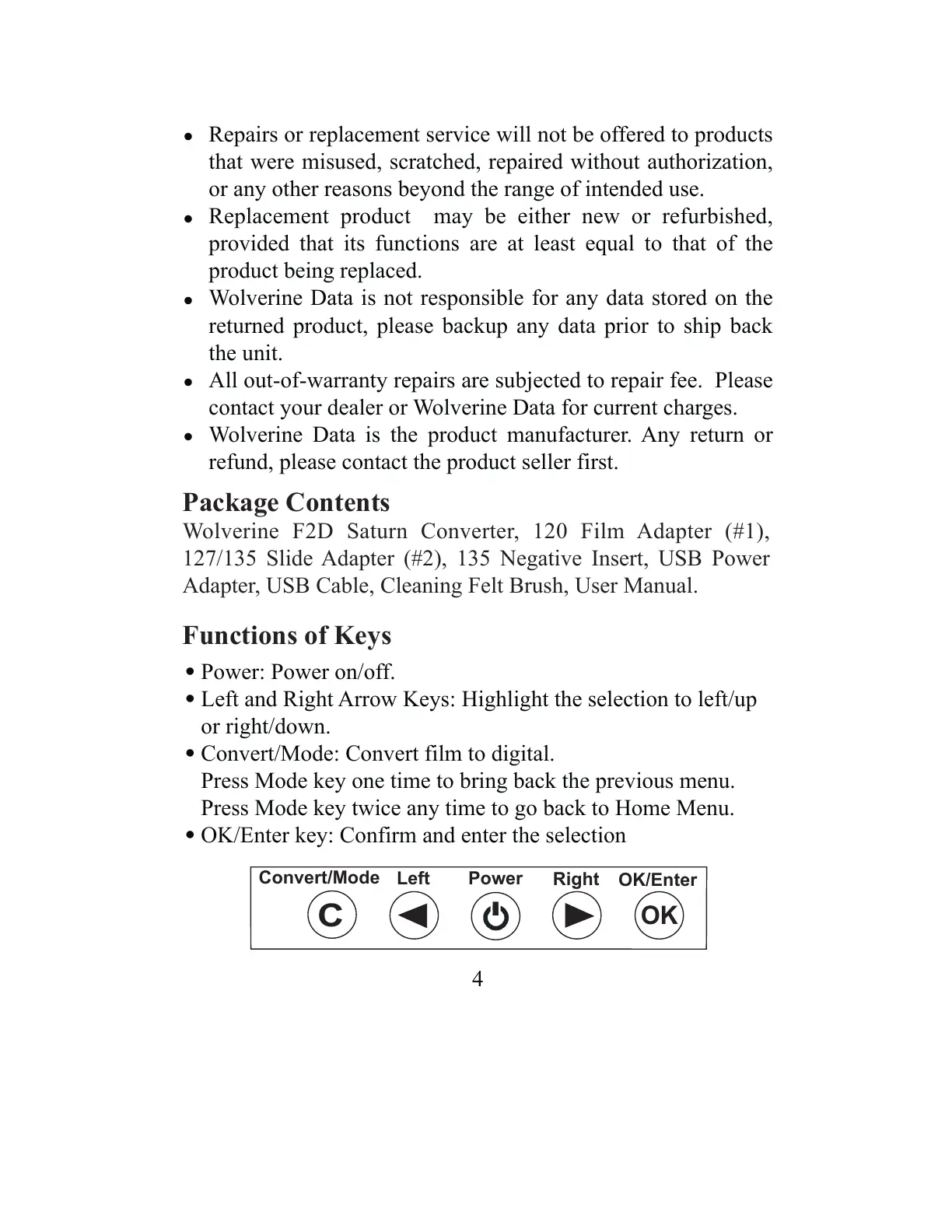

Package Contents
Wolverine F2D Saturn Converter, 120 Film Adapter (#1),
127/135 Slide Adapter (#2), 135 Negative Insert, USB Power
Adapter, USB Cable, Cleaning Felt Brush, User Manual.
Power: Power on/off.
Left and Right Arrow Keys: Highlight the selection to left/up
or right/down.
Convert/Mode: Convert film to digital.
Press Mode key one time to bring back the previous menu.
Press Mode key twice any time to go back to Home Menu.
OK/Enter key: Confirm and enter the selection
.
.
.
.
Functions of Keys
C
OK/Enter
Power
Convert/Mode
Left
Right
OK
Connect Saturn to TV to View Images on TV Screen
If your TV set equipped with HDMI port, you can view
converted images on TV screen instead from the Saturn viewer.
Plug HDMI cable (not included) to HDMI port located at the
back of Saturn, and a HDMI port of your TV set. Change your
TV set INPUT/SOURCE to the corresponding HDMI port. The
viewer of Saturn will turn dark, all menu and images will appear
only on TV screen.
Attach Power
Connect the included USB cable with power adapter to a wall
outlet, or plug the USB cable to your computer USB port
directly. Saturn turns itself off after 30 minutes of idle time.
Use Built-in Memory
Saturn has built-in memory that can store about 80 ~ 100
digital images. After power on, if no external memory card is
inserted, a No Card will appear on the viewer for 3 seconds.
Use SD Memory Card (Optional)
You can use SD memory cards, but any memory card cannot
be more than 128 GB. We recommend 16 GB or less to speed
up the operation. For Micro-SD card users, first insert the
finger-nail size Micro card into the stamp-size card adapter,
then insert it into Saturn, otherwise it might freeze Saturn.
1.
2.
3.
Getting Started
Ensure the card is unlocked, and insert or
remove the memory card while Saturn is
powered off.
A new or used memory card should be formatted before using
with Saturn. Refer to item 4.
Each 1 GB of SD memory holds about 8 hundred digital
images.
U
n
l
o
c
k
4. Delete All Files on Internal Memory or SD Card
Delete All function formats/deletes all files stored in the
internal memory, if SD memory card is not inserted. With
external memory card inserted, Delete All function will erase
all files on the inserted card. Make a backup if it's needed.
1. Insert SD memory card if needed.
2. Turn power on, press Right key to select Delete All then
press OK key.
3. Press Left key to highlight YES then press OK.
Saturn has 6 modes and are listed below. Press Left or Right
keys to change mode setting then press OK/Enter key to
execute the selection. You can always press Mode key one
time to bring back previous menu or press Mode key twice to
go back to Home menu.
5. Mode Selection
.
Film Type - To select the type of film to convert, color
Negative, Slide Positive, Black & White, or Microfiche.
.
Delete All - Deletes all files in the internal memory or the
inserted SD card.
.
Convert - Converts film to digital image. You can go to
Convert mode directly if all settings remained the same as
last session.
.
Playback - Reviews or rotates converted images that stored
in memory.
.
USB Upload - Downloads converted files to PC or Mac.
.
Language - Sets menu in English or Japanese.
E nsure the Film Type setting is selected correctly, or you will
see X-ray-like image on the viewer. The film type setting will
remain unchanged even when Saturn is powered off.
6. Set Film Type
1. At Film Type menu, press OK/Enter key.
2. Press Left or Right key to select film type, then press OK.
Color Negative -
Film 120 in 4 different widths, 127VPK, 135
Slides Positive -
Film 120 in 4 different widths, 127VPK, 135
Black & White -
Film 120 in 4 different widths, 127VPK, 135
Microfiche
3. Press Left/Right keys to select film type, then press OK.
35mm Slide
127VPK Slide
Film 120 (60x90)
Film 120 (60x45)
7. Clean Film Dust off the LED Light Table
For best results, use included
cleaning brush with felt side down to
wipe dust off the light table gently
before inserting adapter.
Insert 127/135 Slide Adapter #2
from right side of the slot, and
push in until stopped. Feed slides
with shiny side up one by one
until image shown on screen.
Manually adjust slide alignment
and press Convert then OK to
save it. Feed next slide to eject the
previous one, repeat Convert then
OK steps to continue converting.
8. Convert Slides
T
h
i
s
s
i
d
e
i
n
1
2
7
/
1
3
5
S
l
i
d
e
A
d
a
p
t
e
r
#
2
Push Adapter into slot from
right side until stopped.
Feed and push negative
strip in until an image
shown on screen.
Use 127/135 Slide Adapter #2 with 135 Negative Insert to
convert 135 negative strips.
Manually adjust and align film and press
Convert then OK to save image. Push
negative strip to the next picture, press
Convert then OK again. Repeat the steps.
Left
Right
135 Negative Insert
Place and align 135 Negative Insert
Li
n
e
u
p
This side in
www.wolverinedata.com
127/135 Slide Adapter # 2
patent pending
Close flip cover and press 3 round
buttons down tightly
N
e
ga
t
i
ve
Twist and flip open
This side in
www.wolverinedata.com
127/135 Slide Adapter # 2
patent pending
9. Convert Negatives
F
e
ed
i
n
ne
ga
t
ive
st
r
i
p
T
h
i
s
s
i
d
e
i
n
1
2
7
/
1
3
5
S
l
i
d
e
A
d
a
p
t
e
r
#
2
P
us
h i
n
A
da
p
t
e
r
90
80
70
60
45
90
80
70
60
45
Flip open
OR
Use 120 Film Adapter #1 to convert Film 120 in different
width (60x45mm, 60x60, 60x80, 60x90).
Flip open the Adapter and place the film at the center of the
opening or feed film through right side slot.
10. Convert Film 120
Press Convert then OK to save the image. Pull out the
Adapter and place/center the next film. Insert the Adapter
with film into Saturn. Repeat the steps of Convert then OK
to save images.
Insert the Adapter with film into slot
from the right side until clicks.
Always center the film at window opening regardless the
size/width of the film. When the film is centered, close the
flap cover tightly.
At Convert Mode, press OK/Enter to adjust EV values
(Exposure Value) , RGB colors (Red, Green, Blue) and SHP
(Sharpness).
11. Adjust EV, RGB, and SHP
Positive EV makes image brighter; negative EV makes
image darker. Default value is zero. The edited values will
be saved and remain unchanged until further adjustments are
made. After completed adjustments, press Convert to exit.
Note: Each brand or batch of film might have used different
chemicals which have their own characters. You can make
adjustments to individual film, or download a batch of
images to your computer and do enhancements with a
software.
-2 -1 0 1 2
-2 -1 0 1 2
-2 -1 0 1 2
-2 -1 0 1 2
-2 -1 0 1 2
EV
R
G
B
SHP
Exposure
Red
Green
Blue
Sharpness
Press Left/Right button to change value
Press OK/Enter to go to next adjustment
Press Convert to exit adjustment
Adjust EV/RGB/SHP
Press OK/Enter
Save
Save/Cancel
Press OK/Enter to save
Use SD card or
INT (internal) memory
Exposure value
Convert mode
EV 0.0
135
Converted file counter
00000
Film type
Convert mode
Press Convert
Note: If a FULL icon appears on the viewer, it means the
memory (internal or SD) is full. After download the picture files
to computer, delete all files in the memory with computer
software wizard or Delete All on Saturn.
Playback Mode
Playback in Pause
Press Left or Right key to highlight Playback icon.
Press OK/Enter key to playback stored images as a slide
show at 5 second interval per image.
12. Playback Converted Image Files
1.
2.
Rotate +90
Rotate -90
Exit Edit menu, resume
Playback mode
Delete
Save edited image
Go to Home Menu
(Exit Playback)
Playback/Edit Menu
Press OK key to pause the slide show then press Left/Right
key to advance image forward < or backward > manually.
Press OK/Enter key one more time to go to Edit menu.
In the Edit menu, highlight Exit, then press OK/Enter key
to resume Playback.
After editing the image, select Save to save edited image in
memory.
Highlight Home, press OK/Enter key to exit Playback or
press Convert key twice to go to Home menu.
3.
4
5.
6.
7.
13. Connect to Computer to Download Image Files
Insert SD memory card if not using the internal memory.
Use included USB cable to connect to computer.
Power on Saturn.
Press Left/Right key to highlight USB UPLOAD.
Press OK/Enter key to activate the USB mode .
1.
2.
3.
4.
U
S
B
U
P
L
O
A
D
U
S
B
U
P
L
O
A
D
14. Download Image Files to PC and Delete the Files
You can use Saturn as an external card reader to download
converted image files to your computer. It's a better practice to
download files to different folders each time.
MAC system:
iPHOTO will pop out. If not, launch iPHOTO and import
the files.
Windows PC system:
A Microsoft Wizard Window will pop out. Follow the steps
to copy picture files to your PC.
All converted image files will be named in alpha-numerical
order, such as IMAG0001.JPG, IMAG0002.JPG etc, and stored
under the directory of DCIM/100MEDIA.
After files were copied to your computer, you can delete the
files in the memory card or internal memory using delete
functions on the computer, or Delete All function on Saturn.
Specifications
Display: Color 4.3" TFT LCD
Exposure Control : Automatic / Manual (-2.0 EV~ +2.0 EV)
White Balance : Automatic
Resolution : 20 Mega pixels
Film type : 135, 127VPK, Film 120, Microfiche
Picture Effects : Negative, Slide, Black and White
File format : JPEG
HDMI out: YES
Built-in memory : 128M
External memory card: SD card up to 128GB (Maximum)
Interface: USB 2.0
Power Supply: DC 5V Adapter/ USB Port
Language: English, Japanese
Support system: Windows XP/vista/Windows7/8/10 Mac10.7.3
Product Size: 7.0" x 7.6" x 4.6" (W177 x H192 x D118 mm)
Weight: 1.3 lb (580g)
One-Year Limited Warranty (United States Only)
The limited warranty term is one year beginning on the date of
invoice, as further described in the following text. This limited
warranty does not cover damage due to external causes,
including accident, abuse, misuse, problems with electrical
power, servicing not authorized by Wolverine Data. The
warranty extends only to the first consumer purchaser, and is
not transferable.
To request limited warranty service, you must contact
Wolverine Data within the limited warranty period.
Wolverine Data will then issue a RMA (Return Material
Authorization) number. You must ship the product back to
Wolverine Data in their original or equivalent packaging,
prepay shipping charges, and insure the shipment or accept the
risk of loss or damage during shipment. Wolverine Data will
ship the repaired or replacement products to you freight prepaid
if you use an address in the continental United States.
Shipments to other locations will be made freight collect.
To obtain service, you must include: (a) a copy of your receipt
or other comparable proof of purchase; (b) a written description
of the problem; (c) your name, address and telephone number;
(d) Write the RMA number on the outside shipping packaging.
NOTE: Wolverine Data uses new or reconditioned parts made
by various manufacturers in performing limited warranty repairs
and building replacement products. If Wolverine Data repairs or
replaces a product, its limited warranty term is not extended.
Warranty Exclusions
Normal Wear and Tear
Periodic maintenance, repair and replacement of parts due to
normal wear and tear are excluded from coverage.
Abuse and Misuse
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of the product
resulting from misuse; (b) contact with liquid, water, rain,
extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the products or accessories for
commercial purposes or subjecting the product or accessory to
abnormal usage or conditions; or (d) other acts which are not the
fault of Wolverine Data, are excluded from coverage.
Use of Non-Wolverine Converter's Accessories
Defects or damage that results from using Non-Wolverine
Converter's accessories or other peripheral equipment are
excluded from coverage.
Unauthorized Service or Modification
Defects or damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any way
by someone other than Wolverine Data are excluded from
coverage.
Altered Products
Product or accessories with (a) serial numbers or date tags that
have been removed, altered or obliterated; (b) broken seals or
that shown evidence of tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-Wolverine Data parts or
accessories, are excluded from coverage.
Having Difficulty Using This Product
Please try the following options:
.
.
.
Call us at 949-458-9888 M-F
9:00-5:00 Pacific Time
We strongly recommend you to
visit our web site,
www.wolverinedata.com/support
to watch tutorial videos
E-mail or write to our technical
support staff at
support@wolverinedata.com or
address: 9939 Muirlands Blvd.
Irvine, CA 92618
Thank you for choosing Wolverine
Join our Mailing List to receive our exclusive coupon offers

Wolverine F2D Saturn Specifications

General

Brand	Wolverine
Model	F2D Saturn
Category	Media Converter
Language	English
