IMPORTANT NOTE: After installing clutch, rotate it back-
wards to see that it ratchets freely. If it does not, add
another washer (16) under cap (15) & rotate clutch again.

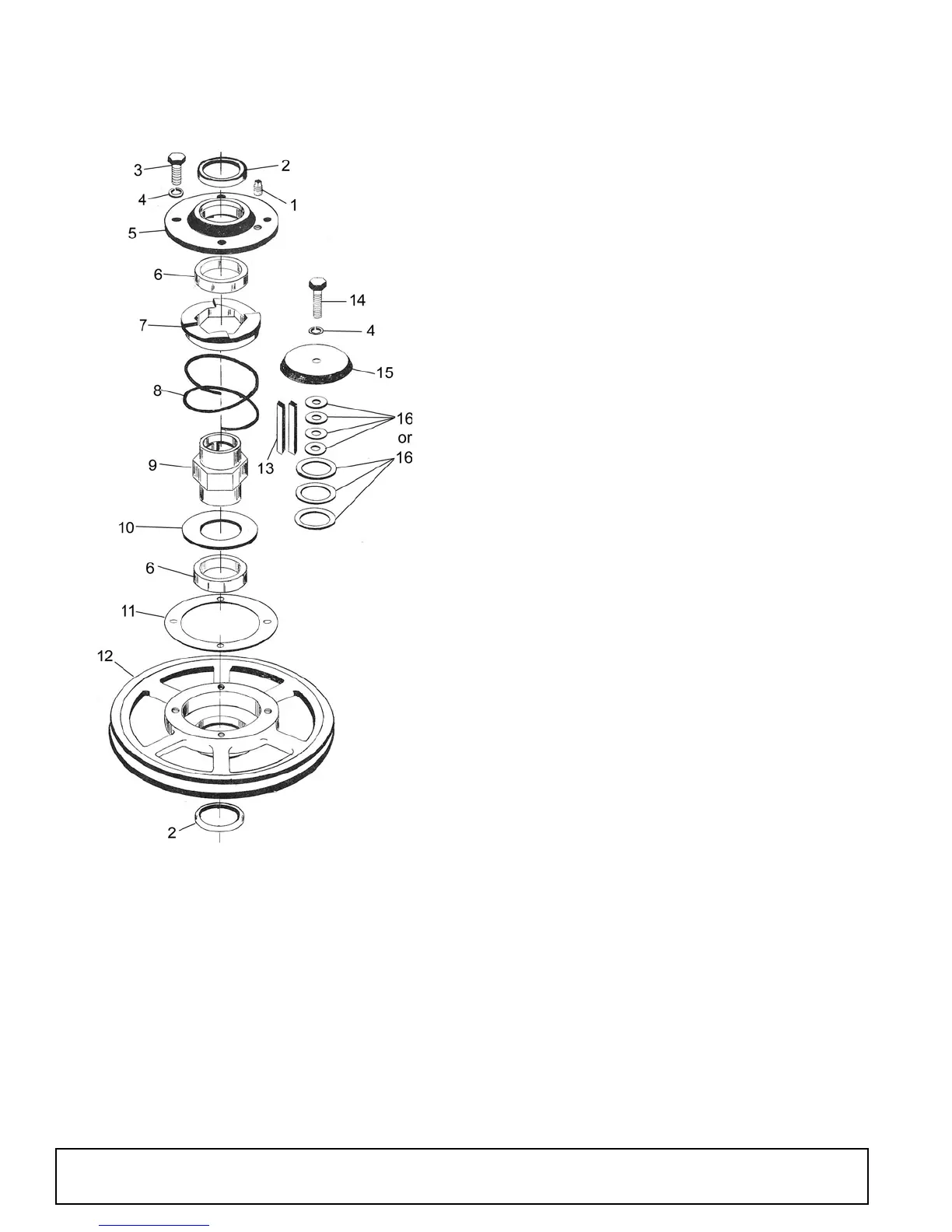

REF PART QTY DESCRIPTION
1 ------ * 1 1/8 Pipe plug (used on earlier
models)
2 3174 2 Oil seal
3 839 * 4 3/8 NC x 1 HHCS GR5
4 838 * 5 3/8 Lock washer ZP
5 3333 1 Ratchet cap (includes 2 & 6 installed)
6 3175 2 1-3/4 x 2-1/4 x 1/2 Bushing
7 3171 1 Ratchet with hex hole
8 3176 1 Compression spring
9 3177 1 Drive hex
10 3178 1 1-3/4 x 3-3/8 x 18 GA Shim
11 6935 1 .070 x 3-1/2 x 5 Gasket
12 3332 1 Special 9.4 sheave (includes 2 & 6
installed)
13 3912 2 Key, 1/4 x 3/8 x 2
14 12169 * 1 3/8 NC x 1-1/4 HHCS GR5
15 3172 1 Weather cap
16 1536 3 1-1/4 x 1-3/4 Shim -or-
16 565 * 4 3/8 Flat washer
* Standard hardware, obtain locally
