Woods BACKHOE 1050 - Page 53

Parts 53
51861 (Rev. 6/16/2006)

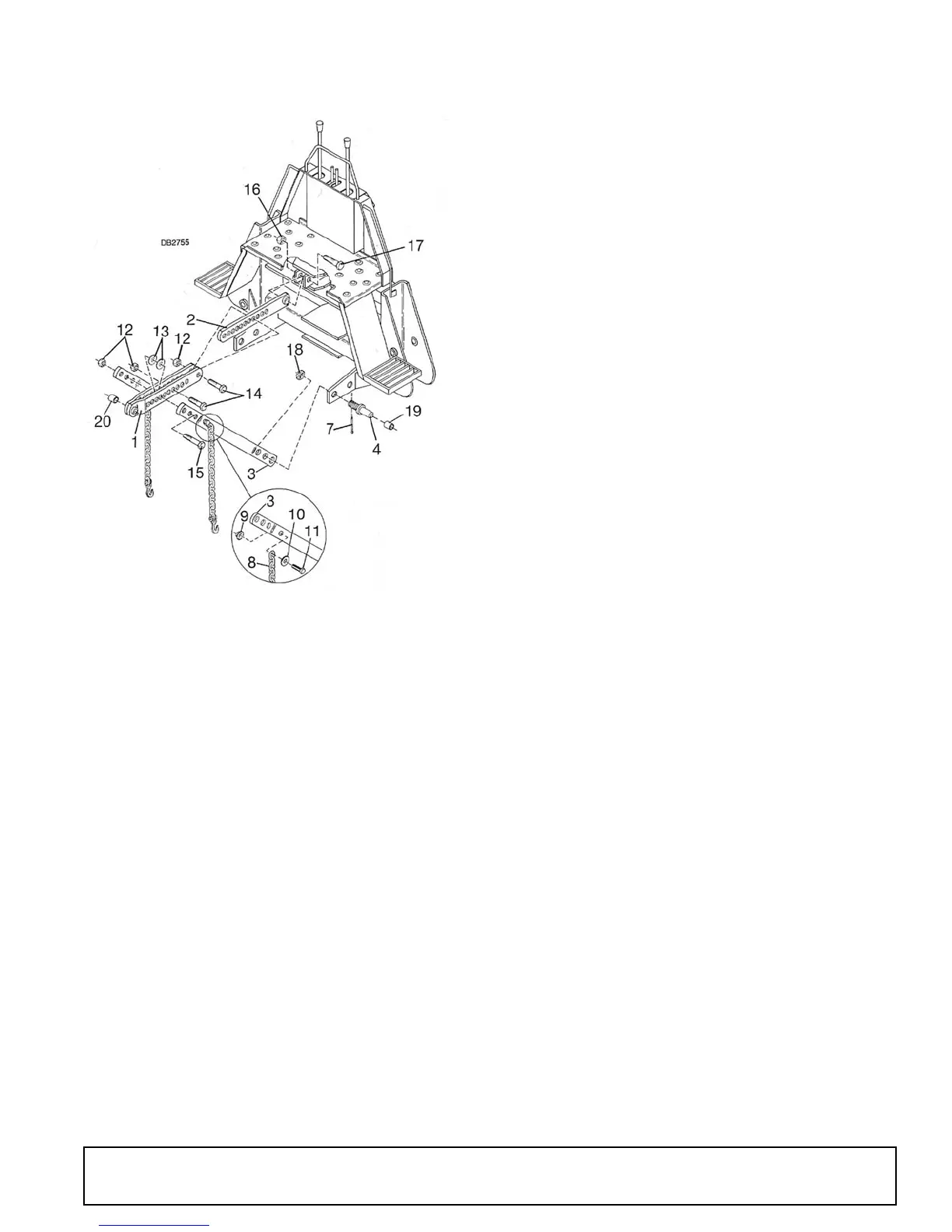

BH1050 SAF-T-LOK
®
ASSEMBLY
HARDWARE
REF PART QTY DESCRIPTION
1 34129 1 Double link assembly
2 34131 1 Link assembly
3 34993 2 Saf-T-Bar assembly, only for S/N
3700 and above (includes item 8-11)
-or-
3 34292 2 Saf-T-Bar assembly for S/N 3000-
3699 only (includes items 8-11)
4 14012 2 Category 2 hitch pin, 1-1/8 drilled
REF PART QTY DESCRIPTION
7 6185 * - 1/4 x 2-1/4 Cotter pin
8 34293 - 5/16 x 60 Chain and grab hook
9 11900 * - 1/2 NC Flanged hex lock nut
10 854 * - 1/2 Standard flat washer
11 3699 * - 1/2 NC x 2 HHCS GR5
12 34194 - 7/8 Hex lock nut
13 11073 - 7/8 x 2 x 3/8 Flat washer
14 34157 - 7/8 NC x 3-1/2 HHCS GR5
15 34163 - 7/8 NC x 5 HHCS GR5
16 34279 - 1" NC Hex lock nut
17 34278 - 1" NC x 5" HHCS GR5
18 14153 - 1-1/8 NF Slotted hex nut
19 34291 - 5/32 Wall x 1-7/16 x 1-3/4 tube
20 34143 - 1/8 Wall x 1-1/4 x 1-7/8 tube
* Obtain locally
