NOTES:
* Refer to counterweight requirement chart on page
15 to determine the amount of counterweight
required for your mower and equipment.
** Not included in kit. As required.

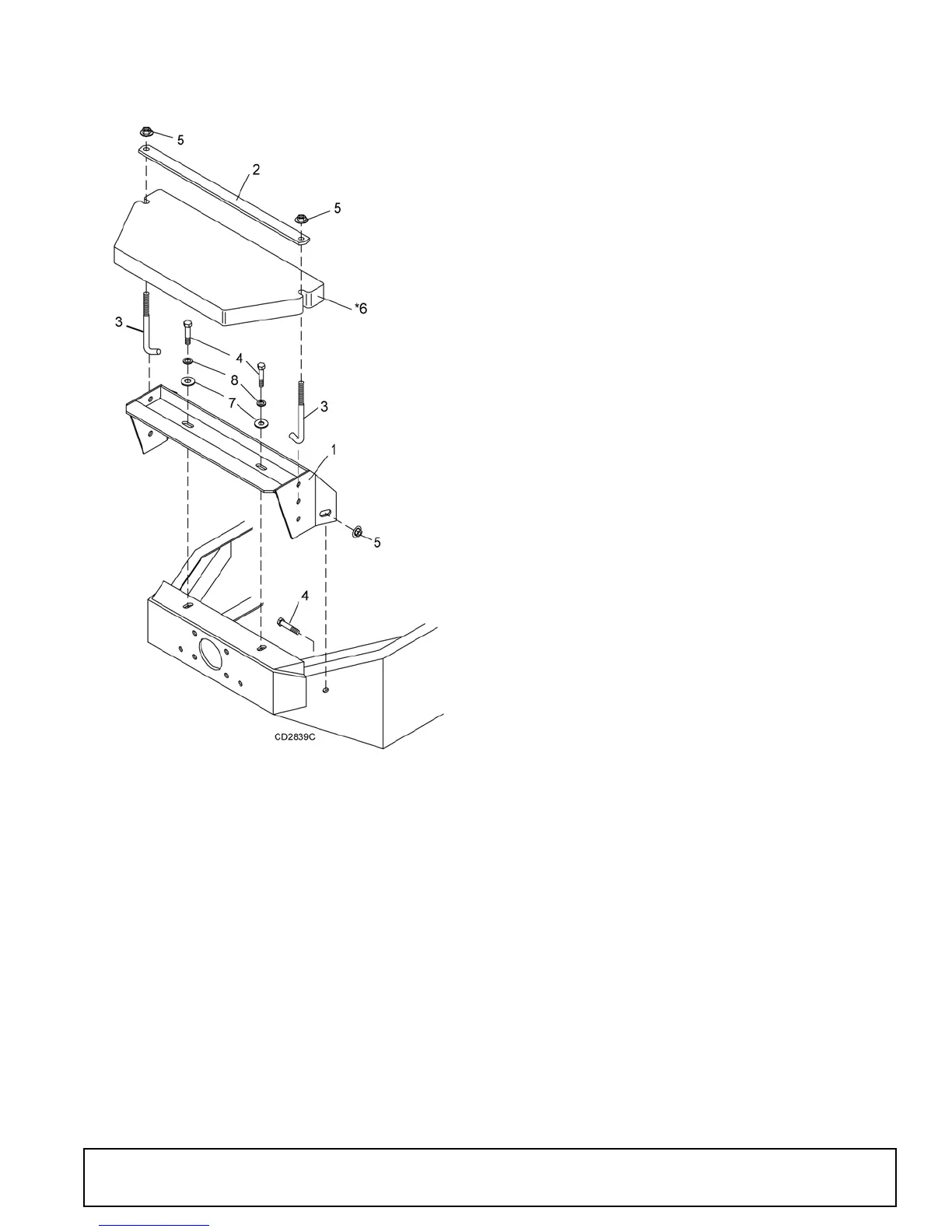

REF PART QTY DESCRIPTION
A 70980 Counterweight mount kit
1 71063 1 Weight mount
2 71123 1 Weight strap
3 71156 2 .375-16 x 6” Hook bolt
4 839 * 4 3/8 NC x 1 HHCS
5 66885 4 3/8 NC Flange nut
6 71512 ** 50 lb Counterweight A/R
7 565 * 2 3/8 Flat washer
8 838 * 2 3/8 Lock washer
* Standard hardware, obtain locally
