NOTES: Headlight power outlets are located near the
steering pivot blocks.

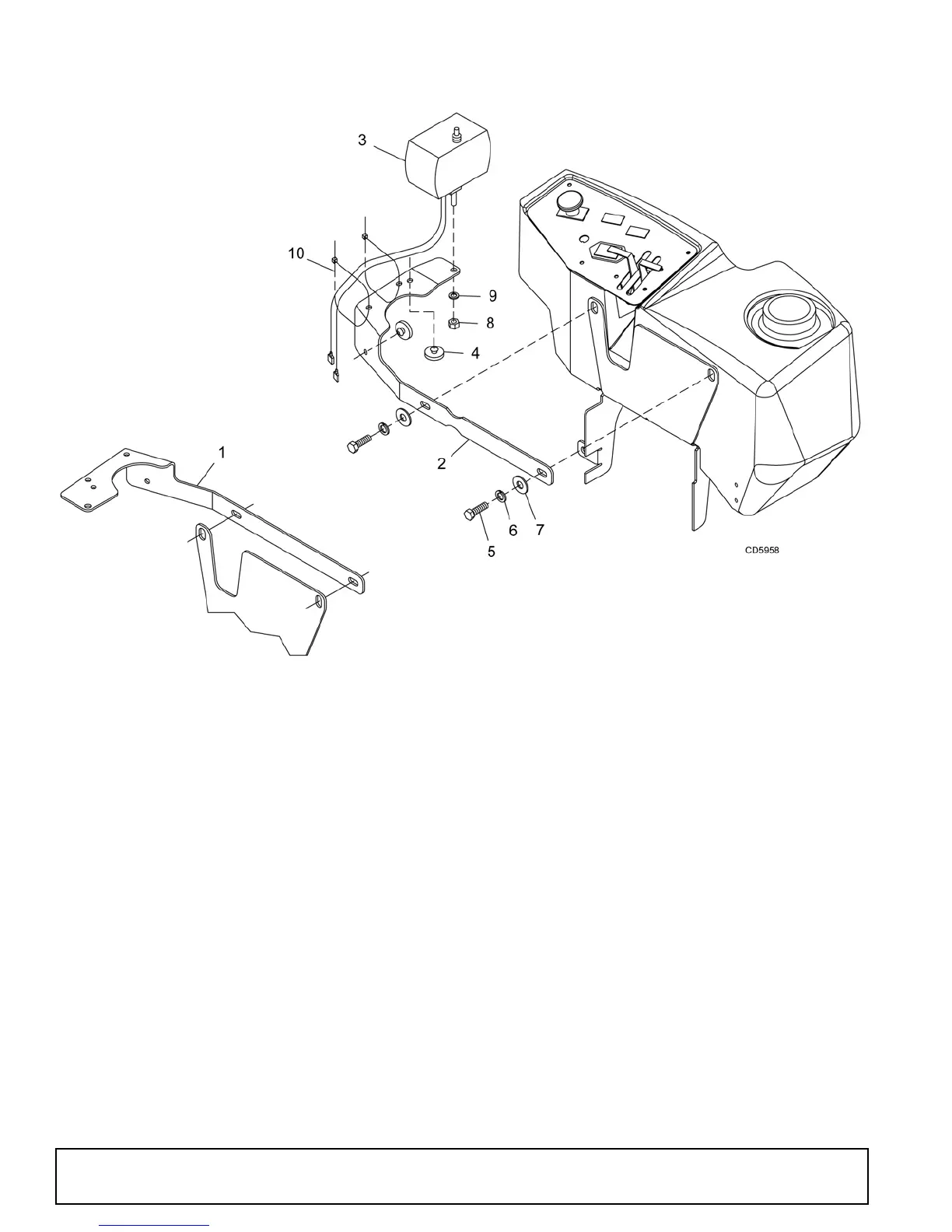

REF PART QTY DESCRIPTION
A 73938 - Headlight kit
1 73937 1 Light bracket - left
2 73936 1 Light bracket - right
3 73935 2 Rect. work light with switch
4 07516000 4 Button bumper
5 6096 * 4 5/16 NC x 3/4 HHCS
6 2472 * 4 5/16 Lock washer
7 4378 * 4 5/16 Flat washer
8 5288 * 2 1/4 NC Hex nut
9 1985 * 2 1/4 Lock washer
10 -------- * 8 Plastic tie
* Standard hardware, obtain locally
