28 Owner Service
MAN0988 (11/5/2012)

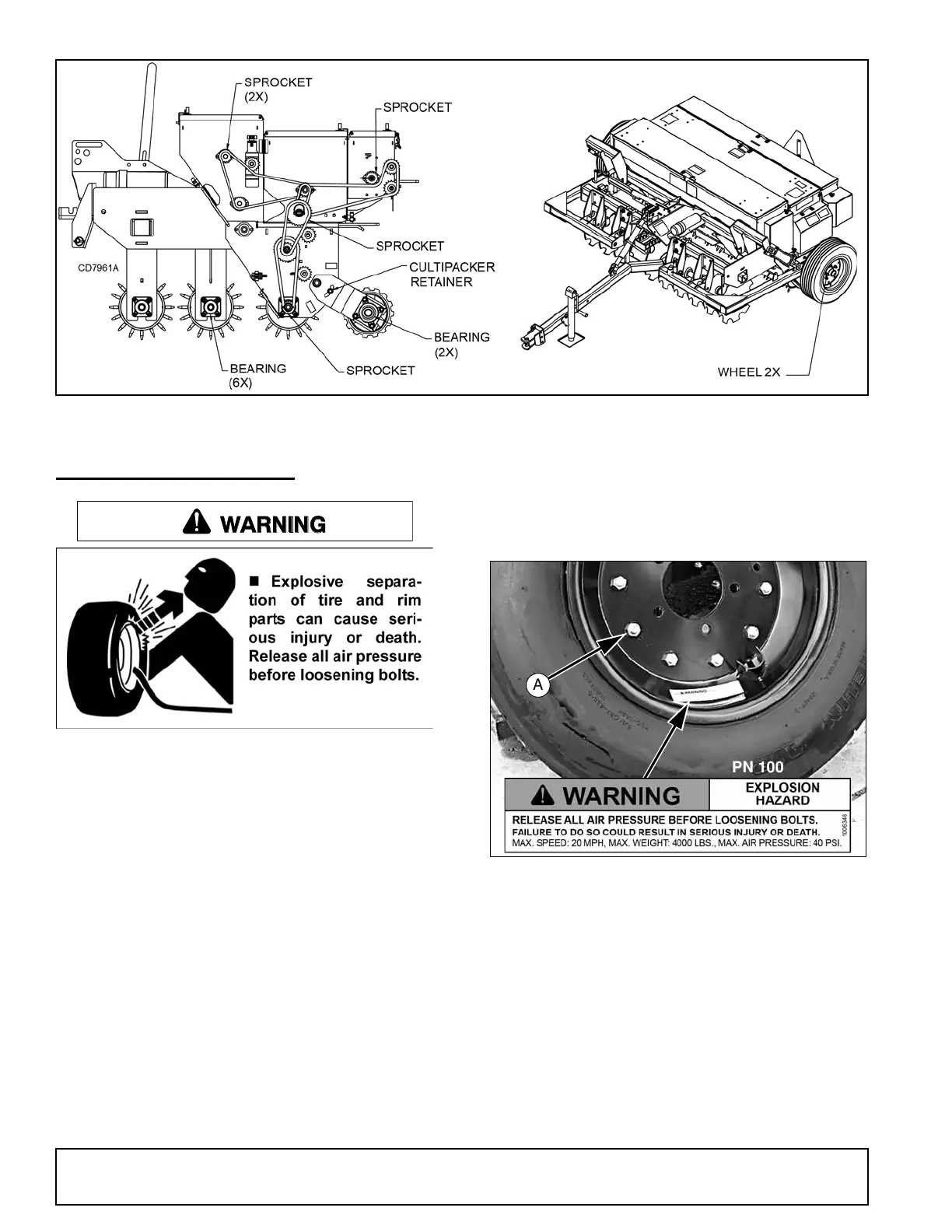

Figure 33. Lubrication Points
SERVICING TIRES SAFELY
Do not attempt to mount a tire unless you have the
proper equipment and experience to perform the job.
Always maintain the correct tire pressure. Do not inflate
tires above the recommended pressure. Never weld or
heat a wheel and tire assembly. The heat can cause an
increase in air pressure and result in a tire explosion.
Welding can structurally weaken or deform the wheel.
When inflating tires, use a clip-on chuck and an exten-
sion hose long enough to allow you to stand to the side,
not in front of or over the tire assembly. Use a safety
cage if available.
Check wheels for low pressure, cuts, bubbles, dam-
aged rims, or missing lug bolts and nuts.
Never remove split rim assembly hardware (A) with the
tire inflated.
Figure 34. Split Rim Tire Servicing
(Rev. 7/12/2019)
