Woods RD60 - Page 39

Parts 39MAN0260 (8/6/2004)

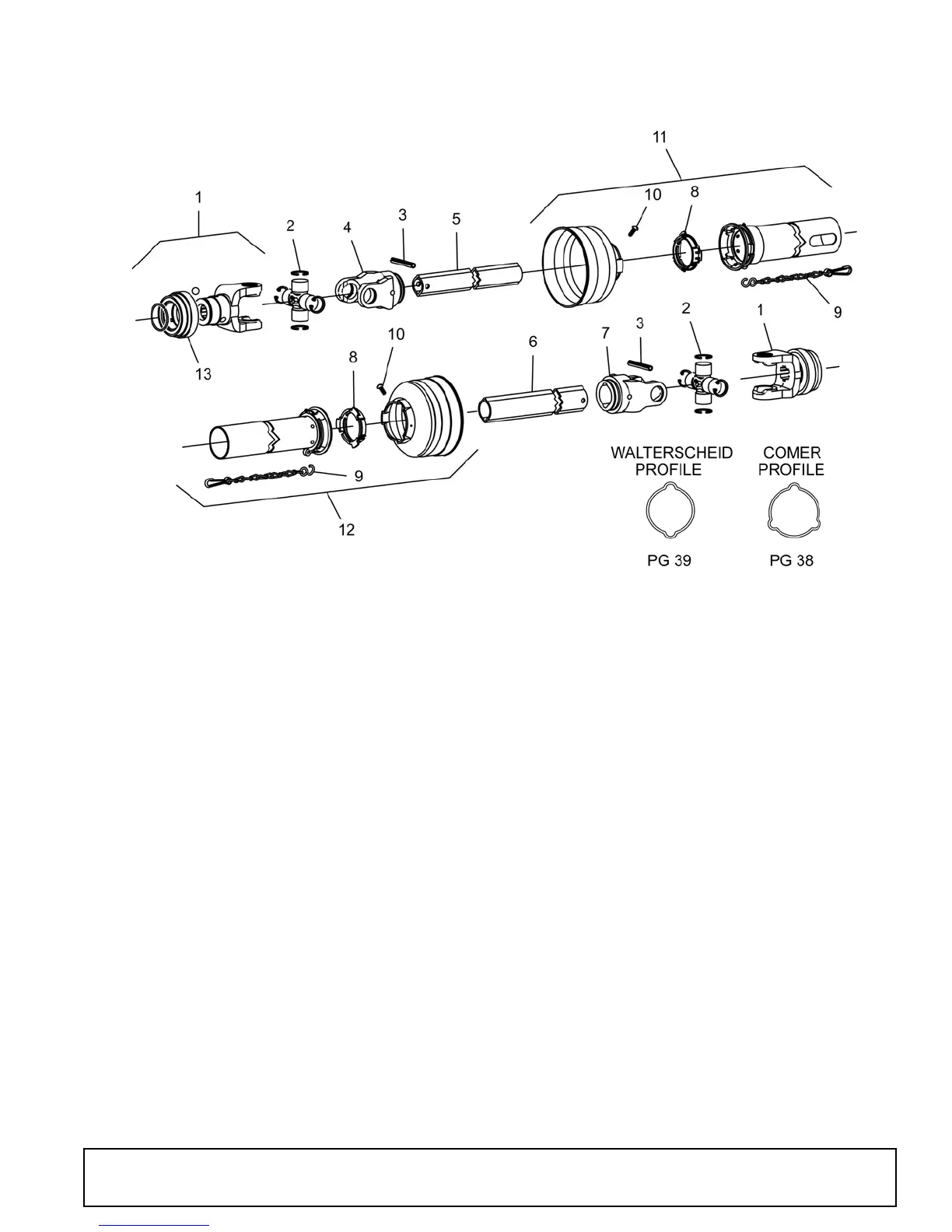

RDC54, RD60 & RD72 DRIVESHAFT
WALTERSCHEID (TWO-LOBE SHAFT)
REF PART QTY DESCRIPTION
A 1008098 1 Complete driveline RDC54 -or-
B 1008099 1 Complete driveline RD60, RD72
1 40571 2 Yoke, 1-3/8 - 6-Spline QD
2 154 2 U-Joint repair kit L14R
3 40775 2 Pin, spring 10 mm x 65 mm
4 40572 1 Yoke, inner profile
5 40583 1 Drive tube, inner profile
6 40592 1 Drive tube, outer profile
7 40573 1 Yoke, inner profile
REF PART QTY DESCRIPTION
8 40776 2 Bearing ring, guard
9 40777 2 Chain, guard anti-rotation
10 40778 2 Screw, guard
11 40759 1 Guard, outer half (also includes items 8,
9, 10)
12 40761 1 Guard, inner half (also includes items 8,
9, 10)
13 40589 2 Slide lock collar repair kit (without yoke)
(Rev. 1/12/2007)
