40 Parts
MAN0260 (8/6/2004)

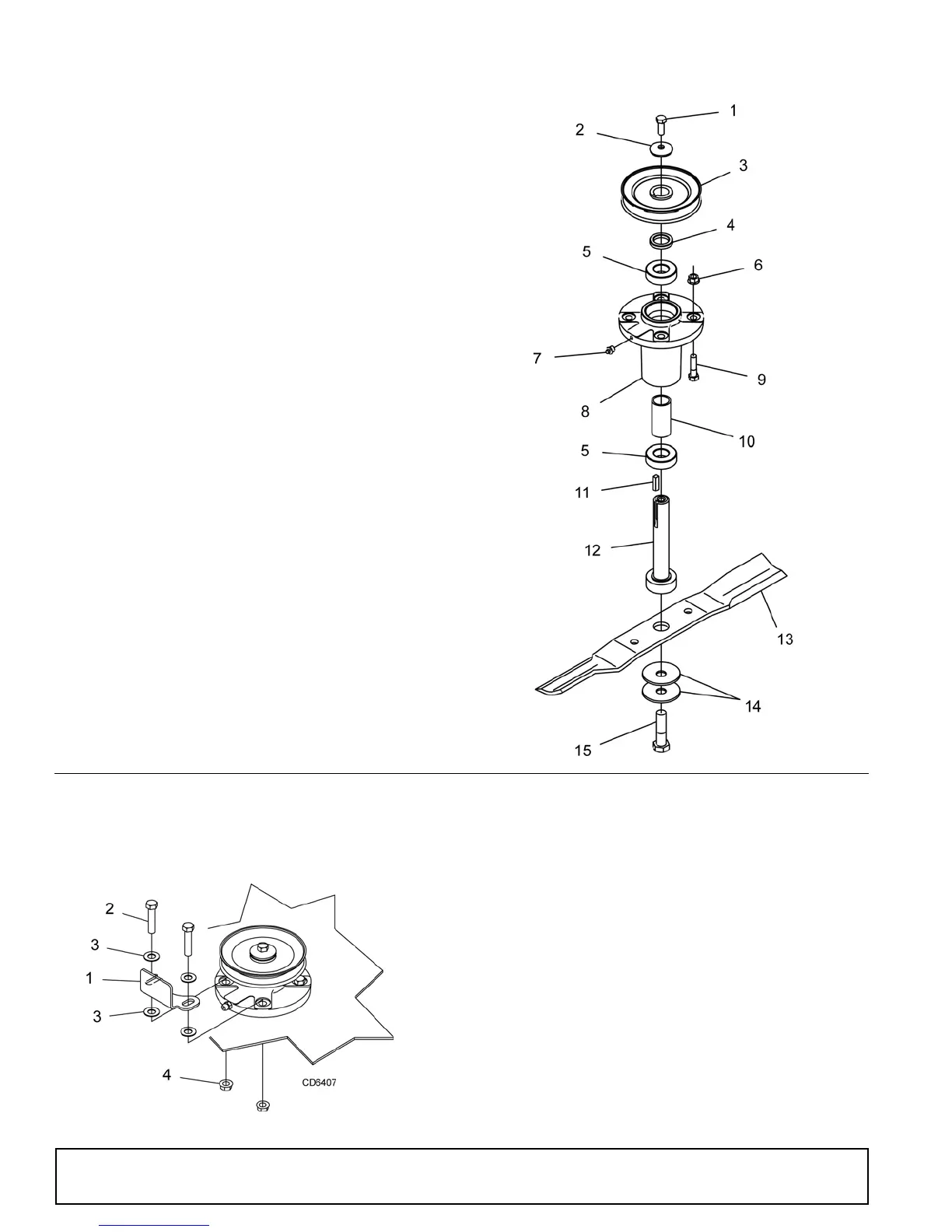

RDC54, RD60 & RD72 BLADE & SPINDLE ASSEMBLY
RDC54, RD60, RD72 BELT GUIDE (OPTIONAL)
REF PART QTY DESCRIPTION
A 1009080 1 Complete spindle assembly (includes
1, 2, 4, 5 through 12, 14 & 15)
1 64518 1 3/8 NF x 1 HHCS GR5
2 70005 1 Cup washer
3 1008059 1 Sheave (RDC54) -or-
3 1008057 1 Sheave (RD60) -or-
3 1008040 1 Sheave (RD72)
4 1008055 1 Spacer
5 72933 2 Spindle bearing
6 14350* 4 3/8 NC Flange locknut
7 1972* 1 1/4 Tapered grease fitting
8 1008053 1 Spindle housing
9 976* 4 3/8 NC x 1-1/2 HHCS GR5
10 1008052 1 Spacer
11 70072* 1 Square key
12 1008042 1 Shaft assembly
13 78127KT 1 Blade kit, high suction 18.7" (includes
3 blades)(RDC54) -or-
13 1001513KT 1 Blade kit, high suction 21" (includes 3
blades)(RD60) -or-
13 1008199KT 1 Blade kit, high suction 25" (includes 3
blades)(RD72)
14 10635 2 Cup washer
15 1008095 1 5/8 NF x 2 HHCS GR5
* Standard Hardware - Obtain Locally
REF PART QTY DESCRIPTION
A 1008181 1 Belt guide kit
1 N/A 1 Belt guide
2 3231* 2 3/8 NC x 2 Cap screw GR5
3 21575* 4 3/8 SAE Flat washer
4 14350* 2 3/8 NC Flange lock nut (not included)
