To raise front of mower, move spacers under front
caster wheel arms.

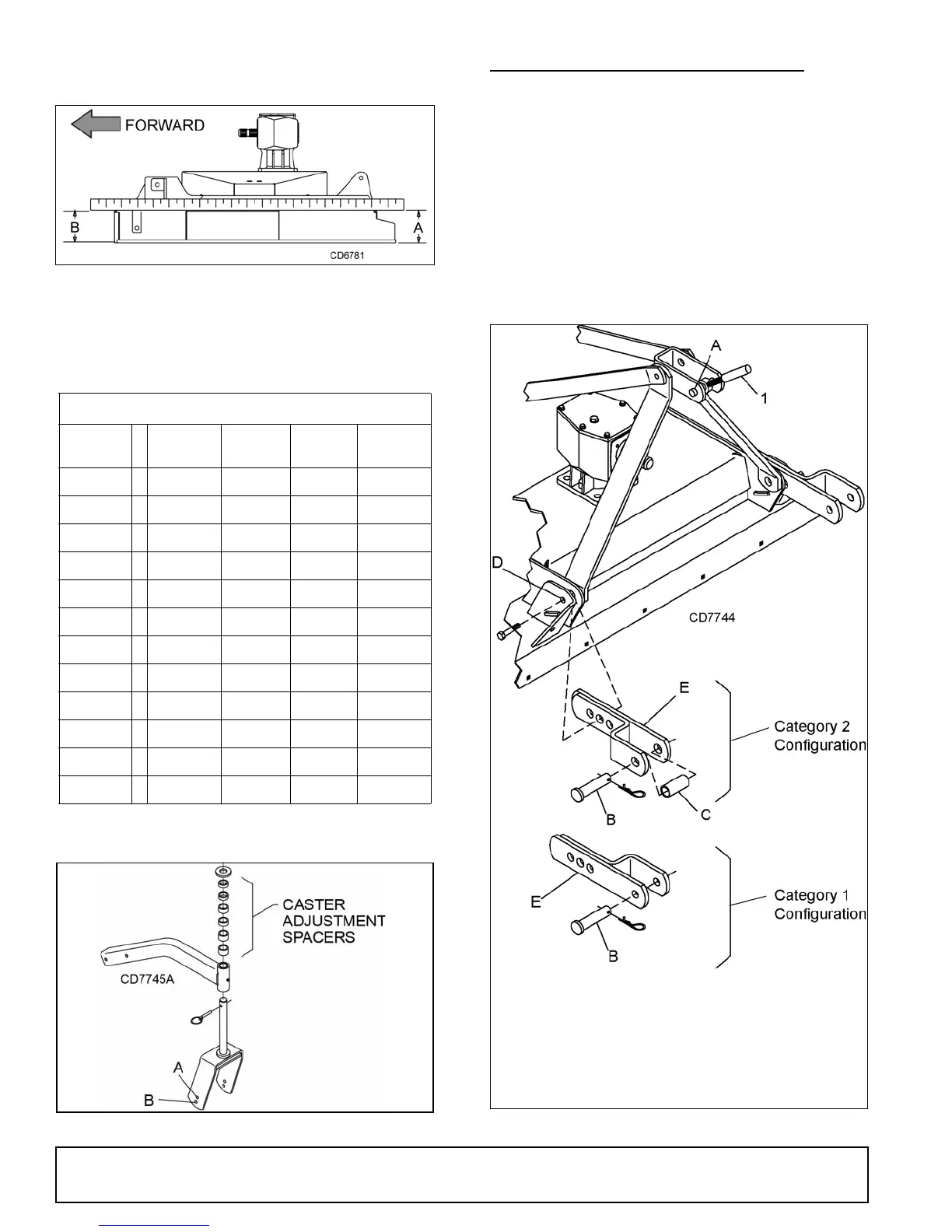

Figure 4
. Cutting Height Adjustment
Remember, measurement at location A (Figure 4)
should not be less than location B and should not be
over 1/2" greater than location B.
Figure 5
. Cutting Height Chart
Figure 6
. Height Adjustment with Caster Arm Spacers
TRACTOR TOP LINK ADJUSTMENT
When the cutting height is set, adjust tractor top link
until mower top link attachment point (A) is aligned ver-
tically with mower hitch pin (B), Figure 7.
Adjust tractor top link so mower is level between caster
wheel and ground (dimension C), Figure 8. This will
allow the mower to follow ground contour.
The mower has three lower hitch plate attachment
points (D), Figure 7. It may be necessary to change the
mower hitch plate attachment point to obtain proper tire
clearance and/or lift height.
Figure 7
. Top Link Adjustment
Cut
Height
Axle
Position
1/2"
Spacer
3/4"
Spacer
1"
Spacer
1-1/2"
A
2"
A1
2-1/2"
A1
3"
A1 1
3-1/2"
A2
4"
A1 2
4-1/2"
A2 2
5"
A22
5-1/2"
A122
6"
A222
6-1/2"
B122
7"
B222
Spacers under caster arm pivot
tube
1. Tractor top link
A. Mower top link attachment point
B. Mower hitch pin
C. Category 2 sleeve
D. Lower hitch arm attachment point
E. Mower hitch arm
