Operation 23
MAN0943 (11/1/2013)

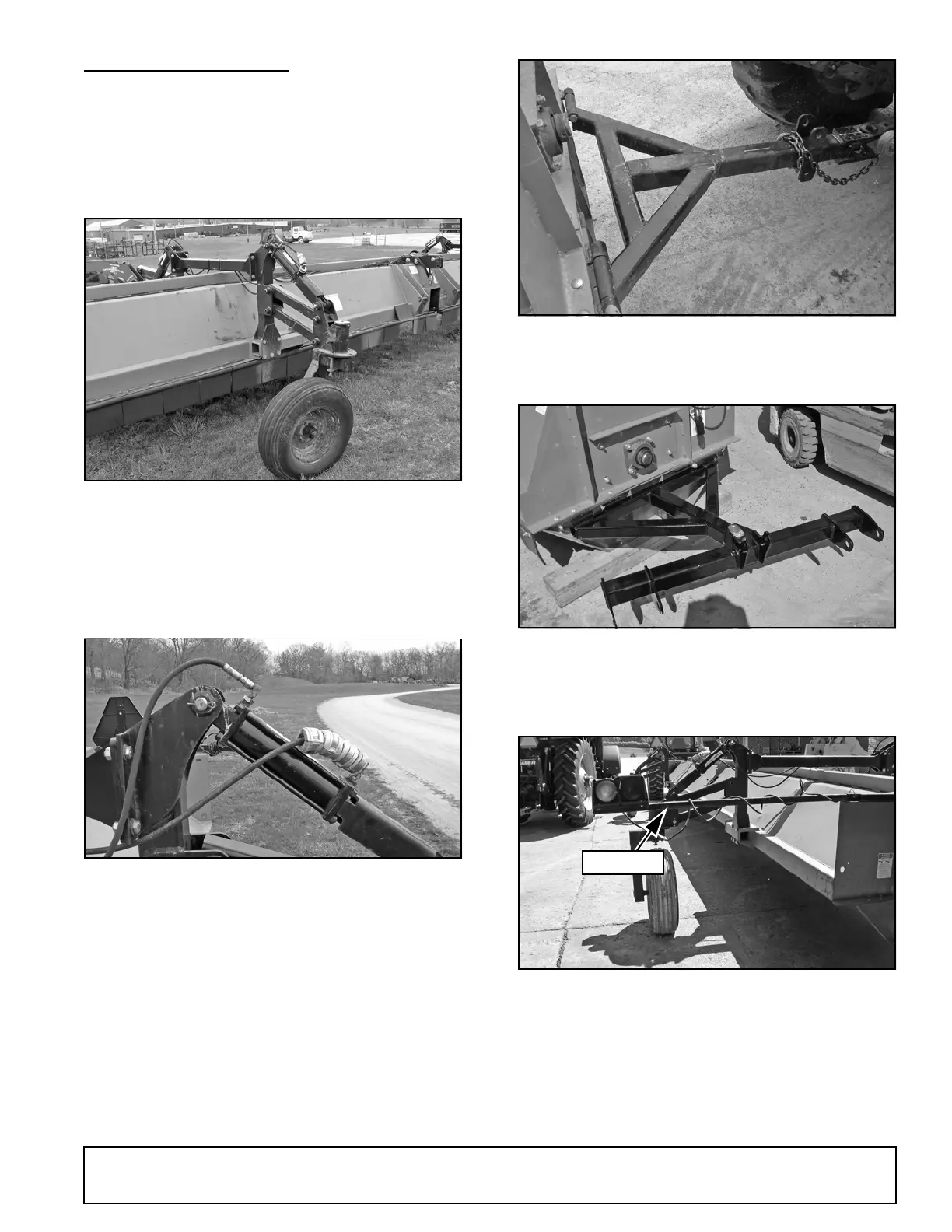

END TOW OPERATION
3-Point Mounted Models:
1. While shredder is attached to 3-point hitch on
tractor user 3-point to lift all four wheels off ground.
Rotate and lock two wheels on right end of
shredder in end transport position as shown in
Figure 19.
Figure 19. Transport Position
2. Set shredder back on all four wheels using 3-point.
Raise all shredder lift cylinders to maximum lift
height. Flip transport locks into transport position
(see Figure 20). Lower cylinders into transport
lock. Make sure all four cylinders have bottomed
out.
Figure 20. Transport Lock
3. Unhook hydraulic hoses, PTO shaft, and 3-point
hitch. Secure hoses and PTO shaft for end
transport.
4. Move tractor from operating position to end tow
position. Hook hitch to drawbar.
Figure 21. End Tow - Drawbar
5. An end tow hitch is also available as optional
equipment for hooking shredder to quick hitch.
Figure 22. End Tow - Quick Hitch
6. Slide light bar out to match the widest width of
shredder and pin into position. Attach light harness
to tractor outlet.
Figure 23. Light Bar
■
Do not exceed 20 MPH while transporting
shredder.
