24 Operation
MAN0943 (11/1/2013)
END TOW OPERATION
Pull-Type Models
1. Raise all shredder lift cylinders to maximum lift
height. Flip transport locks into position (see Figure
16). Lower cylinder on to transport lock. Make sure
all cylinders have bottomed out.
2. Unhook hydraulic hose, PTO drive, and drawbar
pin. Secure hoses and PTO drive for transport. Lift
tongue and rotate into position on shredder body
as shown in Figure 24.
3. Move tractor from operating position to end tow
position. Hook hitch to drawbar. (See Figure 21).
4. Pull shredder ahead enough to rotate casters to
trailing position. Lock rear casters in transport
position as shown in Figure 19.
5. Slide light bar out to match width of shredder and
pin in position. Attach light harness to tractor. (See
Figure 23).

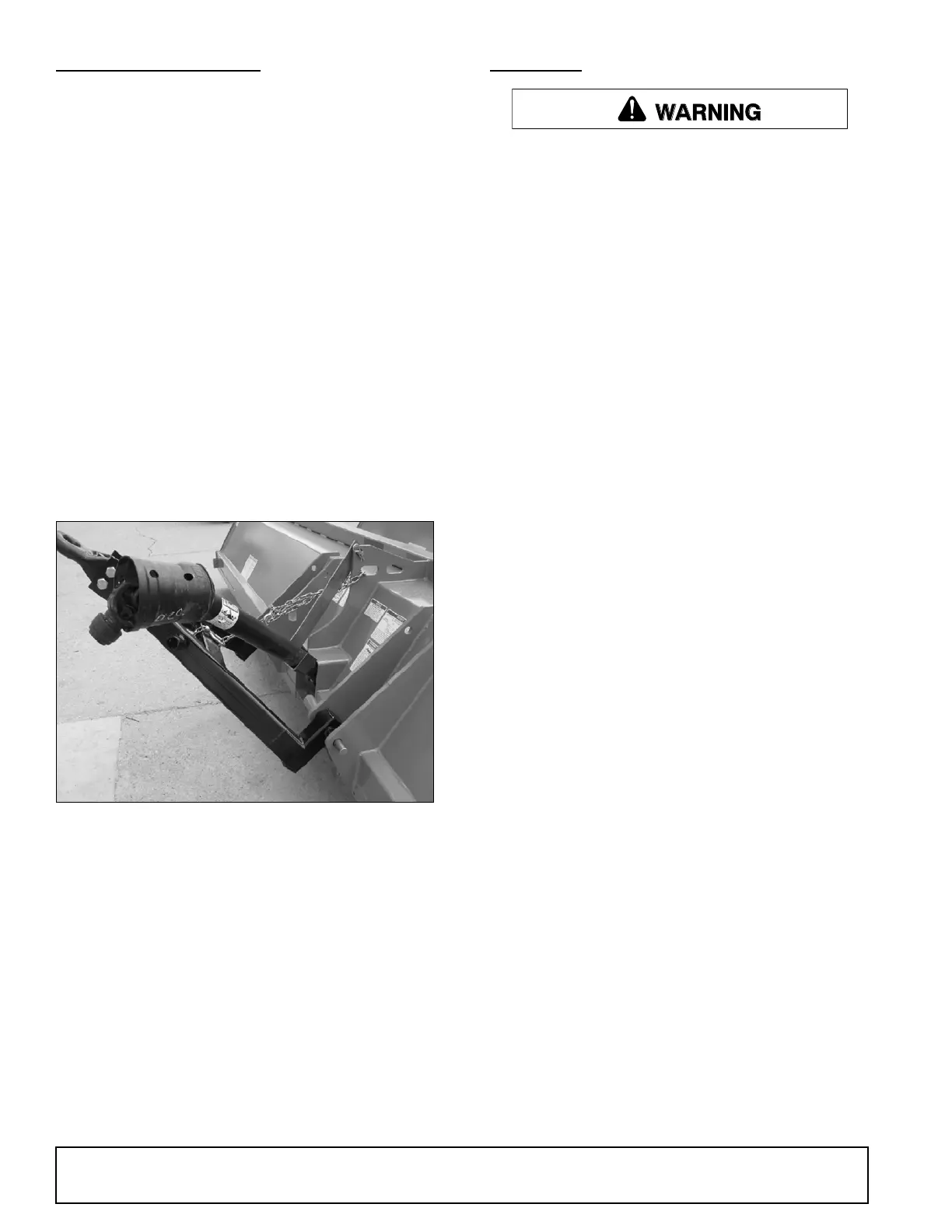

Figure 24. Drawbar and PTO in Transport Position
STORAGE
Block equipment securely for storage.
Keep children and bystanders away from stor-
age area.
At the end of the season, the shredder should be thor-
oughly inspected and prepared for storage. Repair or
replace any worn or damage components to prevent
unnecessary down time at the beginning of the next
season.
To ensure a long, trouble-free life, prepare the unit for
storage by carrying out the following procedure:
1. Clear the area of bystanders, especially children.
2. Thoroughly wash the unit, using a pressure washer
to remove all dirt, mud, debris, and residue. See
Cleaning instructions on page 22.
3. Inspect the flails and rotors for damage or
entangled material. Remove entangled material.
Repair or replace damaged parts.
4. Inspect all hydraulic hoses, lines, couplers, and
fittings. Tighten all loose fittings. Replace any hose
that is cut, nicked, abraded, or separating from the
crimped end of a fitting.
5. Change gearbox oil.
6. Lubricate all grease fittings. Make sure all grease
cavities have been filled with grease to remove any
water residue from pressure washing.
7. Touch up all paint nicks and scratches to prevent
rust.
8. Move to storage area. Select a dry area free of
debris. Store in an area away from human activity.
9. Unhook from tractor (see Removing Shredder from
Tractor, page 18).
10. Place safety stands or large blocks under the
frame to take the load off the tires. NOTE: Do not
deflate tires.
11. If the unit cannot be placed indoors, cover with a
waterproof tarpaulin and tie securely. Store away
from human activity.
12. Do not allow children to play on or around the
stored unit.
