Service & Maintenance 27
MAN0943 (11/1/2013)

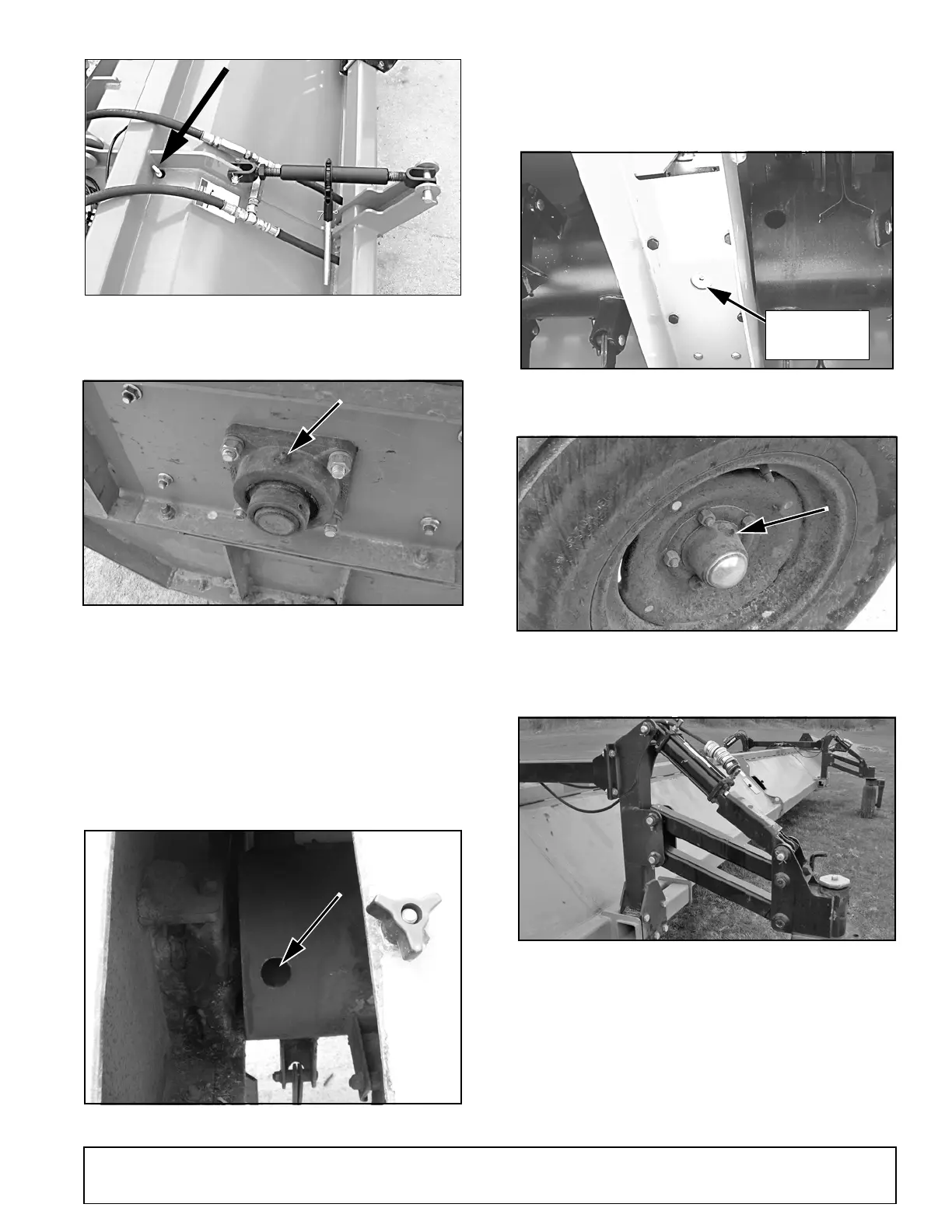

Figure 27. Gearbox Oil Fill Location
Figure 28. Rotor End Bearing
Lubrication Point
Every 40 hours of operation - Figure 29
1. Lubricate rotor drive couplers next to the couplers
on underside of unit and inside of flail tube (access
through windows on back panel of shredder).
2. Grease the drive hubs with 10 to 20 pumps. You
may use extra grease only on drive hubs.
Figure 29. Drive Couplers and Hubs
Annually
1. Change gearbox oil. Refill with SAE 85W90 gear
oil. Capacity: 3-1/2 U.S. quarts (110 oz.). See
Figure 30.
Figure 30. Gearbox Oil Drain Location
2. Repack wheel bearings. See Figure 31.
Figure 31. Wheel Bearings
3. Lubricate pivot tube (2 locations each pivot tube).
See Figure 32.
Figure 32. Pivot Tube Lubrication Points
(Rev. 2/1/2016)
