Woods S20CD - Page 53

Parts 53
MAN0943 (11/1/2013)

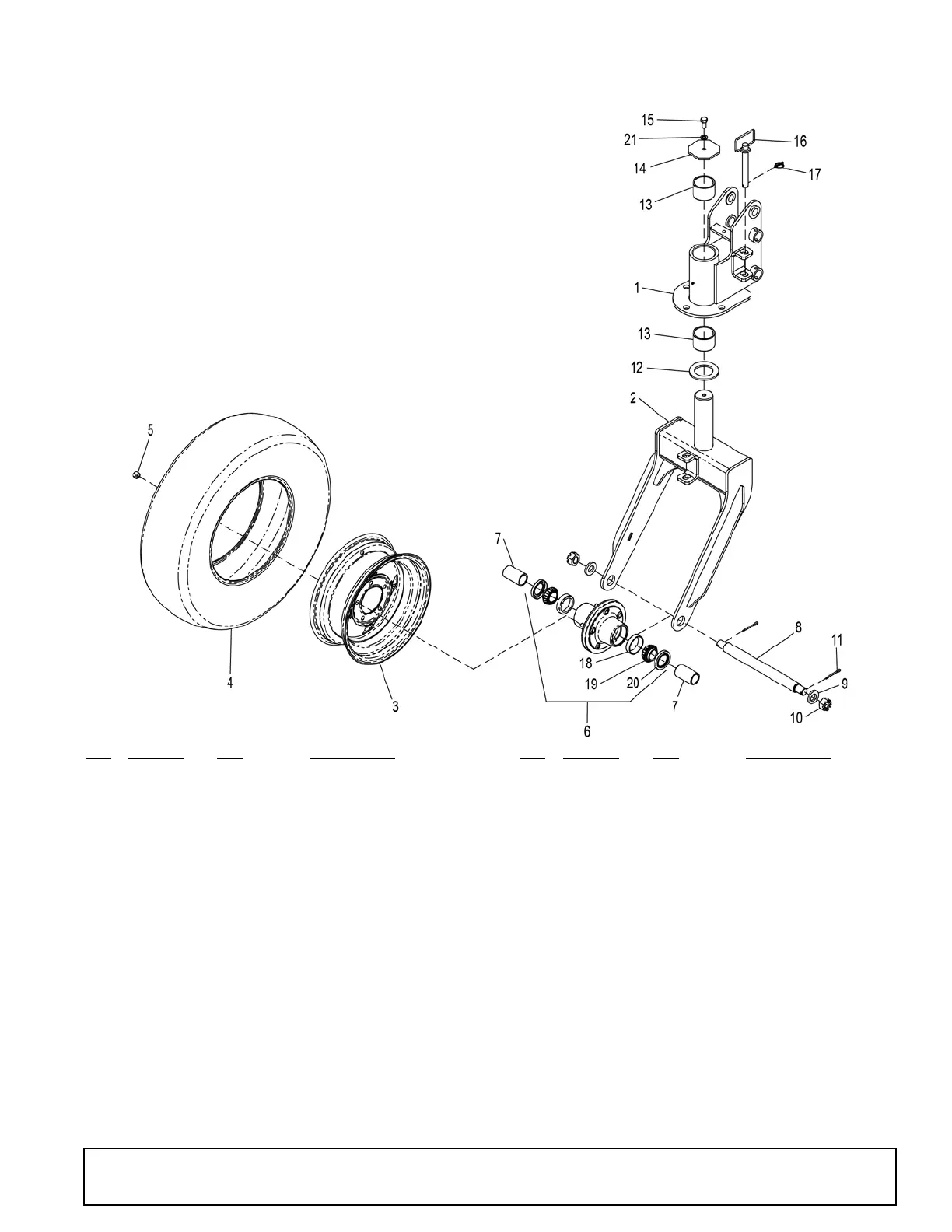

STRUT AND CASTER WHEEL ASSEMBLY
(CLEVIS STYLE)
REF PART NO QTY DESCRIPTION
1 1029554 1 Caster pivot (Includes Item 13)
2 1041898 1 Caster & hub assembly
2 1040978 1 Caster weldment
3 1041045 1 Wheel rim (15" x 8 5 bolt)
4 1041044 1 Tire, 11L x 15
5 35317 5 1/2 NF Wheel bolt
6 1041000 1 Hub, 5 bolt
(Inc. items 5, 18, 19 & 20)
7 1041005 2 Spacer
8 1041001 1 Axle
9 11920 2 Washer, 1 x 1-7/8 x 1/4
10 1006861 2 1"-8 UNC Hex slotted nut
11 64803 * 2 3/16 x 2 Cotter pin
12 20031233 1 Oilite washer
13 20031766 2 Bearing, caster pivot
14 20031219 1 Retainer plate
15 25475 * 1 1/2 NC x 1 HHCS, GR5
REF PART NO QTY DESCRIPTION
16 90025030 1 3/4 x 6 Hitch pin
17 22411 * 1 3/16 x 1 Klik pin
18 7069 2 Bearing cup
19 1041042 2 Bearing cone
20 1041043 2 Seal
21 855 * 1 1/2 Lock washer
HHCS Hex Head Cap Screw
* Standard Hardware, Obtain
Locally
(Rev. 7/25/2015)
