54 Parts
MAN0943 (11/1/2013)

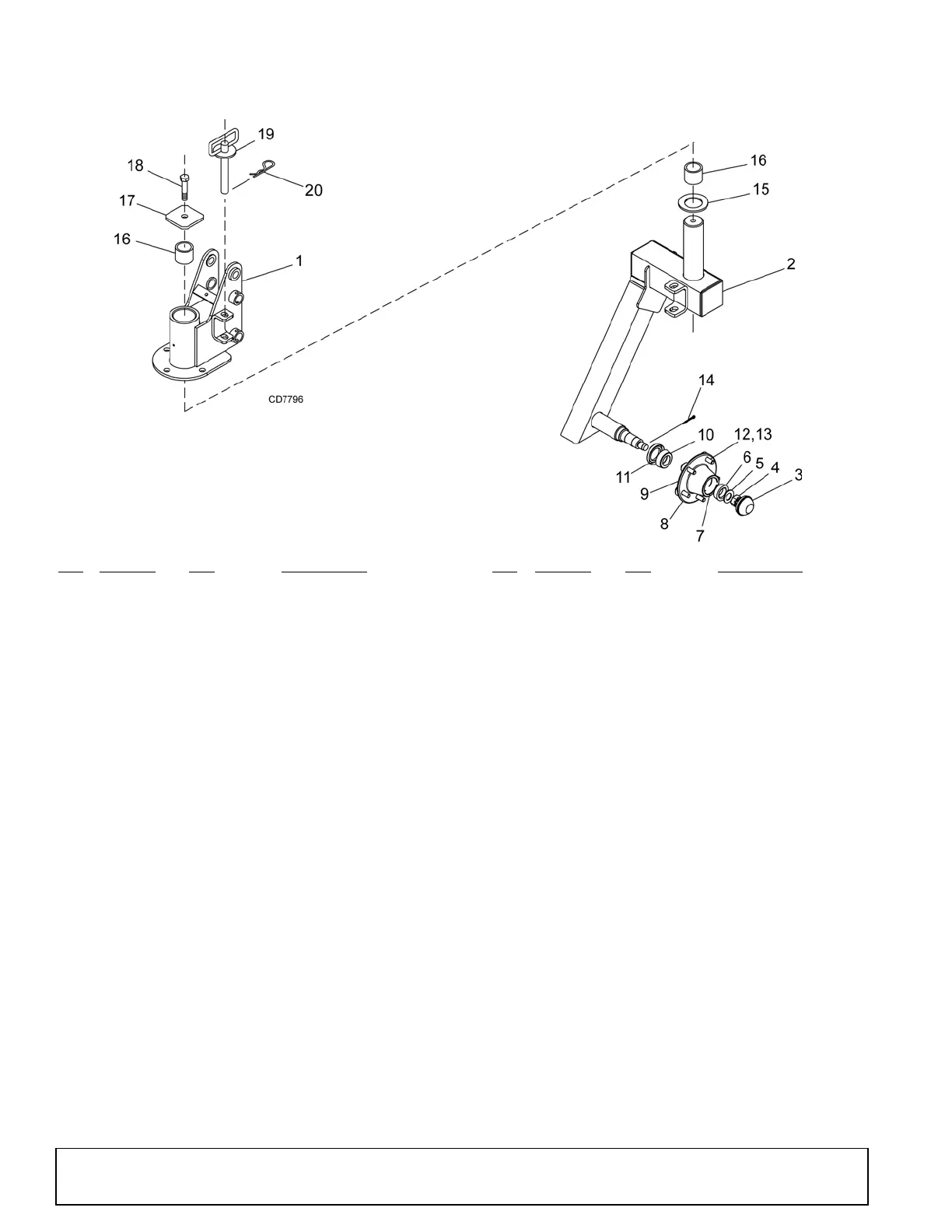

STRUT AND CASTER ASSEMBLY
(CANTILEVER STYLE)
REF PART NO QTY DESCRIPTION
1 1029554 4 Caster Pivot Assembly
2 1030508 4 Caster Assembly
3 90509009 4 Dust Cap
4 20378 4 7/8 NF Slotted Nut
5 28539 4 7/8 Washer
6 2303 4 Bearing Cone
7 90101016 4 Bearing Cup
8 90509003 4 Hub, 5-Bolt
9 90101022 4 Bearing Cup
10 2717 4 Bearing Cone
11 90109002 4 Seal
12 90509117 20 1/2 NF x 1-7/8 Wheel Stud
13 90509011 20 1/2 NF Wheel Nut
14 1266 4 3/16 x 1-1/2 Cotter Pin
15 20031233 4 Oilite Washer
REF PART NO QTY DESCRIPTION
16 20031766 8 Bearing, Caster Pivot
17 20031219 4 Retainer Pin
18 90001221 4 1/2 NF x 1 HHCS, GR5
19 90025030 2 3/4 x 6 Hitch Pin
20 22411 4 3/16 Klik Pin
N/S 90509070 4 Tire, 9.5L x 15
N/S 90509078 4 Wheel Rim 15 x 6, 5-Bolt
N/S Not Shown
HHCS Hex Head Cap Screw
* Standard Hardware, Obtain
Locally
(Rev. 10/30/2014)
