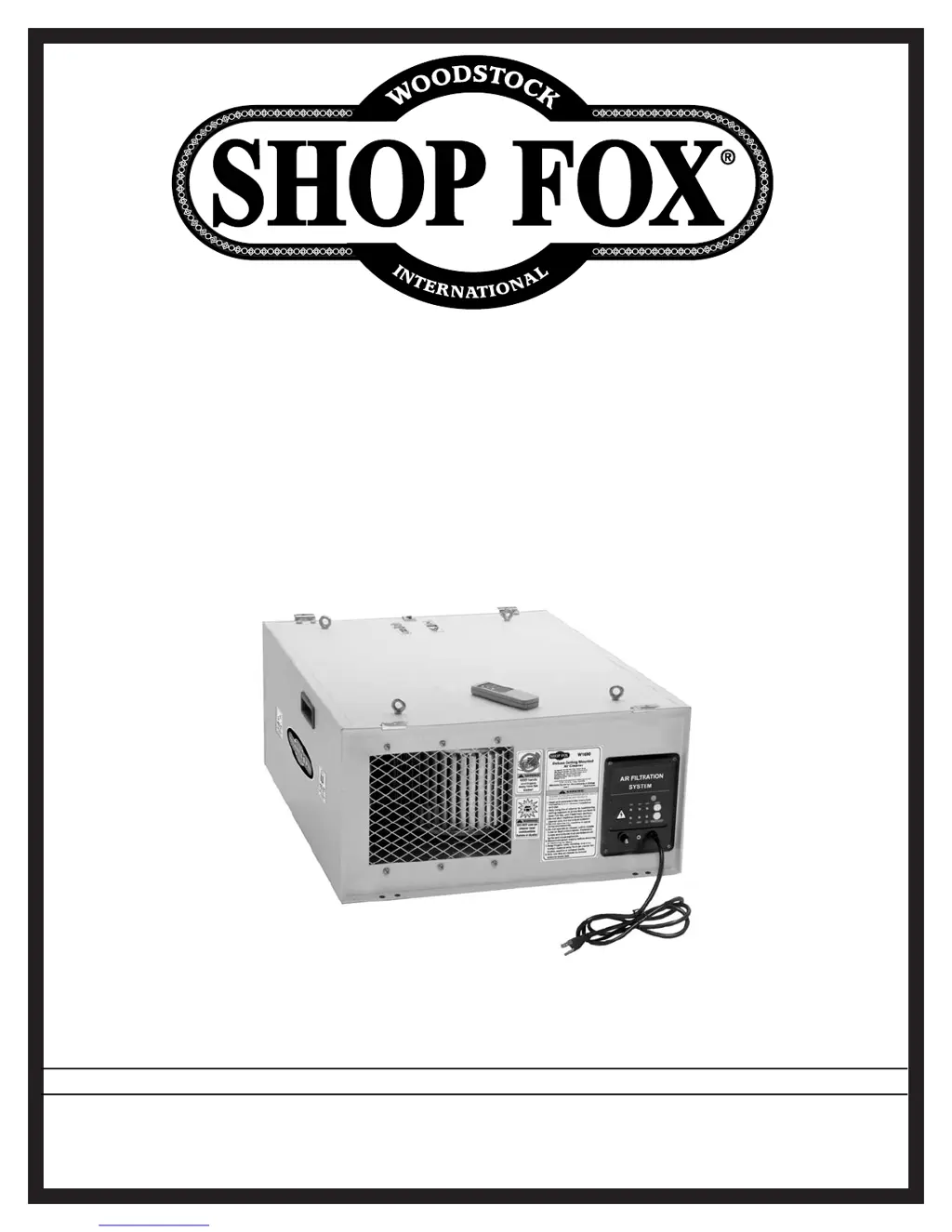

INSTRUCTION MANUAL
MODEL W1690
DELUXE CEILING MOUNTED
AIR CLEANER
Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz
COPYRIGHT © FEBRUARY, 2003 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China

Table of Contents

Questions and Answers

  • L
    Lucas ObrienJul 26, 2025
    What to do if my Woodstock W1690 does not operate at all?
    • A
      Ariel BennettJul 26, 2025
      If your Woodstock Air Cleaner isn't operating, several issues could be the cause. First, check if the power supply circuit breaker has tripped and correct any high current draw before resetting it. If that's not the issue, a fuse in the control panel might be blown, and you should replace it. Faulty wiring can also prevent operation; inspect and repair or replace any damaged wires, plugs, or cables, ensuring all connections are secure. In some cases, the control panel circuit board or the motor itself may be defective, requiring replacement.
  • G
    Gabrielle ColemanAug 2, 2025
    Why is the CFM output reduced in my Woodstock W1690 Air Cleaner?
    • J
      Jennifer LeeAug 2, 2025
      Reduced CFM output in your Woodstock Air Cleaner can stem from several causes. Start by checking the filters; if they're wet or clogged, replace the primary filter and clean the secondary filter. An obstructed airflow path could also be the culprit; remove any obstructions or consider adding ducting to improve airflow. In some instances, a faulty control panel circuit board or motor may be responsible, necessitating their replacement.
  • E
    Erica WeaverAug 10, 2025
    What to do if the remote control does not operate my Woodstock W1690?
    • C
      Christian MartinezAug 10, 2025
      If the remote control isn't working with your Woodstock Air Cleaner, but the control panel is fine, start by checking the remote's batteries and replace them if needed. Ensure there's a clear line of sight between the remote and the infrared sensor on the control panel. If those steps don't work, the remote itself might be faulty and need replacing. In rare cases, the control panel circuit board could be the issue, requiring replacement.
  • J
    Joseph WilsonAug 17, 2025
    How to fix a noisy or vibrating Woodstock Air Cleaner unit?
    • M
      montoyacameronAug 17, 2025
      If your Woodstock Air Cleaner is making excessive noise or vibrating, begin by ensuring the mounting is secure. Tighten the flange brackets and reinstall the unit if necessary. Check if the unit is level and adjust as needed. Also, the fan or motor might be loose; unplug the unit, remove the filters, and tighten any loose fasteners.

Summary

Introduction

About Your New Deluxe Ceiling Mounted Air Cleaner

Provides an overview of the Model W1690 Air Cleaner's features, design, and benefits.

Woodstock Service and Support

Offers contact information and details for Woodstock International's customer service and technical support.

Safety

Standard Safety Instructions

Presents general safety guidelines and precautions for operating machinery and maintaining a safe workshop environment.

Additional Safety Instructions for Air Cleaners

Lists specific safety warnings and best practices unique to the operation of air cleaner units.

Electrical

110 V Operation

Details the 110V, single-phase power requirements and considerations for the air cleaner unit.

Extension Cords

Provides guidelines and requirements for selecting and using extension cords with the air cleaner.

Grounding

Explains the importance of proper grounding for electrical safety and how to ensure it.

Installation

Unpacking

Guides users through the process of safely unpacking the air cleaner and checking for damage or missing parts.

Box Contents

Lists all items included in the product packaging to help users inventory parts before installation.

Shop Preparation

Outlines necessary preparations and considerations for the workshop environment before installing the unit.

Dust System Integration

Discusses how the air cleaner works with a dust collection system and its limitations.

Installation Beginning

Introduces the three primary mounting options available for the air cleaner unit.

Table-Top Mount

Provides step-by-step instructions for setting up the air cleaner for portable table-top use.

Hanging Mount

Details the procedure for securely mounting the air cleaner unit overhead via suspension.

Flush Mount

Explains how to install the air cleaner flush against a wall or ceiling using flange brackets.

Operation

Overview of Operation

Describes the basic functionality and air filtration process of the air cleaner.

Control Panel Functions

Details the manual controls on the unit for power, fan speed, and status indicators.

Remote Control Operation

Explains how to use the remote control for convenient operation and setting features.

Troubleshooting Common Issues

Offers solutions to common problems encountered with the air cleaner's performance or operation.

Maintenance

Filter Maintenance

Provides instructions on how to change and service the primary and secondary air filters.

Closure

Warranty and Return Policy

Outlines the terms of the product warranty and the procedures for returns or exchanges.

Additional Information Sources

Suggests external resources like trade journals and libraries for further product knowledge.

Parts

Parts Diagram

An illustrated exploded view of the air cleaner showing all components with reference numbers.

Parts List

A comprehensive list of all replaceable parts, including part numbers and descriptions.
