6�2 Assembling
See Section 11.1 on page 56 for tightening torques.

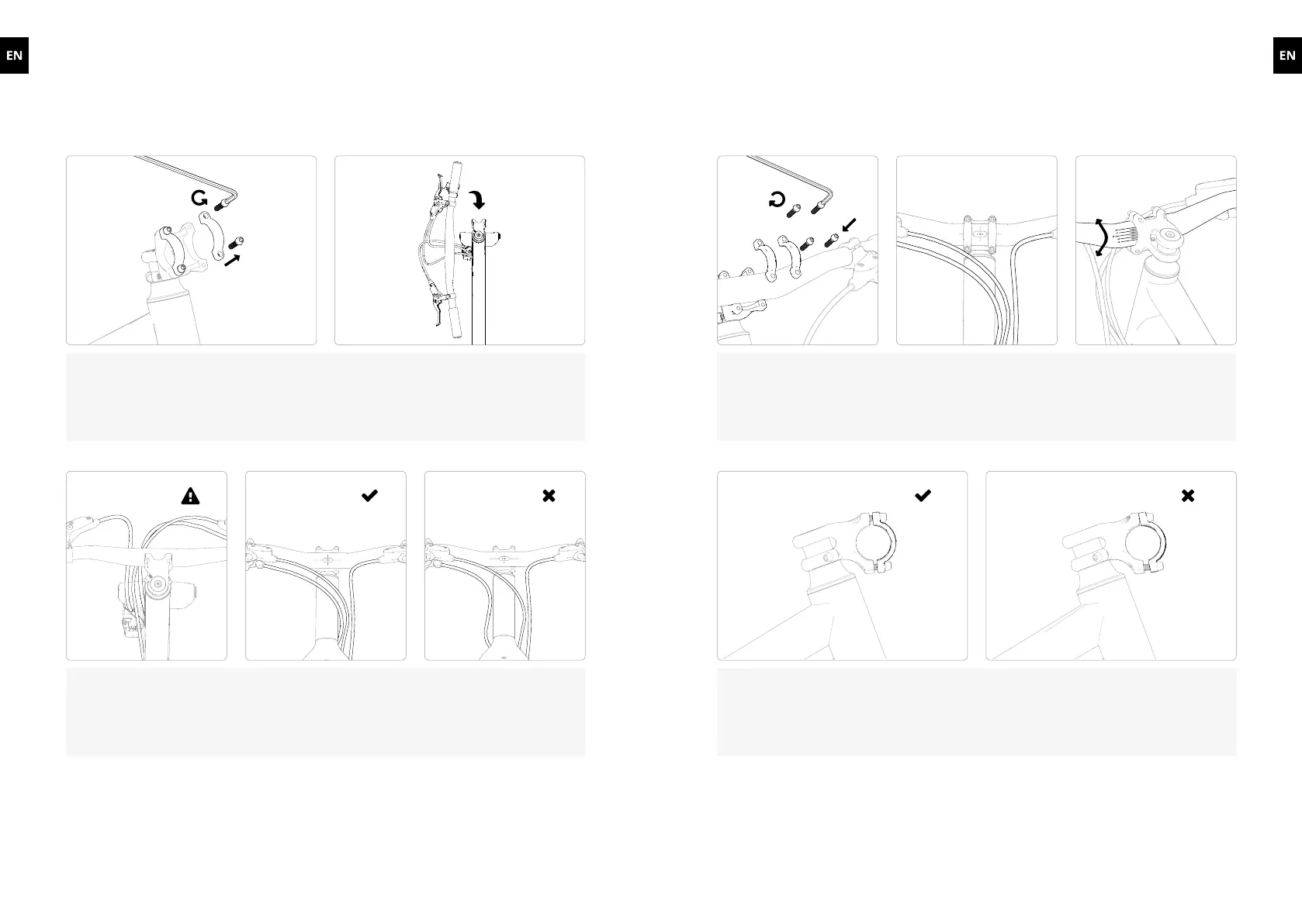

Mounting the handlebar
Unscrew the clamps from the stem. Turn the handlebar 90° clockwise and insert into
the stem.
ATTENTION
The brake cables and the shift cable must be to the left of the head tube.
HINT
Make sure that the gap between clamps and stem is the same at the top and bottom!
Screw on the clamps, tighten
the screws only slightly.
The cross mark must be in
the middle between the two
clamps.
Adjust the tilt of the handlebar.
Default setting: 0°. Tighten the
clamps.
4 mm 4 mm
