1. Summary
The Intelligent VLCD-5 is specially designed for e-bikes. It is used to control the power assistance, and
can also show the battery consumption, the speed at which you are travelling, and record the trip distance.
2.Specification
2.Installation

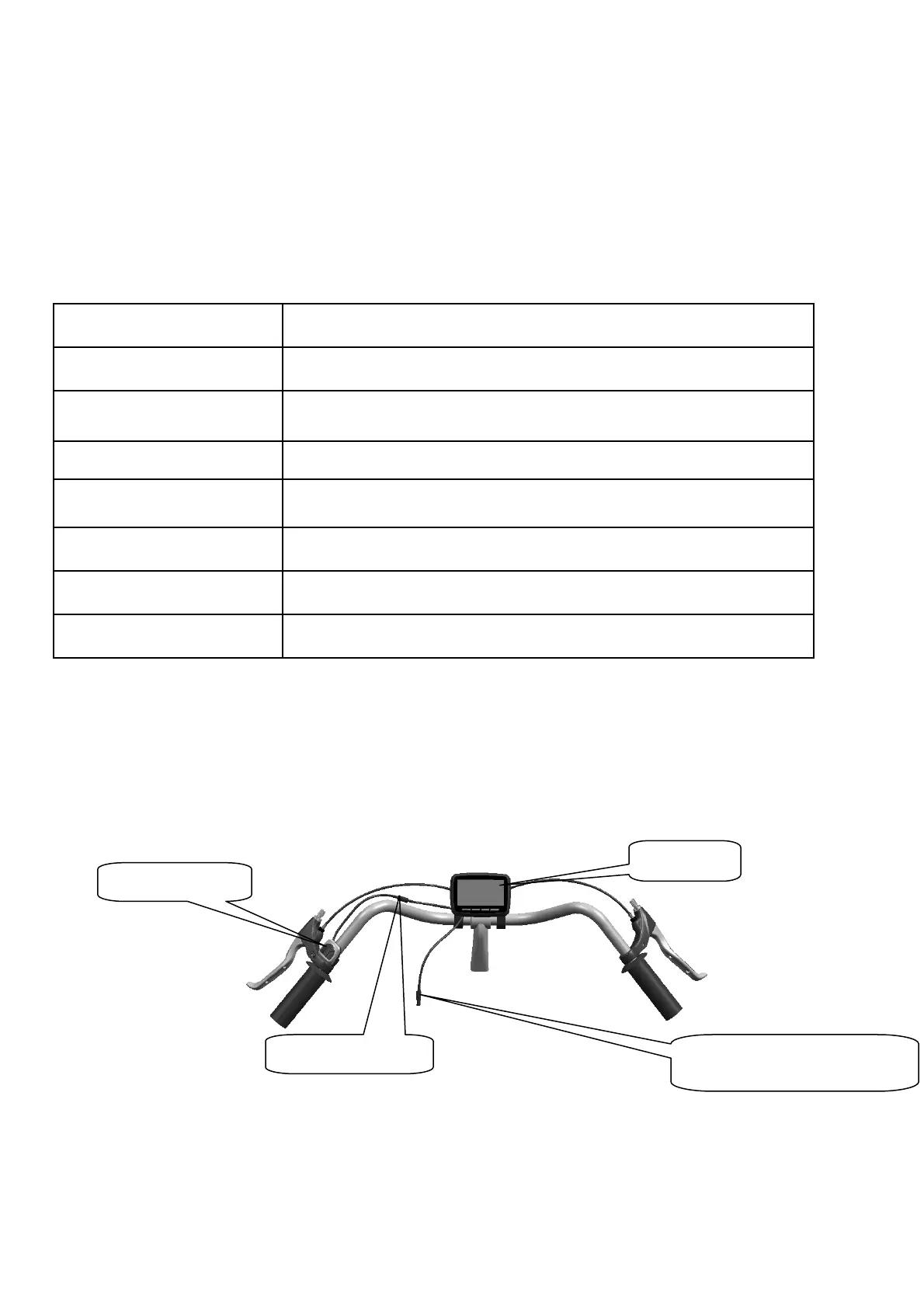

Mount the display and remote panel on the handlebars. Attach the 4 pin connector from the remote panel to the matching
connector from the display.
Type
TypeType
Type
VLCD-5
Working voltage
DC 11V-60V
Max working current
70mA(11V) 32mA(50V)
Display type
21*4 segment LCD
Measuring the speed
1-12 pulses each rotation of wheel
Working temperature
-20
0
C—+70
0
C
Backlight
White LED mode，brightness:200cd/m
2
Dimensions
102.5mm×75.5mm×28mm (exclude thickness of Pedestal)
VLCD5
Remote panel
4 pin connector
6-pin plug - to motor
To Next Page
