Worcester C1

21

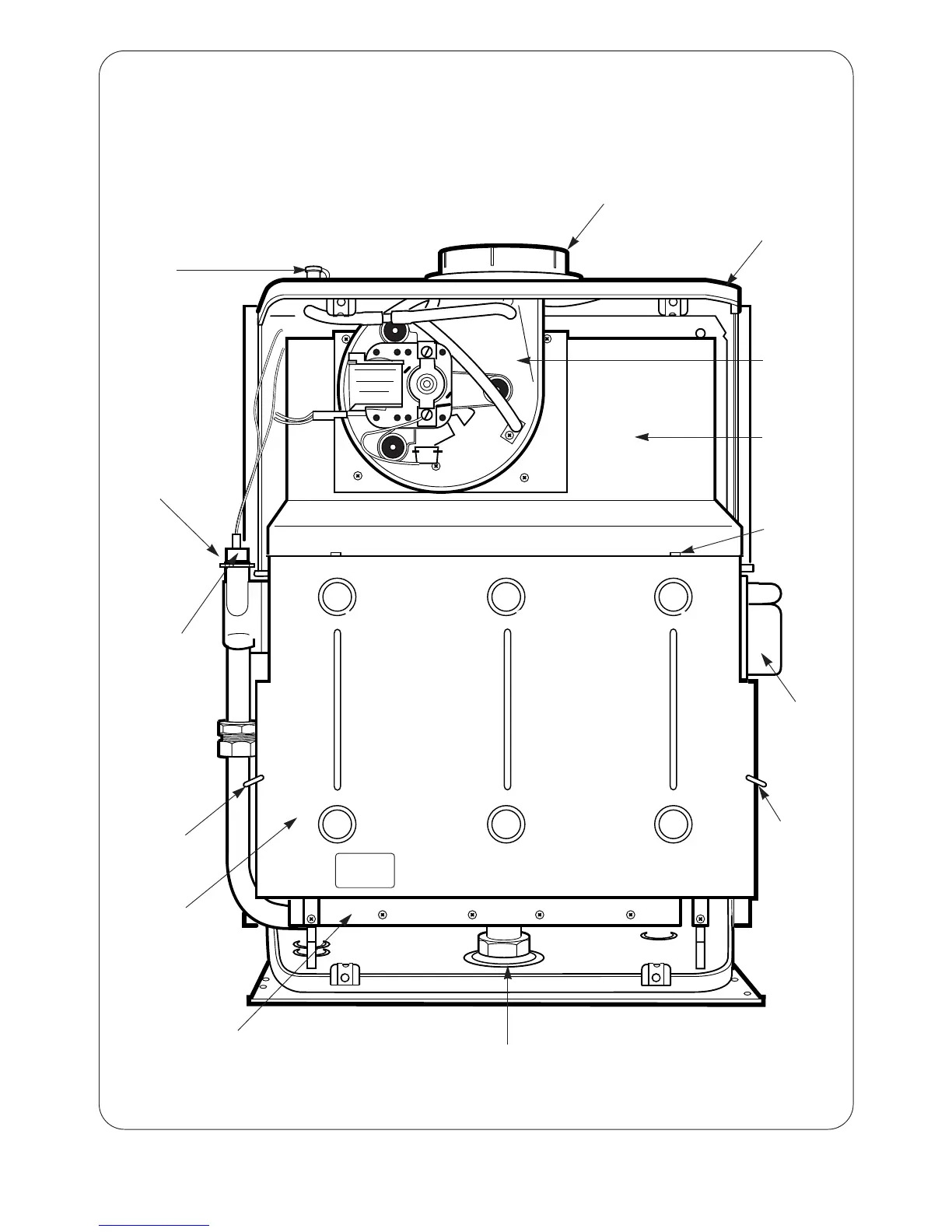

Fig.41. Inner case components
Flue spigot
Inner casing
Fan assembly
Flue hood
Combustion
chamber/flue
hood fixing
screws
Heat
exchanger
Combustion
chamber fixing
screw
Burner
connection
Burner
Combustion
chamber
Primary sensor
Overheat
thermostat
(at rear)
Combustion
products test
point
(front cap)
Combustion
chamber fixing
screw
