Worcester Greenstar 24i System ErP

Fault finding and diagnosis
Greenstar i System
ErP
- 6 720 806 945 (2015/07)
71
8.2.6 Cylinder temperature sensor
8.2.7 Gas valve resistances

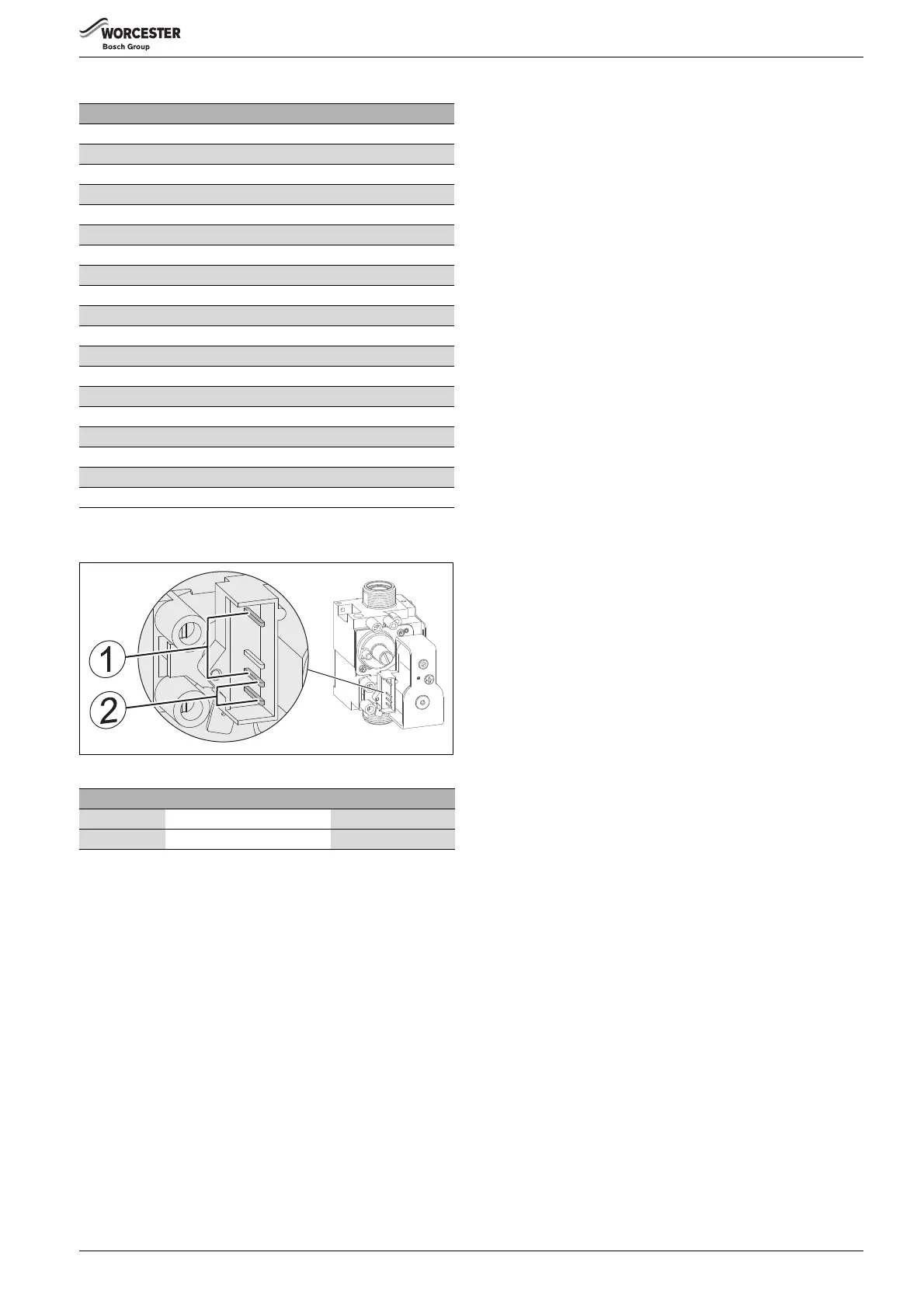

Fig. 96 Gas valve resistances
Resistance ( ) Temperature ( °C)
36,005 0
28,540 5
22,782 10
18,294 15
14,785 20
11,991 25
9,794 30
8,054 35
6,658 40
5,527 45
4,611 50
3,859 55
3,246 60
2,747 65
2,334 70
1,991 75
1,705 80
1,465 85
1,263 90
Table 55 Cylinder temperature sensor
Pins measured from top Resistance ( )
1First and third 6,100
2Third and fourth 900
Table 56
6720806944-90.1Wo
