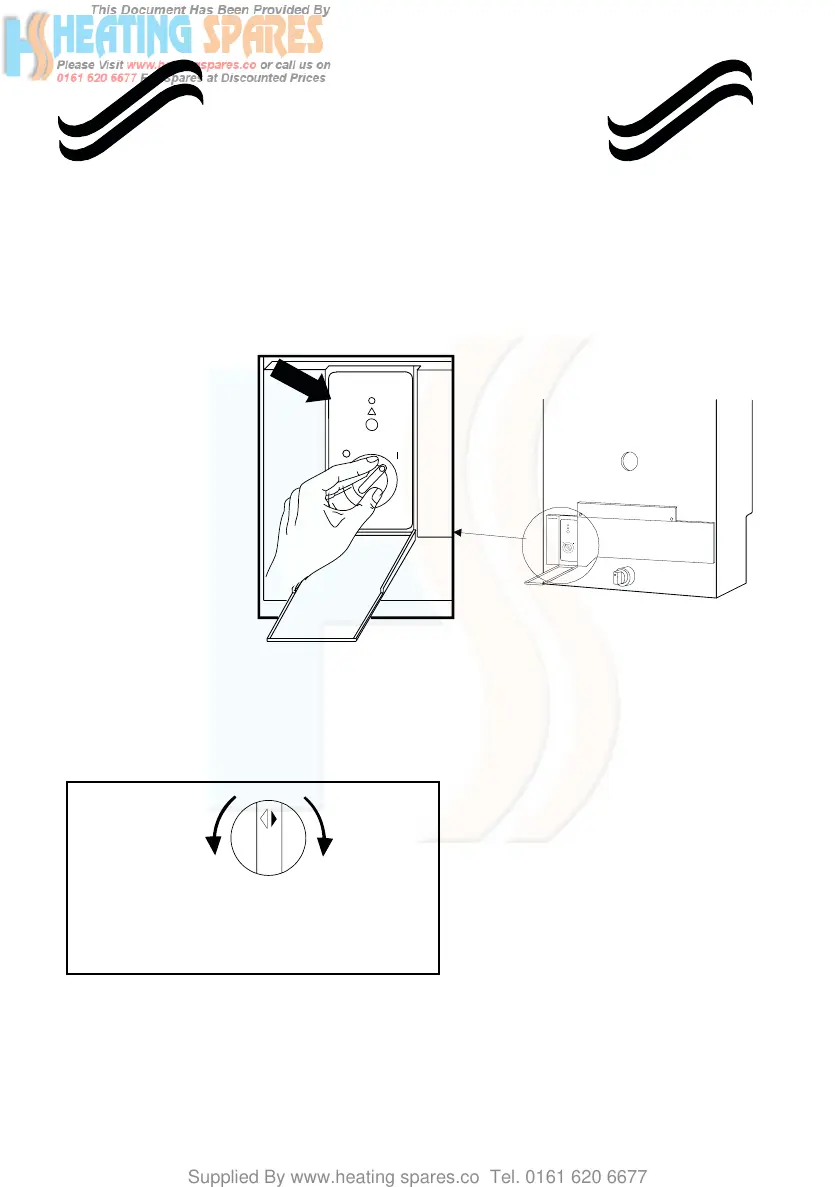

Temperature Control (see fig. 3)
The temperature Control Knob should be turned anti-clockwise to obtain a higher flow
rate of water at a lower temperature rise, or turned clockwise to obtain a higher temperature
rise at a lower flow rate.
Fig. 3
Shut Down (see fig. 2)
When hot water is no longer required, the burner will extinguish. The fan may continue to
run for a short period to dissipate the residual heat from the appliance.
When hot water is required again, the pilot must be re-established.
If, during prolonged inactive periods, there is any risk of freezing, the heater should be
drained by firstly isolating the appliance from the incoming cold water supply (close the
water cock). Then open the taps and drain down.
OPERATION OF
CONTROLS
Operation
Starting up (see fig. 2)
Domestic Hot Water: With a demand for hot water the burner will light and then
automatically adjust its output to maintain the temperature of the delivered water.
Fig. 2
Switching On/Off
Switching On:
Turn the on-off switch to
position “I”
Switching Off:
Turn the on-off switch to
position “0”
