Controls
6 720 610 577 GB (03.02)

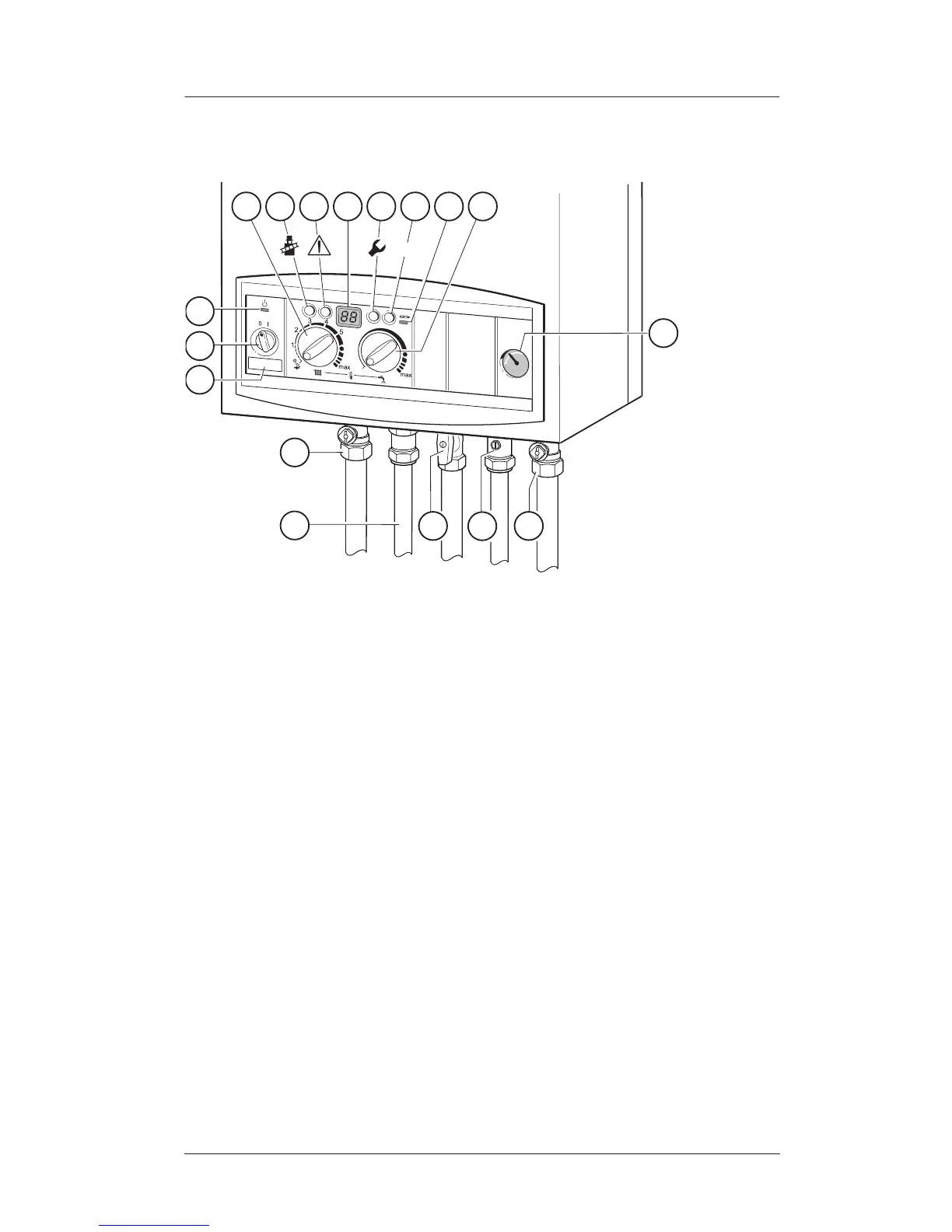

2 Controls
8.1 System Pressure gauge
61 Reset button
135 Master switch
136 Central heating temperature control
170 Service valves in CH flow and return
171 Hot water
172 Gas isolation valve (open)
173 Cold water inlet
295 Identification sticker
310 Hot water temperature control (combi)
317 Display
363 Indicator lamp for “burner on”
364 Indicator lamp for “off/on”
365 “Chimney sweep” button
366 Service button
367 “ECO” button
365
61
317 366 367
ECO
310
364
135
295
136
170
363
172
170
173
6 720 610 577-01.1O
8.1
E
171
