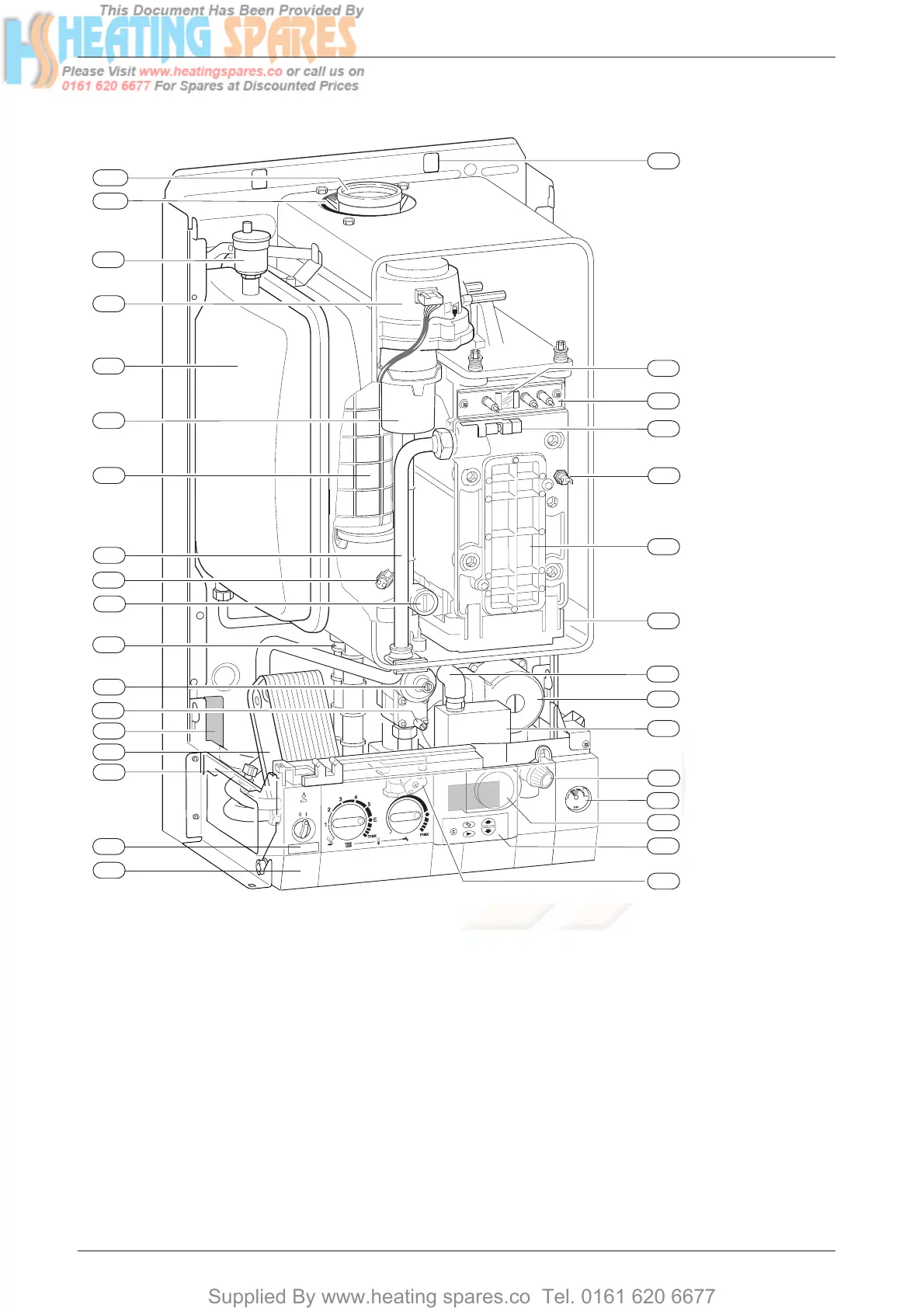

Layout of Appliance
1 Layout of Appliance
Fig. 1
4
Bosch Heatronic
6
Temperature limiter for heat exchanger
6.1
Hot water NTC sensor (combi boiler)
7
Testing point for gas supply pressure
8.1
Pressure gauge
9
Flue gas temperature limiter
15
Relief valve
18
Pump
20
Expansion vessel
27
Automatic air vent
29
Air gas Mixer unit
32.1
Electrode assembly
36
Temperature sensor in CH flow
43
CH flow
63
Adjustable gas flow restrictor
64
Adjusting screw for min. gas inlet flow volume
88
3-way valve
98
DHW flow switch (combi)
102
Inspection window
120
Fixing points
221.1
Flue duct
221.2
Combustion air intake
226
Fan
271
Flue duct
295
Appliance type sticker
355
Plate-type domestic hot water heat exchanger (combi boiler)
358
Condensate trap
396
Condensation trap hose
400
Text display
415
Cover plate for cleaning access
416
Condensate collector
418
Data plate
423
Siphon
7 181 465 347-02.2O
29
98
102
226
271
416
20
43
9
63
358
64
7
355
6.1
4
415
6
36
32.1
295
8.1
18
27
88
15
120
418
400
396
423
221.2
2
221.1
