GENERAL SAFETY RULES
WARNING. Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
b. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
WARNING: To prevent gear damage, always
allow the chuck to come to a complete stop before
changing the direction of rotation or the two-speed
gear control.
reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on
the switch or energising power tools that have the
switch on invites accidents.
d. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
e. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
b. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool acciden-
tally.
d. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.

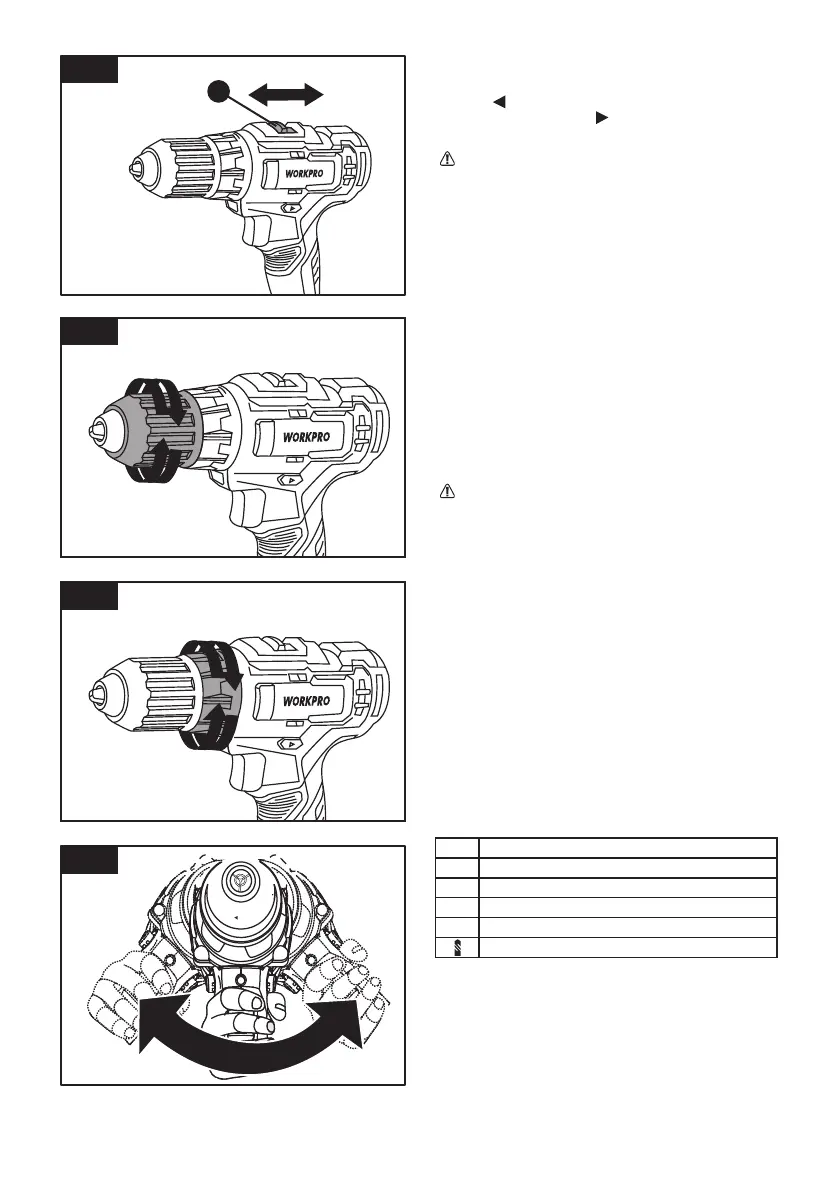

4. Two-speed Gear Control (
Fig.
D)
The drill has a two-speed gear control designed for
drilling or driving at LOW (mark is 1) or HIGH (mark is 2)
speeds. A slide switch is located on top of the drill to
select either LOW or HIGH speed. When using the drill
in the LOW speed range, the speed will decrease and
the drill will have greater power and torque. When using
the drill in the HIGH speed range, the speed will
increase and the drill will have less power and torque.
Gear I
Low speed range: for screw driving or working with
large drilling diameter.
Gear II
High speed range: for working with small drilling
diameter.
5. Chuck Adjustment (Fig. E)
To open the chuck jaws rotate the front section of the
chuck. Insert the drill bit between the chuck jaws and
rotate the front section in the opposite direction. Ensure
the drill bit is in the center of the chuck jaws. Finally,
firmly rotate the front chuck section in the opposite
directions. Your drill bit is now clamped in the chuck.
6. Torque Adjustment (Fig. F)
(Screw driving
force of your drill driver)The torque is
adjusted by rotating the torque adjustment ring. The
torque is greater when the torque adjustment ring is set
on a higher setting. The torque is less when the torque
adjustment ring is set on a lower setting.
Make the setting as follows:
7. Automatic Spindle Lock (Fig. G)
The automatic spindle lock allows you to use it as a
regular screwdriver. You can give an extra twist to
firmly tighten a screw, loosen a very tight screw or
continue working when the battery energy has expired.
For manual screwdriver purposes, the chuck is
automatically locked when the tool is off.
1-4
5-9
10-13
14-16
17-18
For driving small screws
For driving screws into soft material
For driving screws into soft and hard material
For driving screws into hard wood
For heavy drilling
For driving larger screws
WARNING: Never change the direction of
rotation when the chuck is rotating, wait until it
has stopped!
18
16
14
12
R
E
L
E
A
S
E
G
R
I
P
3
/
8
”
(
1
0
m
m
)
3
Fig. D
Fig. F
Fig.G
Fig. E
18
16
14
12
18
16
14
12
3. Reversible (Fig. C1, C2)
For drilling and screw driving use forward rotation (4)
marked “ ” (lever is moved to the left). Only use
reverse rotation marked “ ” (lever is moved to the
right) to remove screws or release a jammed drill bit.
9
