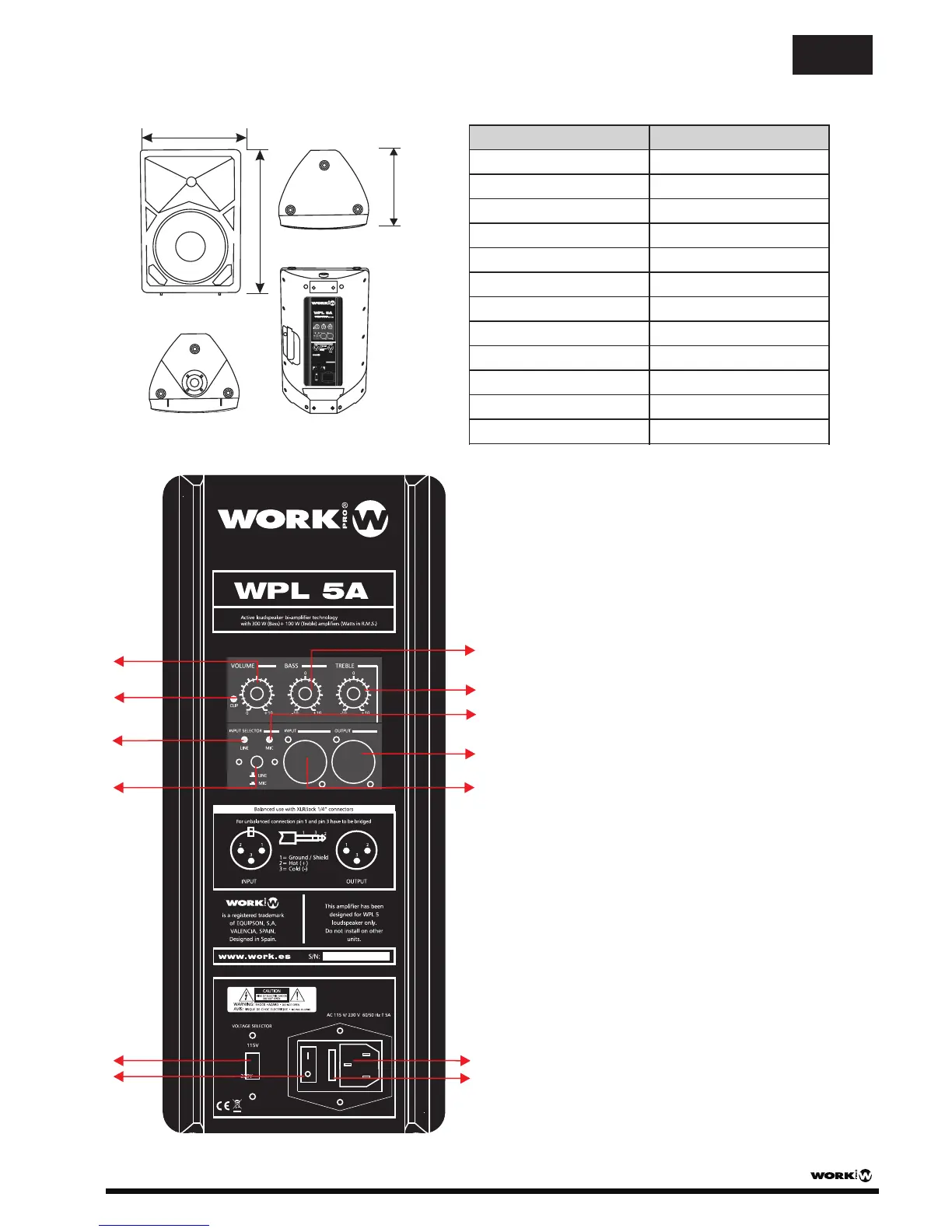

TECHNICAL DATA
Description:
Elements:
Power Output:
Frequency Resp. (-3 dB):
Dispersion (H x V):
Max. S.P.L.:
Connectors:
Insertion:
Dimensions (WxHxD):
Weight:
WPL 5 A
40 Hz - 20 kHz
90º x 50º
126 dB
35 mm.
480 x 695 x 420 mm.
32 Kg.
WPL 5A
480mm
695mm
420mm
WPL Series (Passive) User Manual/Manual de Instrucciones Pag 4
EN
1. Volume Control.
2. Clip Indicator.
3. Bass Control (+/- 10 dB 100 Hz).
4. Treble Control (+/- 10 dB 10 kHz).
5. LINE input signal presence indicator.
6. MIC input signal presence indicator.
7. LINE/MIC selector.
8. LINE/MIC output (XLR3 connector).
9. LINE/MIC input (Combi connector).
10. Power supply input. (Make sure that
the voltage selector is set for the correct
voltage).
11. 115 V/230 V Voltage input selector.
12. Protection fuse. Use only fuses of the
correct amp rating.
13. Power ON/OFF switch
DESCRIPTION
Input Impedance:
Sensitivity:
1x15"(Bass)+1x mm driverØ44
10 k? (MIC), 20 k? (LINE)
1,15V (+3.4 dBu)
2 way powered loudspeaker
1xCombi + XLR3 male (bal.)
1
2
11
13
5
7
12
3
4
6
8
9
10
300W(Bass)+100W(Treble)RMS
