Workshop Plus SmartBox 9 - Power Indication Comparison; Charging the Smart Box9; How to Jump Start a 12 V Car

Power indication
comparison
table:
C.
Turning
the
Smart
Box9
on
and
checking
for
power
1
.
Press the
Switch
button
once
and check the
power
lights
are
illuminated
2.
to
activate
the
LED
light,
press
and
hold
down
the
switch
button
for
three seconds
The
3
modes
of
LED will
appear
in
the
following
sequence
Continual,
slow
flashing,
strobe,
red/blue
flashing,
off.
3.
This
Smart
Box9
has
an
intelligent
shutdown,
when there is
no
connectivity,
it
will
shutdown
automatically
after
20
seconds
to
conserve
power.
4
Check
the
lights
for
the
remaining
power
When
4
lights
are
on,
power
=
75-100%
When
3
lights
are
on,
power
=
50-75%
When
2
lights
are
on,
power
=
25-50%
When
1
light
is
on,
power
=
10-25%
If
no
lights
are
on,
power
=
0%
When
charging,
the
lights
will
flash
to
indicate how much
charge
the
Smart
Box9
has taken
When the
1st
light
flashes,
the
power
is under
25%
When the
2nd
light
flashes,
the
power
is between
25-50%
When the
3rd
light
flashes,
the
power
is between
50-75%
When the
4th
light
flashes,
the
power
is
between
75-100%
When all
4
lights
are
on
the unit is
fully
charged.
Pcwerincfcatcr
lights
OOOO OOOO
•ooo ••oo
•
••O
• •••
Ccrespondng
powr
0% 10%
<25% 50%
75%
100%
OOff OflashO
on
D.

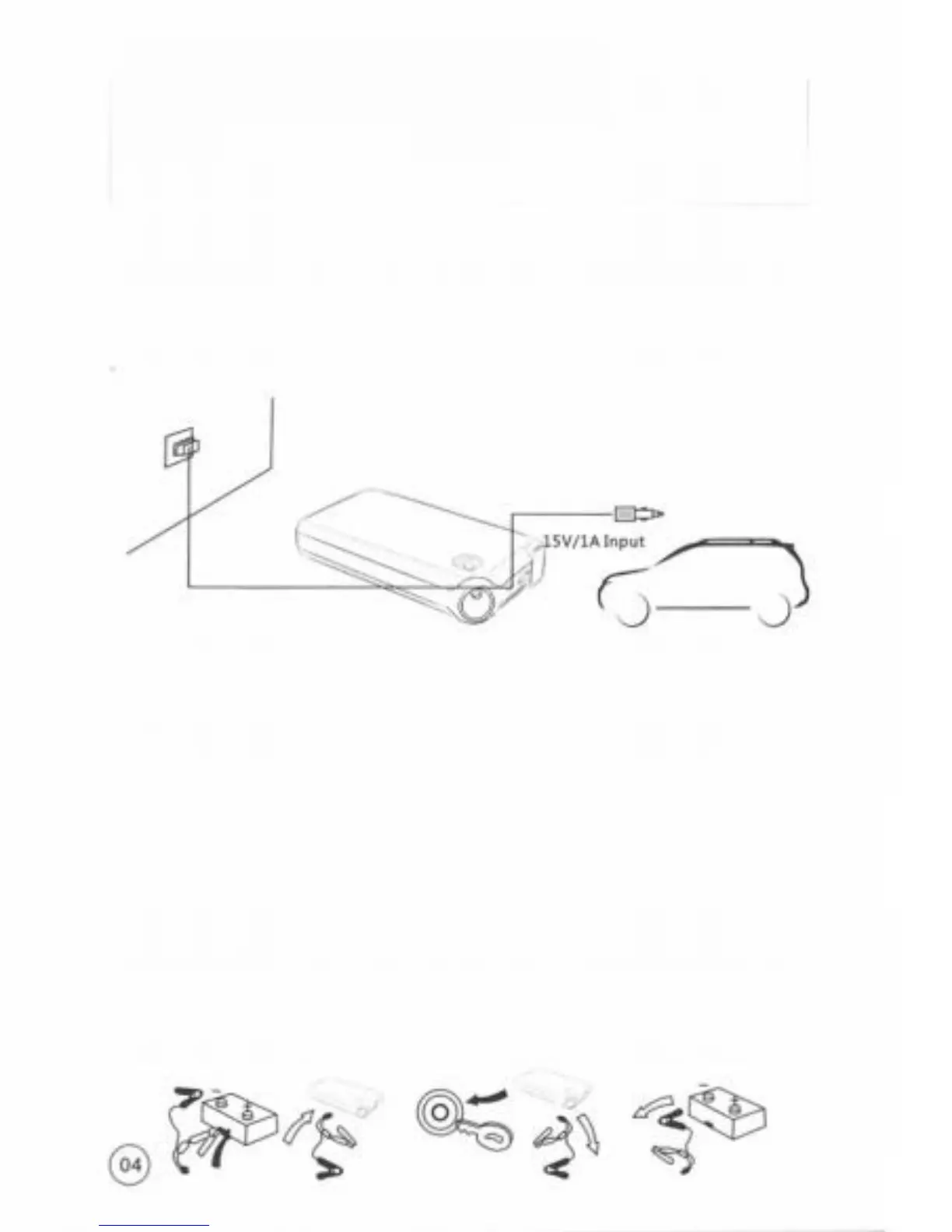

Charging
the
Smart
Box9
Please
use
the home
charger
or car
charger
to
charge
the
Smart
Box9.
When
all
4
lights
are on
the unit is
fully
charged.
Please
disconnect the unit
to
save
the
power.
E.
How
to
jump
start
a
12v
car
1
.
Turn the
Smart
Box9
on
and check
that the unit is
at
least
75%
charged
i.e
3
or
4
lights
are
on.
2.
Connect
the
battery
clamps
to
the
car
battery.
Red
battery
clamp
tc
the
positive
terminal
and
the black
battery
clamp
to
the
negative
terminal
3.
Insert the
plug
of
the
battery
clamps
into the
Smart
Box9
4.
Start
the
car
with
the
ignition key.
5.
The
car
should
start
first
time,
once
the
engine
is
running
disconnect
the
plug
from
the
Smart
Box9
within
15
seconds
6.
Remove the
clamps
from
the
battery
