Assembly
ASSEMBLY
NOTE: You must fully assemble the appliance before using it for the
first time!
NOTE: At temperatures below +5°C, sluggishness may make starting
difficult .
Connecting the compressed air hose, air gun with pressure
gauge & hose with valve adapter/connector
WARNING! Ensure the air compressor is switched off and
disconnected from the mains power supply before undertaking
any assembly.

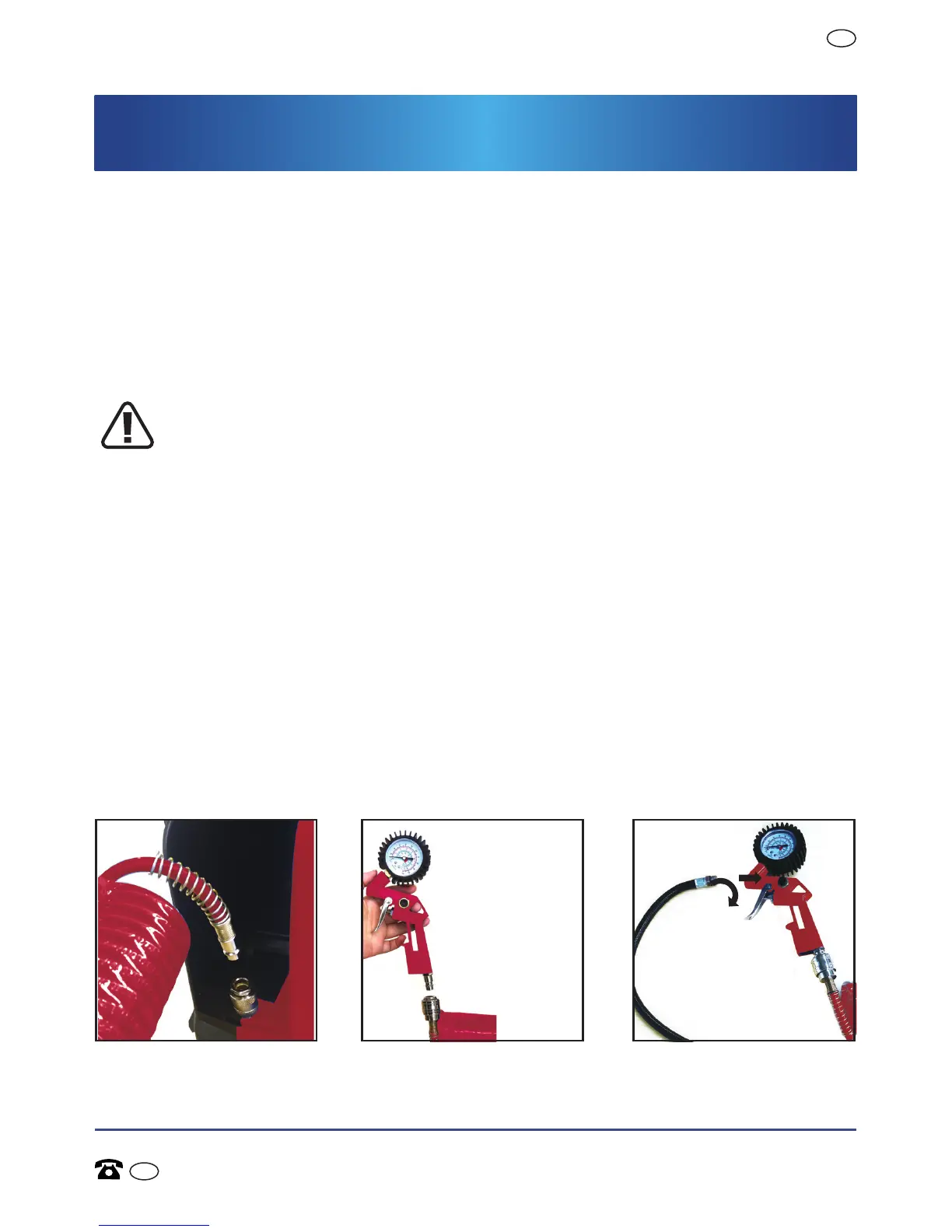

1. Insert the smaller fitting on the end of the compressed air hose (9)
into the quick -lock coupling (5) on the air compressor. (Fig.A) The
connection is secure when you hear a click.
2. Connect the air gun with pressure gauge (6) to the opposite end of
the compressed air hose (9), (Fig. B) by inserting the air gun inlet
connection (21) into the coupling. The connection is secure when you
hear a click.
3. Screw the hose with valve adaptor/connector (10) in a clockwise
direction to connect to the air gun with pressure gauge (6). (Fig. C)
NOTE: A 14mm spanner (not supplied) can further secure the
connection.
B
C
1
2
A
