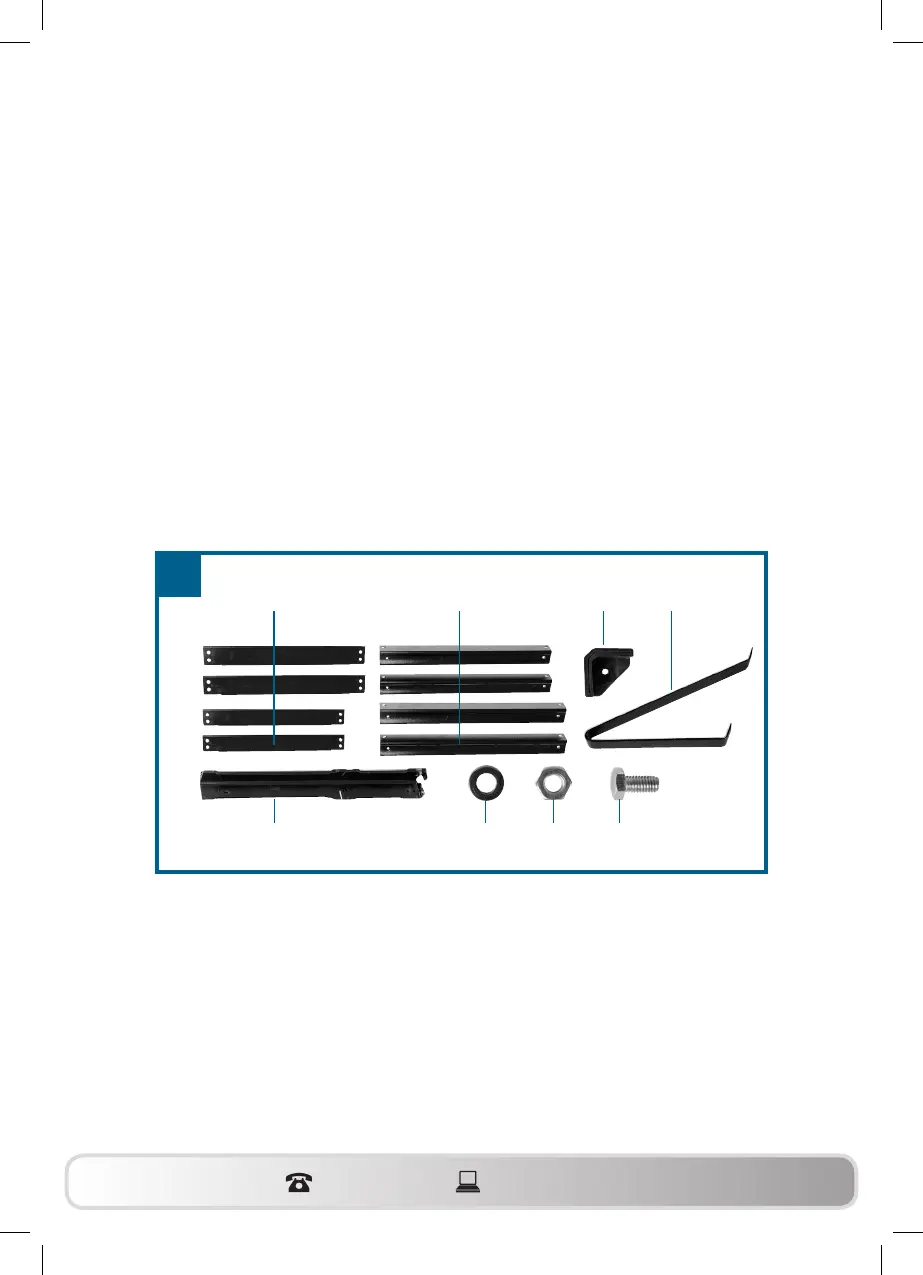

5.1 Assembling the base frame (Fig. 4-9)
• Turn the saw upside down and place it on the floor.
• Use hex screws (c) and washers (a) to fasten the four legs (18) loosely
to the saw (Fig. 5).
• Now loosely screw the longitudinal and cross struts (19) as well as the
four center struts (20) to the legs using the hex screws (c), washers (a)
and nuts (b) (Fig. 6-7)
Important: The longer struts have to be used on the sides.
• Now mount the four rubber feet (21) on the legs (18) (Fig. 8).
• Screw the stability bars (22) to the bore holes on the rear legs (18)
using 2 hex screws (c), washers (a) and nuts (b) on each side. (Fig. 8)
Important! Both stability bars must be fastened to the back of
the equipment!
• Finally, tighten all screws and nuts on the base frame.
4
19
18
20 21 22
a b c
