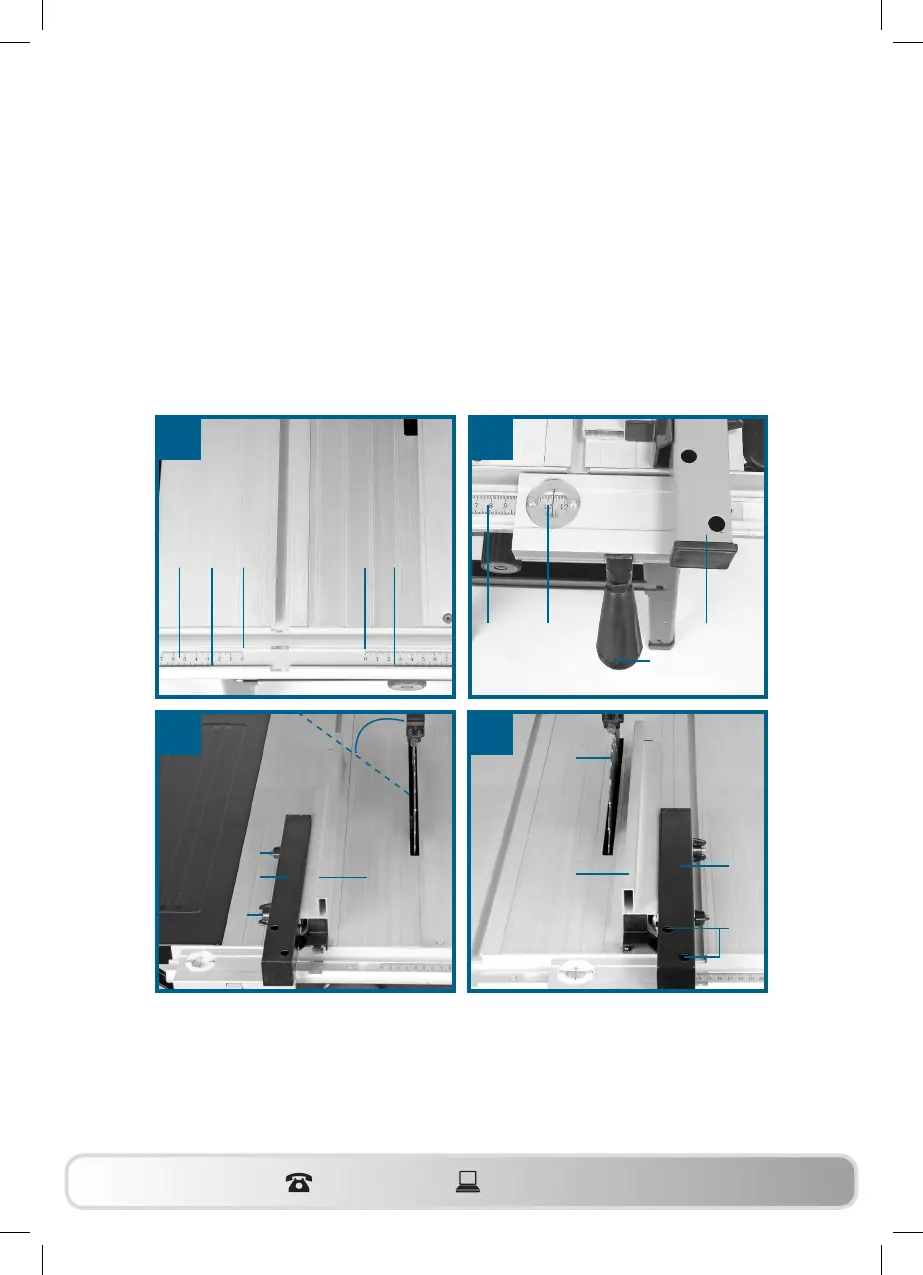

6.5 Adjusting the parallel stop (Fig. 30)
• Set the saw blade to the maximum cutting depth (refer to point 6.2).
• Set the parallel stop (7) so that the stop rail (e) touches the saw blade
(5) (setting for thick material refer to point 6.4).
• If the parallel stop (7) is not in line with the saw blade (5), undo the
screws (m) with an Allen key or similar until the parallel stop (7) can
be adjusted parallel with the saw blade (5) (Fig. 30).
• Re-tighten the screws (m).
27
29 30
12 jk kj
f
7
e
f
45°
5
m
7
e
28
12
28
l 7
