World Class Catamarans
5-10

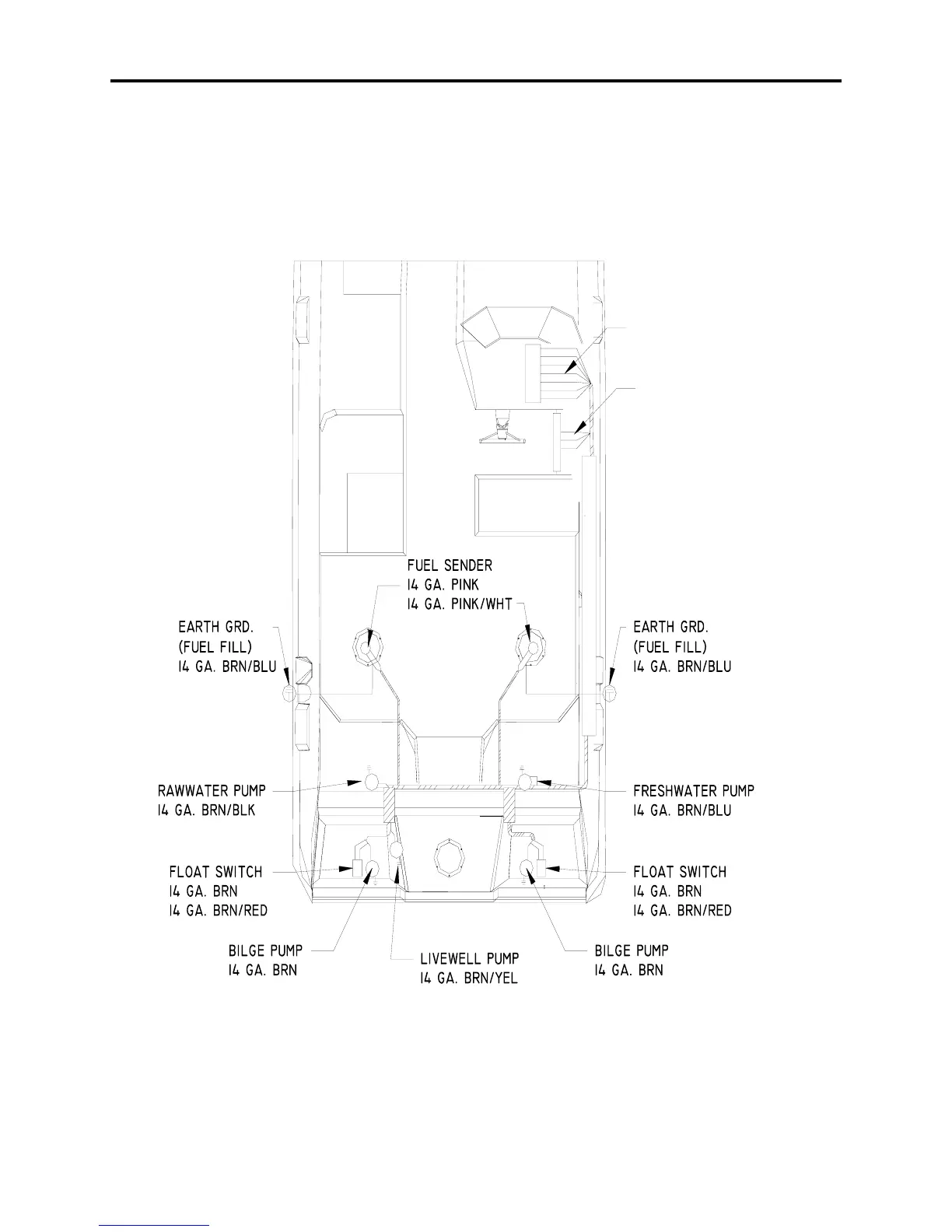

HULL WIRING DIAGRAM
TO TERMINAL STRIP
(BEHIND DASH)
TO BATT. MANAGEMENT
PANEL
14 GA. BRN/RED (PORT FLOAT)
14 GA. BRN/RED (STBD. FLOAT)
14 GA. YELLOW (MEMORY)
