Worlde EASYCONTROL User Manual

5. Bank LEDs
The LED of the selected bank will light up.
6. USB connector
Connect the EASYCONTROL to your computer with a USB cable via this port.

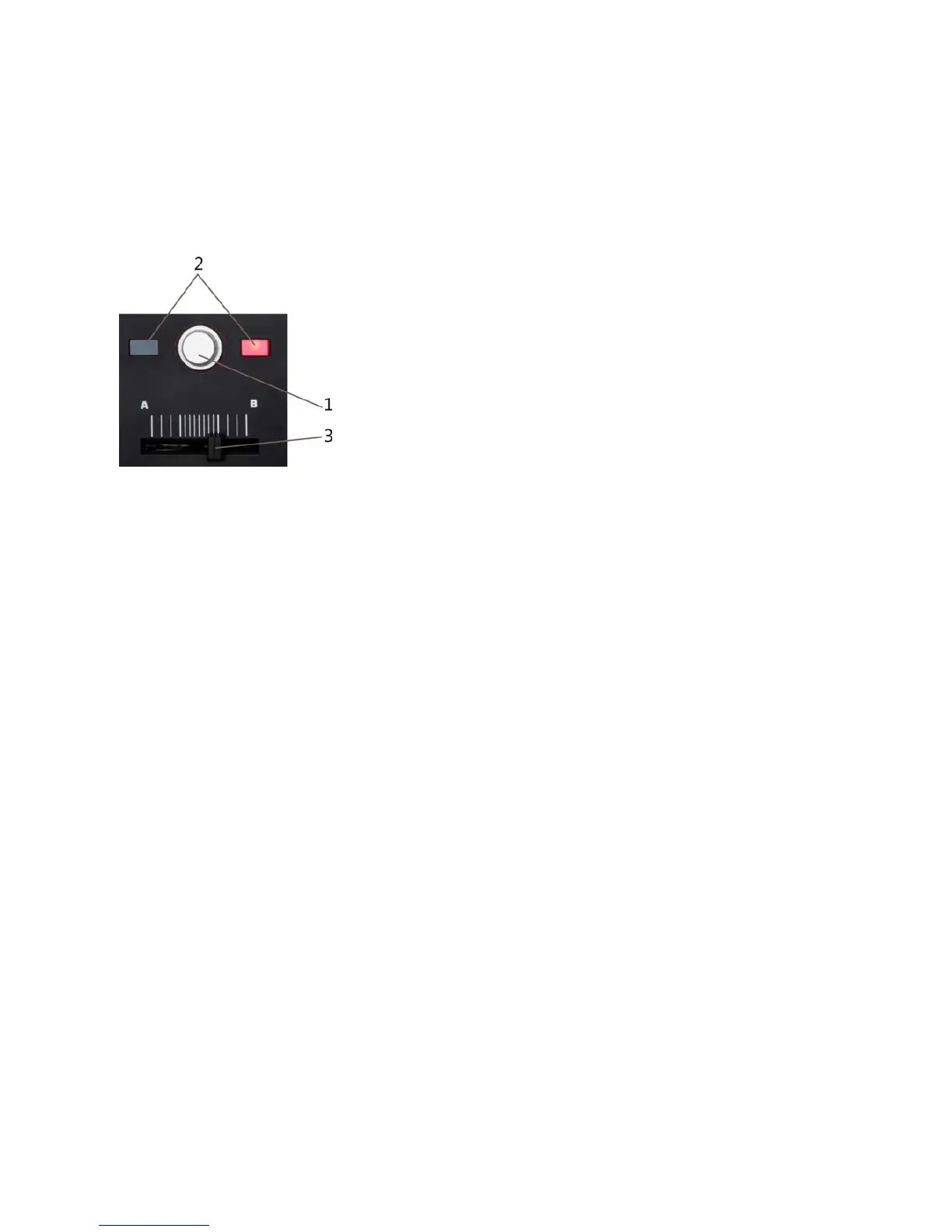

7.Settled controller
1:the knob for adjusting the program change. It can’t be edited.
2:buttons used to send settled control message(controller number:64/67), it’s not editable for
these two buttons.
3:the slider is only for adjusting the master volume, it can’t be edited.
Setup
Operating requirements
Apple Macintosh computer: computer with an Intel or PowerPC processor that has a USB port
and satisfies the requirements for running Mac OS X.
Operating system: Mac OS X 10.3.9, Mac OS X 10.4.7 or later.
Windows Computer: Computer that has a USB port and satisfied the requirements for running
Microsoft Windows7/XP/Vista (a USB chipset made by the Intel Corporation is recommended).
Operating system: Microsoft Windows XP SP2 or later, or Microsoft Windows Vista SP1.
Connections and power: Connect the EASYCONTROL to your computer with a USB cable.

Worlde EASYCONTROL Specifications

Power

power supply	USB bus power mode
current consumption	100 mA or less

Ports & interfaces

connectors	USB connector (mini B type)

Weight and Dimensions

width	13.4 inches / 340 mm
depth	3.9 inches / 100 mm
height	0.8 inches / 20 mm
weight	14 oz / 445 g
