Worx WX530 Safety And Operating Manual

11

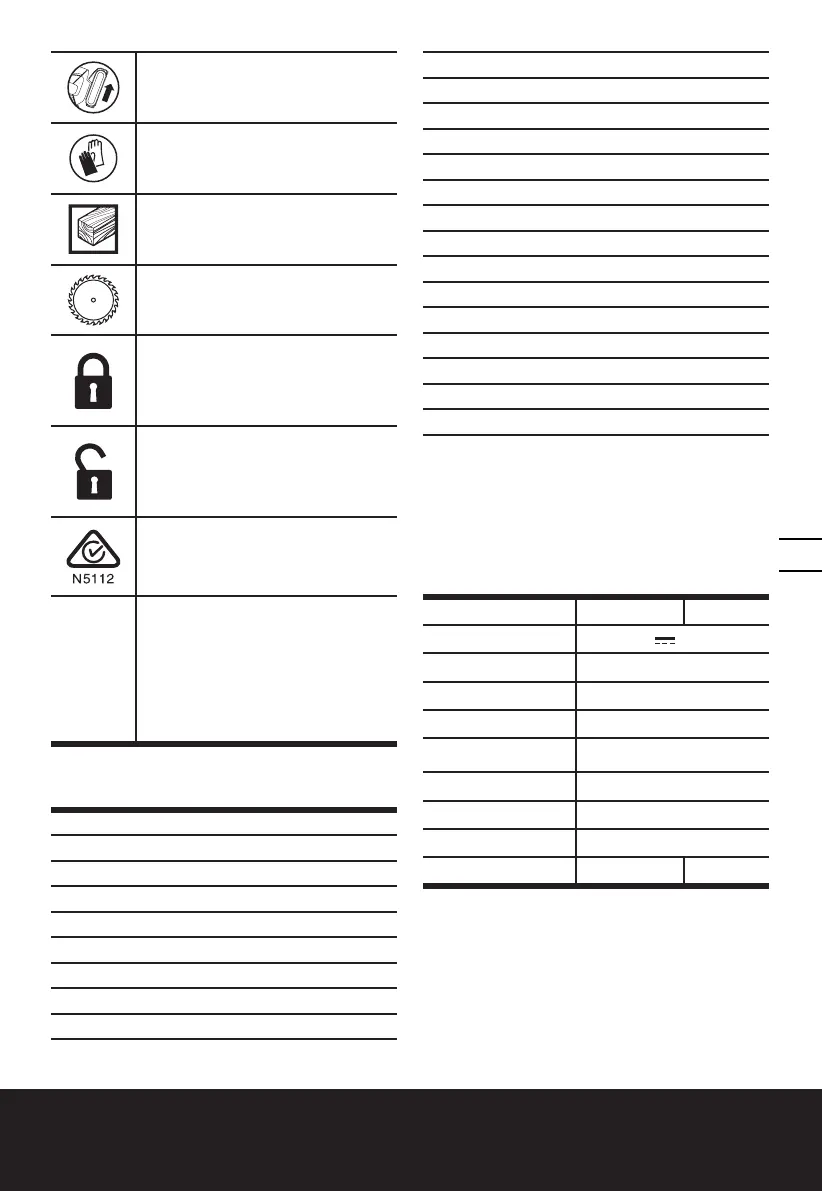

Cordless Circular Saw WX530 WX530.9
Make sure the battery is removed
prior to changing accessories or
making any adjustments to the tool.
Wear protective gloves
Wood
Carbide tipped blade
Lock
Unlock
RCM marking
ABN: Australian Business Number.
By this number, business informa-
tion such as entity type, status,
business location etc. can be found
at website http://abr.business.gov.
au.
ABN of Positec Australia Pty Limited
is 14 101 682 357
1. SAFETY BUTTON
2. ON/OFF SWITCH
3. FRONT HAND GRIP
4. CUTTING MARK, 0°
5. CUTTING MARK,45°
6. MAIN-BASE PLATE
7. BASE PLATE BEVEL LOCK KNOB
8. BASE PLATE BEVEL ANGLE SCALE
9. HEX KEY
10. BATTERY PACK*
11. BATTERY PACK RELEASE BUTTON*
12. FIXED GUARD
13. DUST EXTRACTION OUTLET
14. LOWER GUARD LEVER
15. EXACTRACK
TM
SUB-BASE PLATE
16. SAW BLADE
17. OUTER FLANGE
18. BLADE BOLT
19. LOWER BLADE GUARD
20. SPINDLE
21. INNER FLANGE
22. CUTTING DEPTH SCALE (See Fig. C)
23. CUTTING DEPTH LOCK KNOB (See Fig. C)
24. SWITCH LEVER (See Fig. C)
*Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type Designation WX530 WX530.9
(5-designation of machinery, representative of
saw)
WX530 WX530.9
Rated voltage 20 V
Max**
No load (rated) speed 4900/min
Blade size 165 mm
Arbor size 16 mm
Cutting capacity
Cutting Depth at 45°
39 mm
Cutting Depth at 90° 55 mm
Bevel capacity 0-50
0
Machine weight 2.7 kg 2.3 kg
**Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.

Worx WX530 Specifications

General

Brand	Worx
Model	WX530
Category	Cordless Saw
Language	English
