5. BELT CENTERING CONTROL (See Fig. D)
WARNING! Wear eye protection before
carrying out a belt centering adjustment.
Turn the machine upside down, hold it firmly with
one hand, start the motor and release the switch
immediately after observing tracking of sanding belt.
If abrasive belt runs outward, turn tracking adjustment
knob (9) counter-clockwise and clockwise if belt runs
inward. Adjust the belt until the outer edge of the belt
is even with the outer edge of the base-plate (12). Belt
life will be greatly increased by keeping the tracking
adjustment set properly.

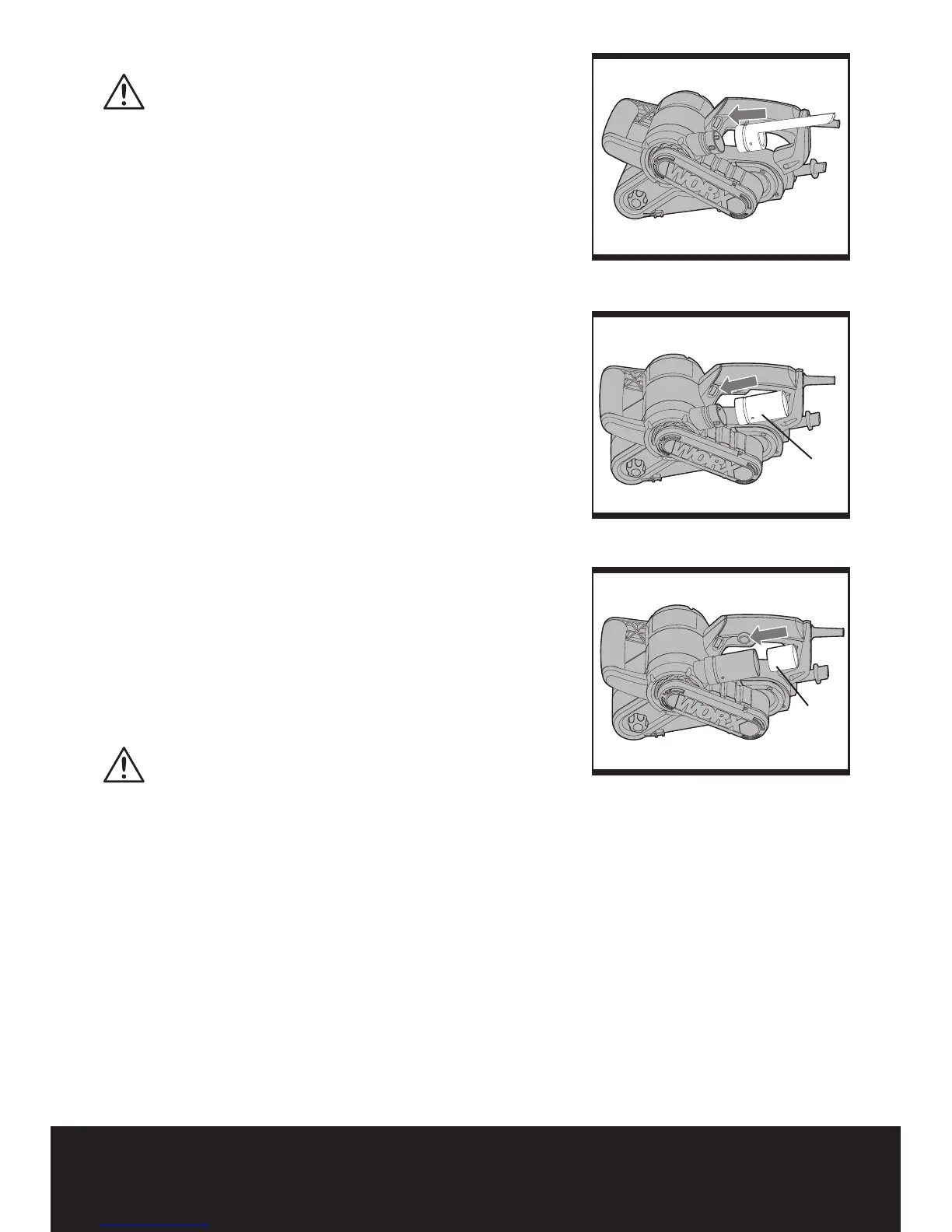

6. DUST BAG (See Fig. E)
You must use the dust collection bag provided to collect
the dust produced during sanding. To attach, insert the
dust collection bag into the dust extraction outlet. Make
sure the dots of the outlet are locked in the slot of the
dust bag. When the dust collection bag is full, remove
and empty by opening the zip on the dust bag (5).
7. ASSEMBLE THE DUST EXTRACTION
ADAPTER(See Fig. F, G)
Your sander is equipped with a dust extraction adapter,
which is designed for letting you attach a
wet/dry vac for collecting dust better . Insert the
suitable size adapter into the outlet until it is secured
Insert the 35mm adapter (13a) into the outlet until it
is secured (See Fig.F), then insert the 32 mm adapter
(13b) into the back of the 35 mm adapter (See Fig. G).
8. DRIVE BELT REPLACEMENT.
WARNING! Remove the main plug from
the socket before carrying out a drive belt
replacement.
Remove the two screws and the belt cover as shown.
Carefully cut the drive belt if not already broken and
remove from your belt sander. Fit your new drive belt
around the large pulley. Then install onto the small
pulley by rotating clockwise and pushing the drive belt
shown around the small pulley at the same time. The
drive belt will be a tight fit. Fit the belt cover and two
screws.
