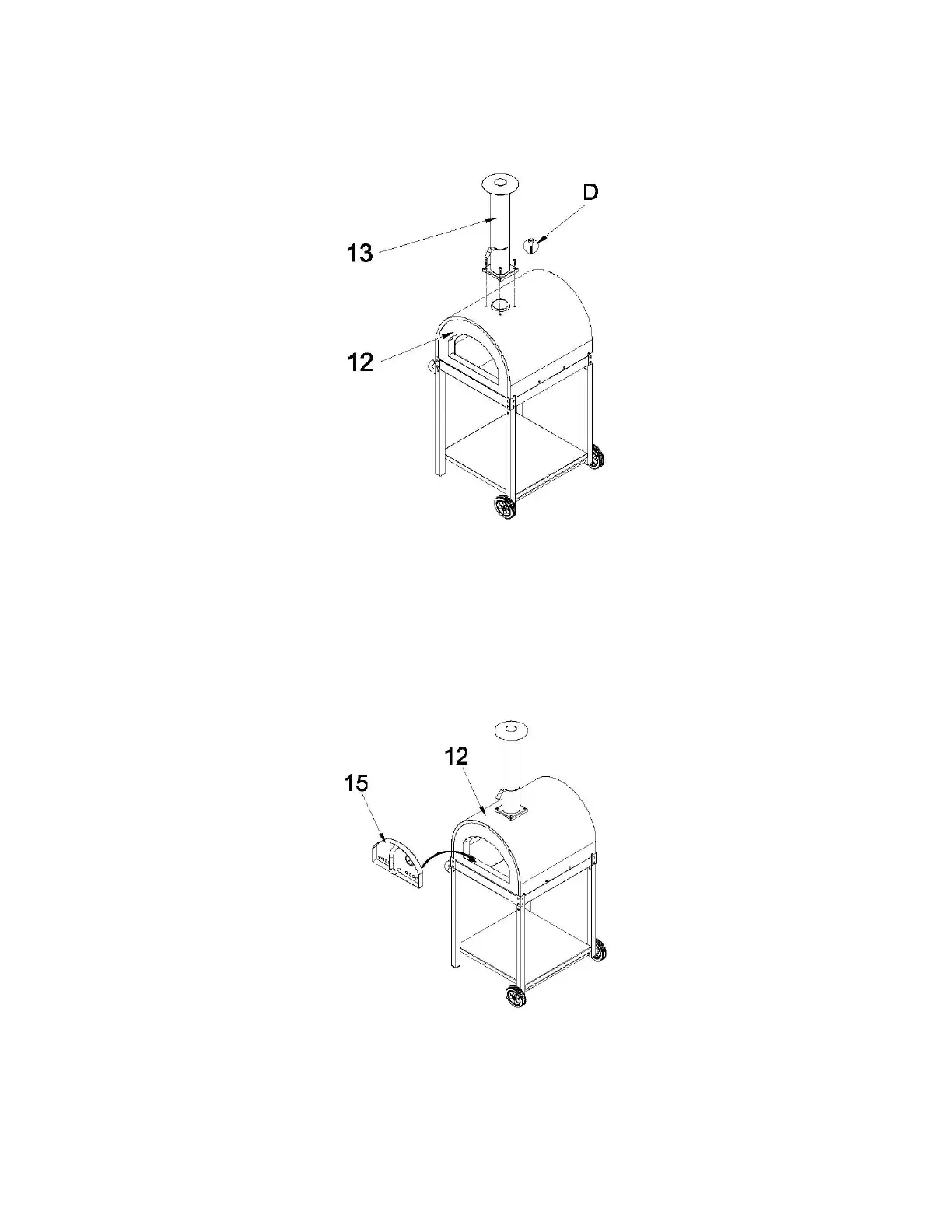

Step 7
Place and fasten the Chimney assembly (13) onto firebox assembly (12) with four M6*38 screws (C)
tighten by hand.
Step 8
Slide the Door assembly (15) into the corresponding position (Front door opening) of the firebox
assembly (12).
