WPPO Operator’s Manual for the WPPO3/KU-17W, November 2018

November 2018

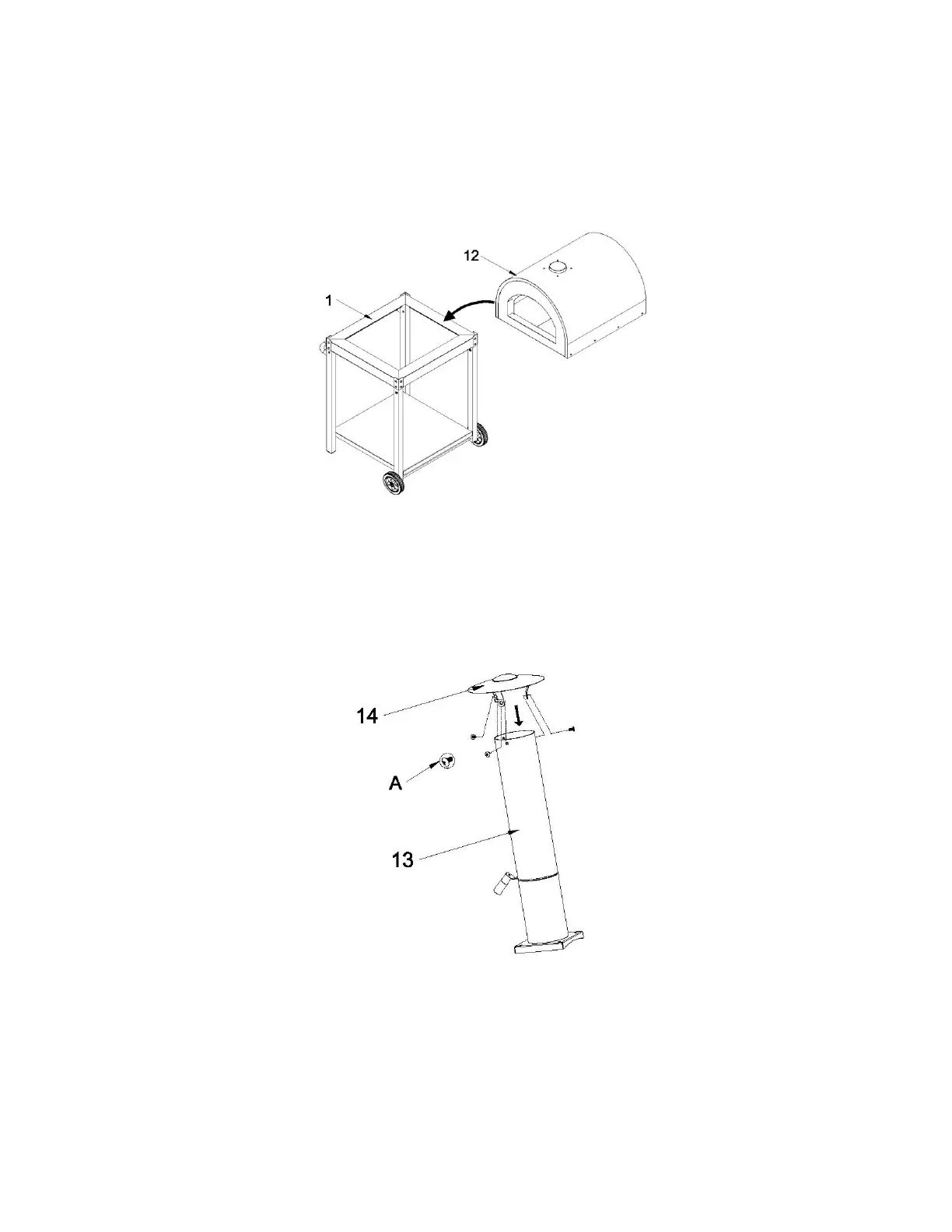

Step 5

The Firebox assembly (12) is lifted and placed onto the corresponding position of the frame roof (1).

Step 6

Affix the Chimney cover (14) onto the Chimney assembly (13) with three M6*12 screws (A) tighten by

hand.
