WPPO Operator’s Manual for the WPPO3/KU-17W, November 2018
November 2018

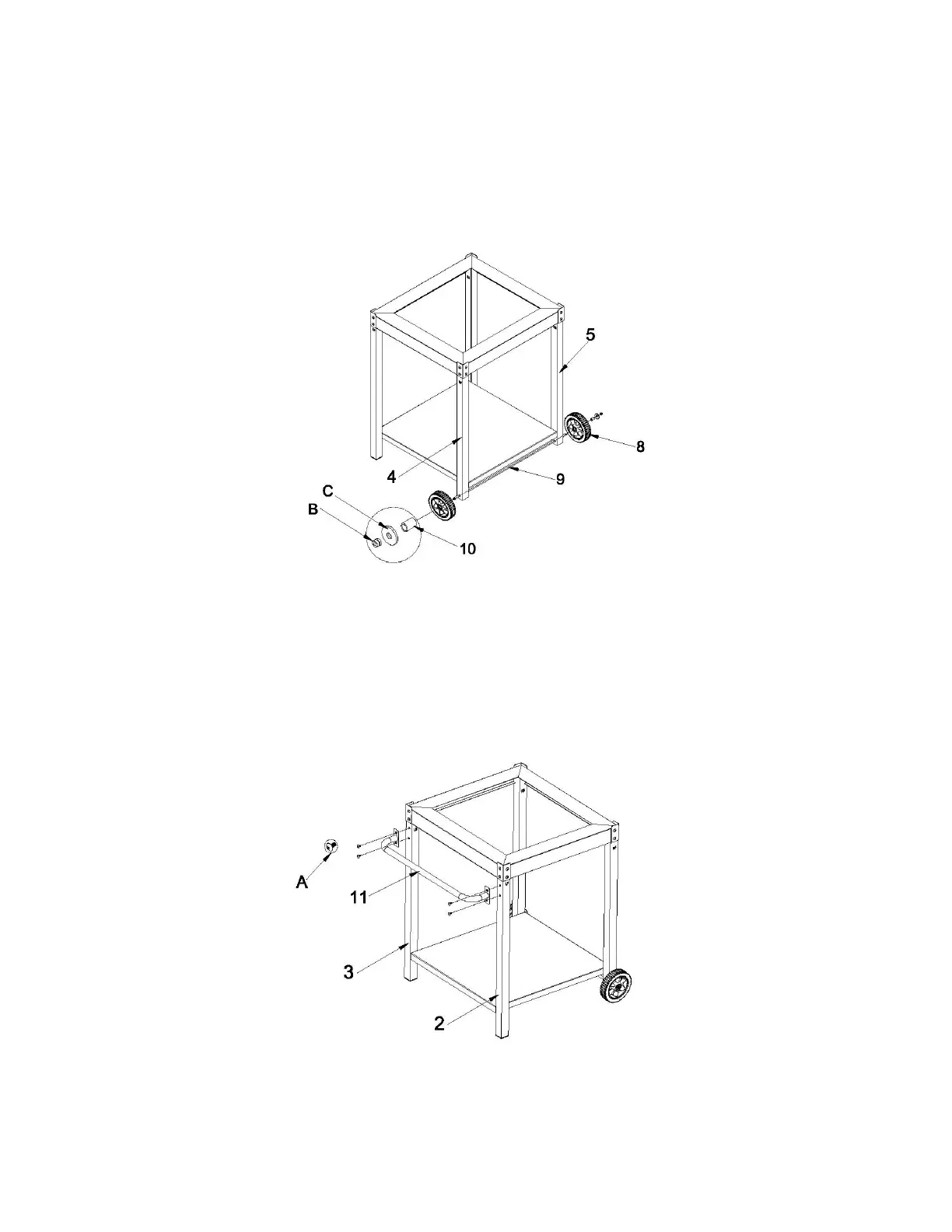

Step 3
Slide the Axle (9) through the wheel legs (4 and 5), slide a Wheel (8) and Sleeve (10) and Flat washer
(C) onto axle end, Thread two M6 lock nuts (B) onto each long end and tighten with a wrench. The
wheel should spin, but not wobble.
Step 4
Slide the Side handle (11) onto Left front leg (2) and left back leg (3,) with four M6*12 screws (A)
tighten by hand.
